Rohde & Schwarz UART/RS232/RS422/RS485 Serial Triggering and Decoding Oscilloscope Software for RTC3000 RTM-K2

Rohde & Schwarz RTM-K2 is a serial triggering and decoding Oscilloscope Software designed exclusively for the RTC3000 series oscilloscopes. This software requires interfacing with UART/RS-232/RS-422/RS-485 serial buses to enable advanced serial data analysis capabilities.

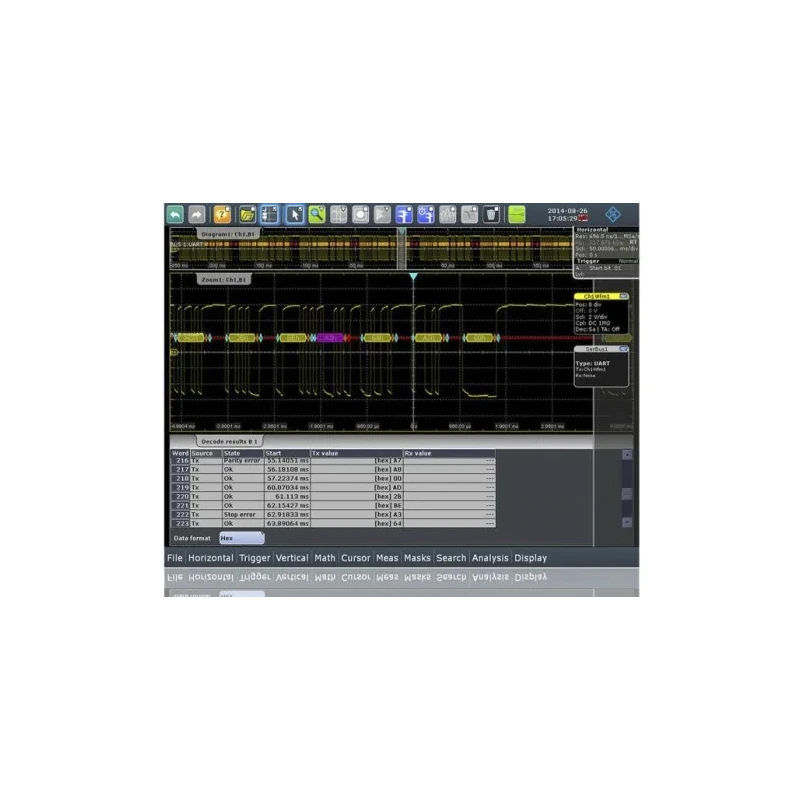

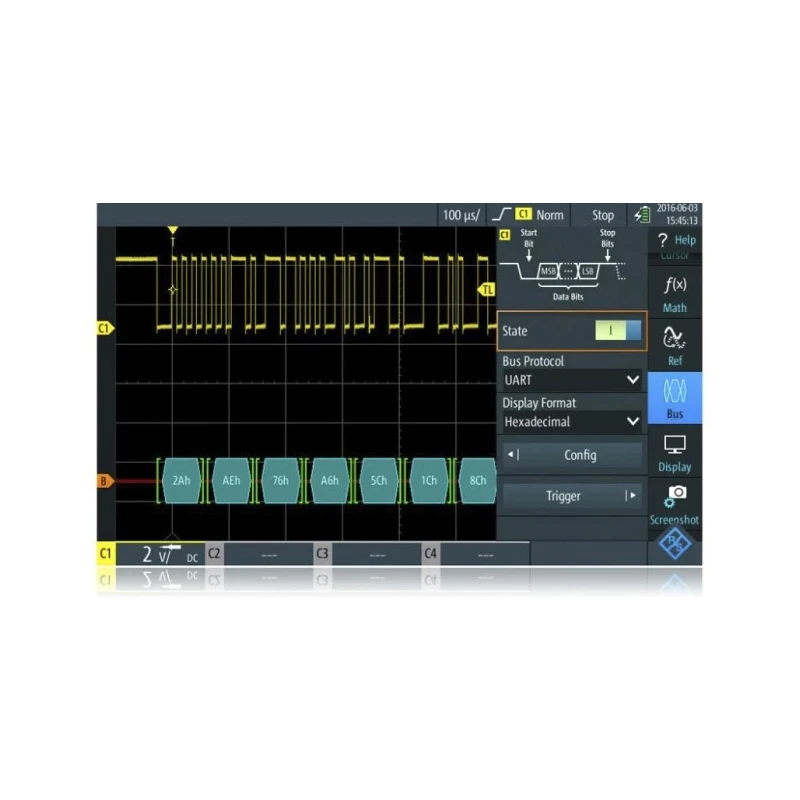

The RTM-K2 software provides a fast and intuitive bus setup process, allowing engineers and technicians to configure serial communication buses within seconds. It features a colour-coded telegram display to visually separate and identify serial data elements, facilitating quick interpretation of complex signals.

It supports decoding simultaneous data on up to four serial buses, utilizing either analogue or digital channel signals, enabling comprehensive multi-bus analysis.

The UART and RS-232/RS-422/RS-485 buses are fully supported with standard mask test functionality, providing users with the ability to apply standardized criteria for signal integrity and testing compliance.

Applications for the RTM-K2 software include scientific research, engineering development, medical device testing, automotive diagnostics, telecommunications, and general-purpose laboratory measurements. It enhances oscilloscope functionality to meet the demanding requirements of serial communication analysis in industrial and commercial environments.

Quick bus setup within seconds for efficient testing. Colour-coded telegram display for ease of data visualization. Simultaneous decoding of up to four serial buses from analogue or digital channels. Standard mask test functions for UART and RS-232/RS-422/RS-485 buses.

This software is engineered to complement the RTC3000 oscilloscope, providing a specialized toolset for serial communication troubleshooting and validation in industrial, laboratory, and field environments.
