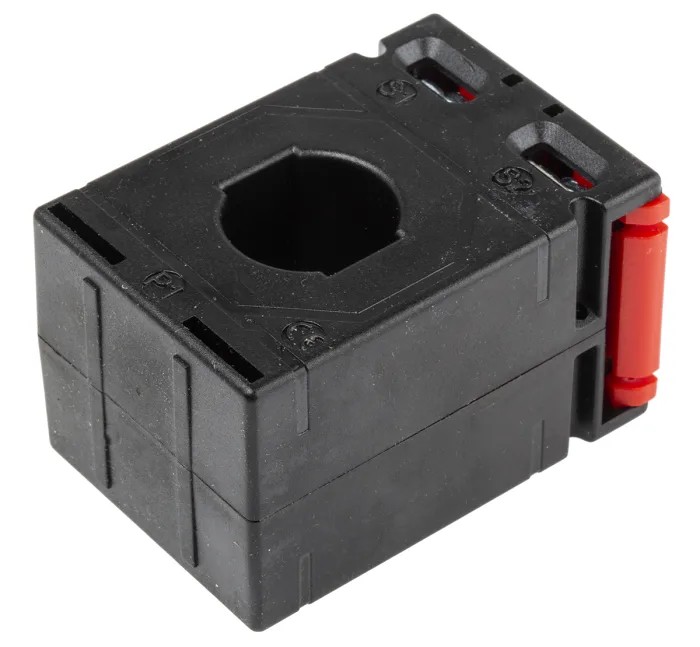

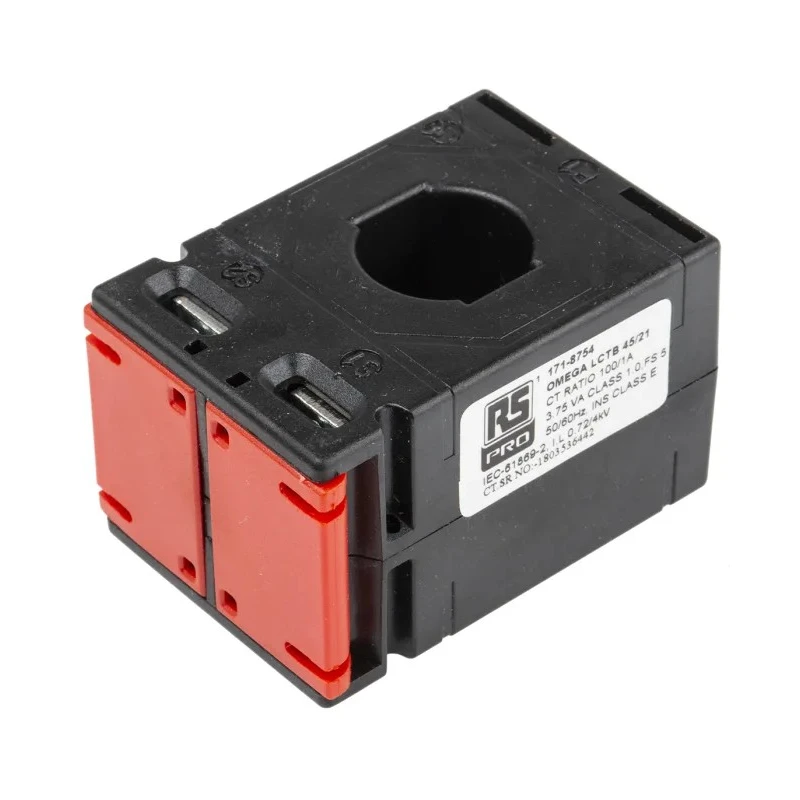

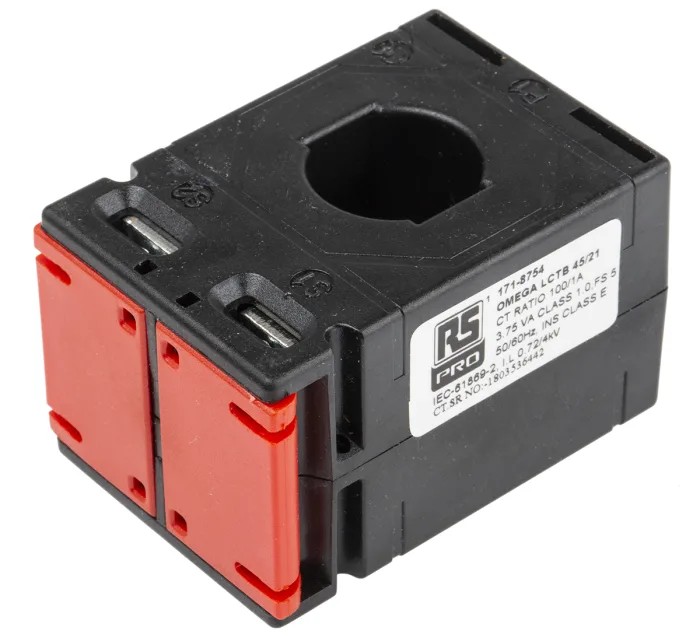

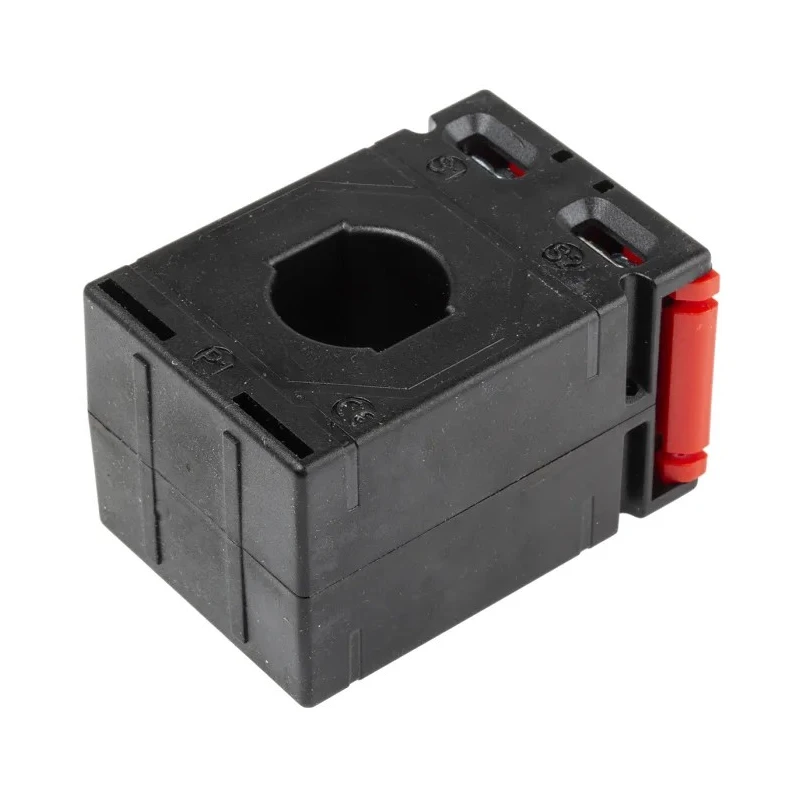

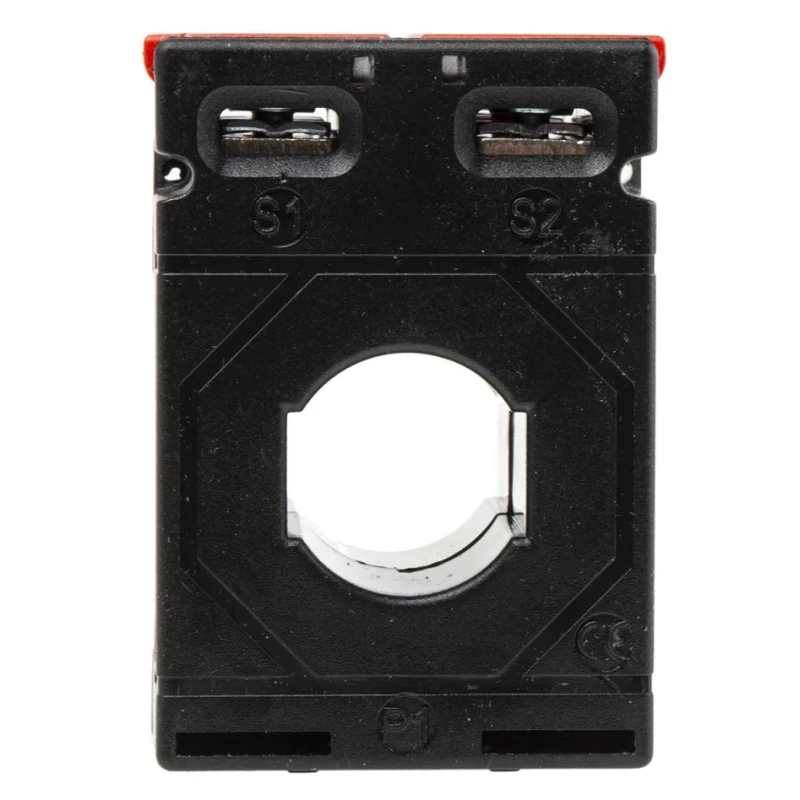

RS PRO Current Transformer 7500 A 21mm Bore Wire Terminal 50-60Hz 40mm Depth 45mm Width 171-8754
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 171-8754 |
| Depth | 40mm |
| Width | 45mm |
| Mount Type | Cable, Wall, Busbar |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -5°C |
| Bore Diameter | 21mm |
| Secondary current | 5A |
| Terminal type | Wire |
| Primary Current | 7500A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Siemens SENTRON Series Current Transformer 100 A 100 | 1 2.5 VABrand: Siemens |
| Alttec L01 Series Base Mounted Current Transformer, 100 | 1, 21.5mm BoreBrand: Alttec |
Key Features
- Encapsulated square-type current transformer with polycarbonate molding.
- Seal terminal covers provide secure, reliable connections.
- Operates over a temperature range from -5°C to 55°C with 50Hz to 60Hz frequency.
- Mounting options include cable, wall, and busbar installations.
- Complies with UL94V-0, IEC 60044-1, IEC 61010-2, and IEC 61869-1 standards.
- Suitable for metering and process control applications in industrial automation.
- Manufactured in India, ensuring quality assurance.
Product Description
RS PRO 171-8754 Current Transformer is a high-capacity metering CT suitable for industrial and process control applications. It supports a primary current of up to 7500 A and features a 21mm bore diameter to fit bus bars or cable installations.
This transformer has a wire terminal type for easy and secure connections, and its encapsulated polycarbonate square design ensures durability and electrical safety. The device operates within a temperature range of -5°C to 55°C and is rated for frequencies between 50Hz and 60Hz.
Mounting versatility is provided by options including cable, wall, and busbar types, making installation flexible in various industrial setups. Its compact physical dimensions, with a depth of 40mm and width of 45mm, allow for efficient panel space utilization.
The product is compliant with established international standards including UL94V-0, IEC 60044-1, IEC 61010-2, and IEC 61869-1, ensuring reliable performance and safety.
RS PRO’s current transformer encapsulated in a cost-effective molded case provides comprehensive class accuracy, suitable for varied industrial measurement and current monitoring needs.
Encapsulated square-type construction with sealable terminal covers. Primary current ratings from 5A to 7500A and secondary current of 5A. Over current limiting factors FS5, FS10, FS15 for protection. Rated continuous thermal current at 1.2 times in and short-time thermal current up to 60 times in for 1 second.
Isolation level rated at 0.72/3 kV or 0.72/4 kV provides electrical safety.
Manufactured in India, this transformer is ideal for industrial automation, HVAC control gear, manufacturing, and water treatment applications requiring reliable current measurement and protection.
Explore more precision Current Transformers and automation control gear in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a primary current rating of up to 7500 A, making it suitable for high-capacity applications.
The bore diameter of this current transformer is 21mm, allowing it to fit bus bars or cable installations.
It can be mounted using cable, wall, or busbar options, providing flexibility in installation.
The transformer operates within a temperature range of -5°C to 55°C, suitable for various industrial environments.
The secondary current rating is 5 A, which is standard for current transformers in metering applications.
It operates at frequencies between 50Hz and 60Hz, making it compatible with standard industrial systems.
It features an encapsulated polycarbonate square design, which ensures durability and electrical safety.
This model complies with UL94V-0, IEC 60044-1, IEC 61010-2, and IEC 61869-1 standards, ensuring reliable performance and safety.
The dimensions of this unit are 40mm in depth and 45mm in width, allowing for efficient use of panel space.
It features a wire terminal type for easy and secure connections during installation.
It is suitable for metering and process control applications in industrial automation, HVAC control gear, and water treatment.
