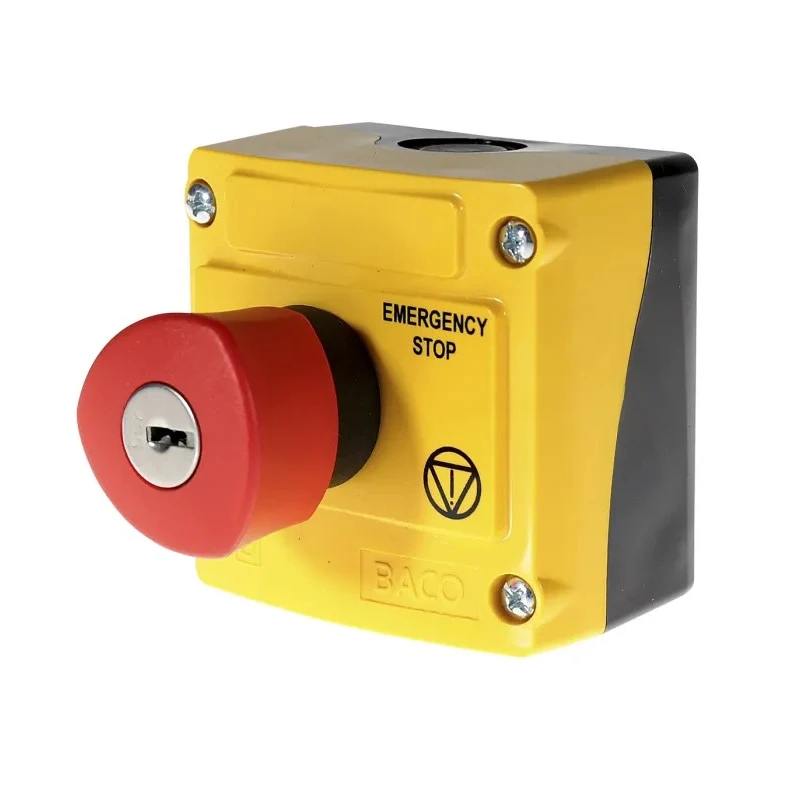

BACO LBX1 Series Key Release Emergency Stop Push Button Surface Mount, 22 mm Cutout, 2 NC Contacts, IP66

The BACO LBX1 Series Key Release Emergency Stop Push Button LBX11302 is a surface-mounted switch designed for rapid and secure emergency stopping in industrial machinery and automation systems. This unit features a 22 mm cutout diameter, making it compatible with standardized mounting panels.

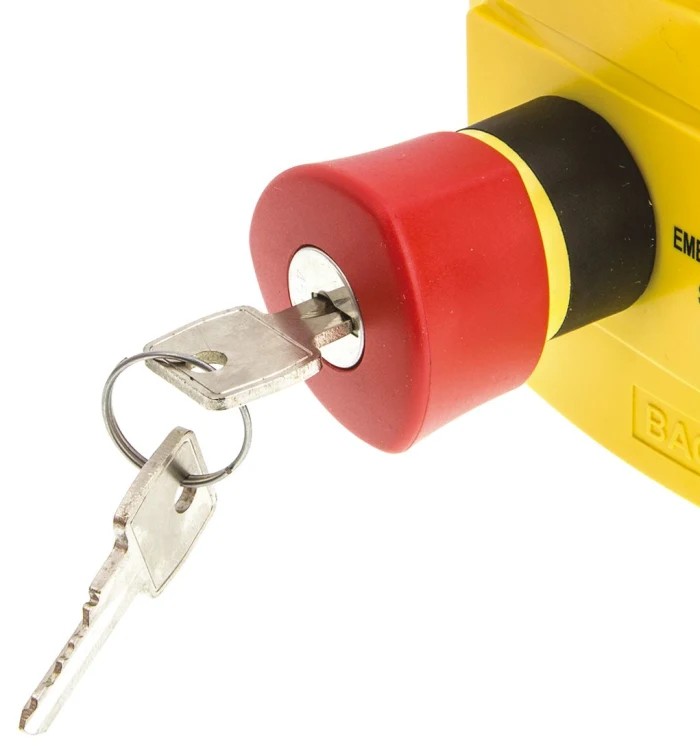

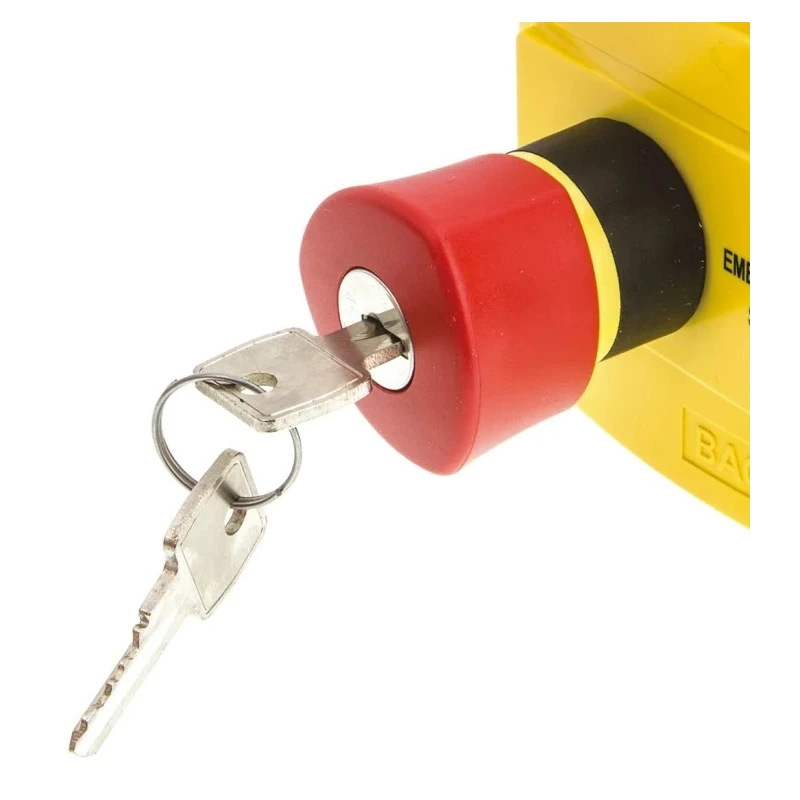

Its mushroom head, bright red push button is made from durable plastic materials, promoting visibility and ease of use during emergency situations. The key release mechanism uses the RONIS 455A key format, ensuring secure reset and control to prevent accidental restarts.

This emergency stop push button has two normally closed (NC) contacts, which interrupt the power or control circuit immediately upon actuation for maximum safety. The unit is rated IP66, offering dust-tight and strong water jet resistance, suitable for harsh industrial environments.

With dimensions of 74 mm width, 74 mm height, and 47.9 mm depth, plus a 54 mm head diameter, this switch fits diverse control panels with standard cutouts. The LBX1 Series complies with EN 418 and ISO 13850 safety standards and IEC approvals IEC60947-5-5 and IEC60947-5-1, ensuring it meets rigorous international safety requirements.

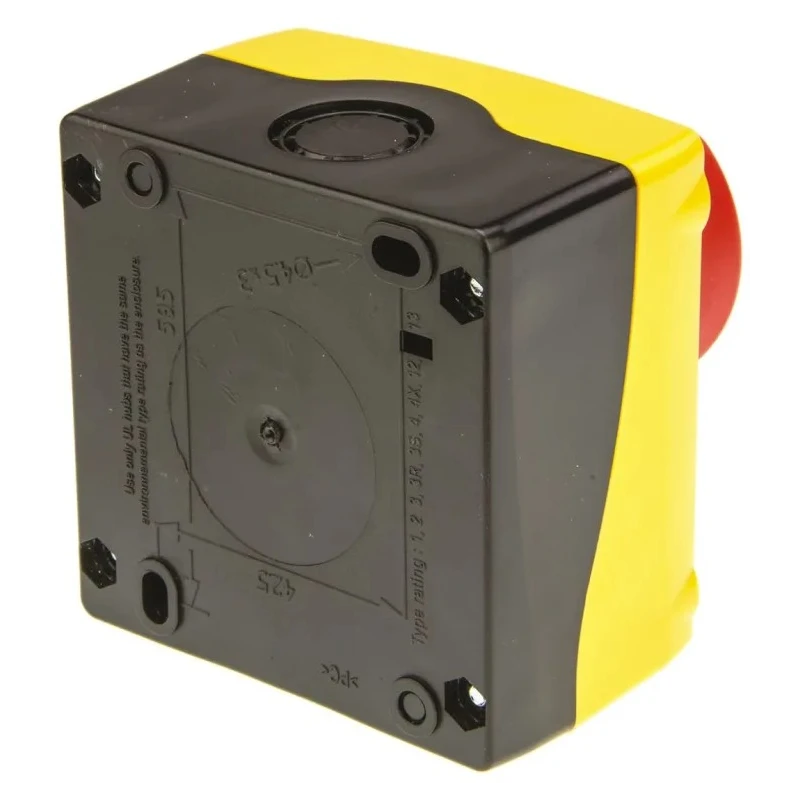

Its surface mount design along with its protective front bezel with matt chrome finish enhances durability and aesthetics in control systems. Additional contact blocks and LED modules compatible with the LBX series can be separately acquired for expanded functionality.

This product is manufactured in France, ensuring high-quality European industrial standards.

Typical industrial applications include manufacturing plants, automation systems, HVAC controls, and other machinery where prompt emergency stop control is critical. The robust IP66 rating also supports use in outdoor or washdown environments.

The push button has a mushroom head style with red color indicating emergency use. Configured with 2 normally closed (NC) contacts for reliable emergency circuit breaking. Constructed with durable plastic housing and plastic push button material ensuring good insulation.

Rated IP66 for excellent protection against dust and water ingress in harsh environments. Dimensions include a 54 mm head diameter and 74 mm width and height for easy panel integration. Includes key release actuation with RONIS 455A key format for secure operation.

Conforms to EN 418 and ISO 13850 standards ensuring compliance to safety regulations. Manufactured in France with high quality and build standards. Explore the full range of BACO Emergency Stop Push Buttons and industrial switchgear at EnvMart for reliable and safety-certified products.
