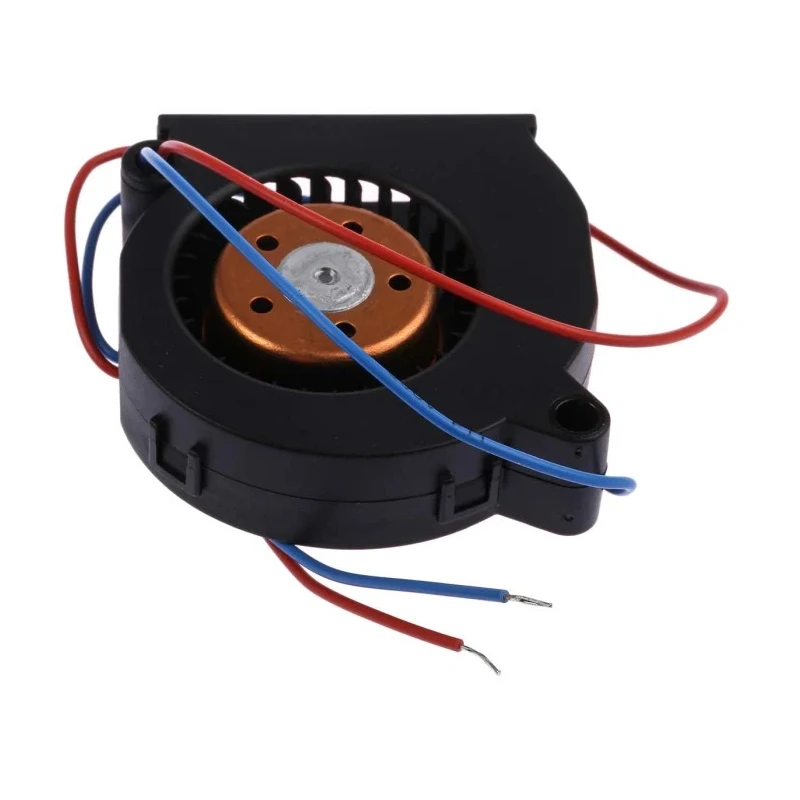

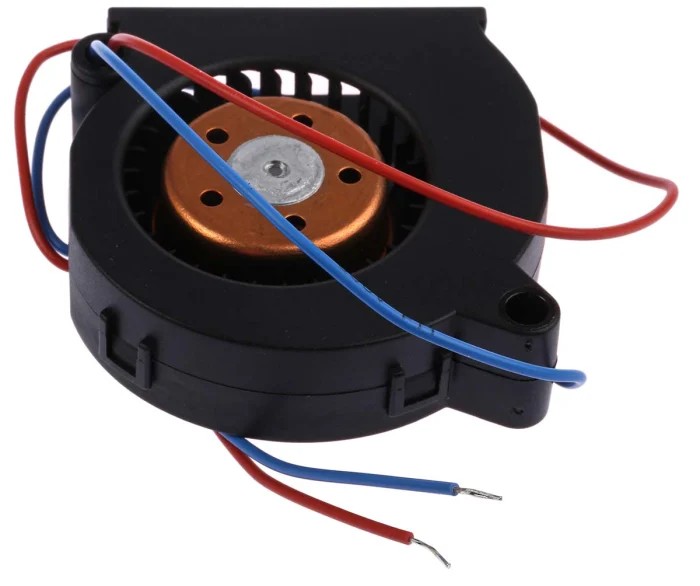

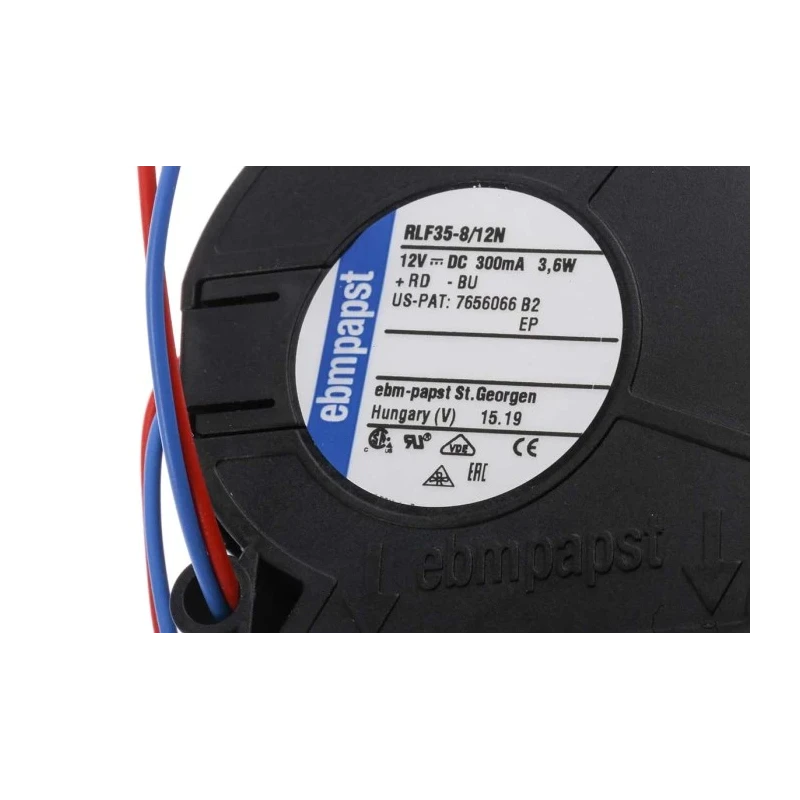

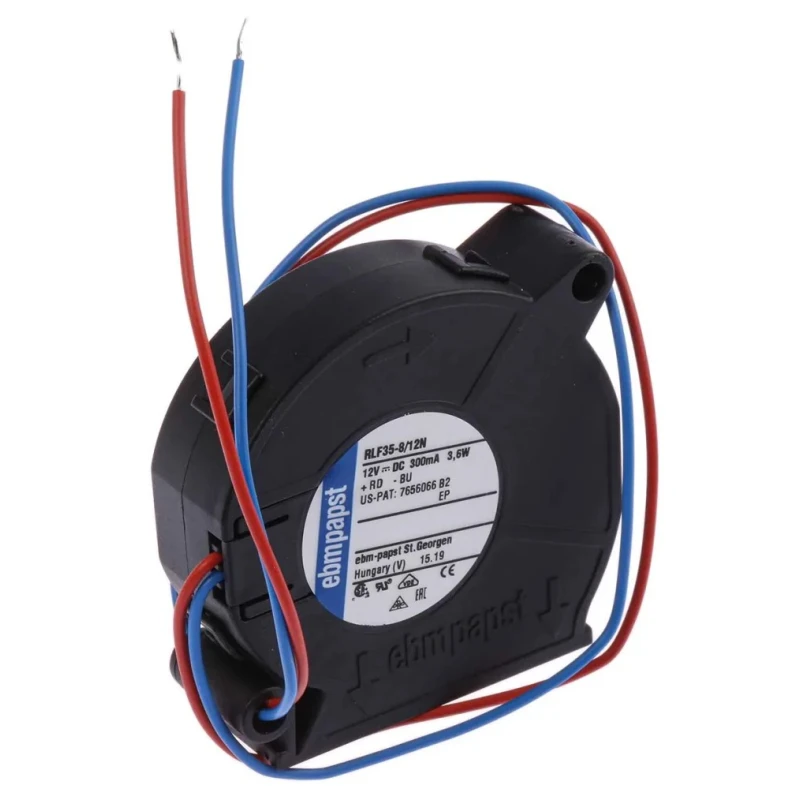

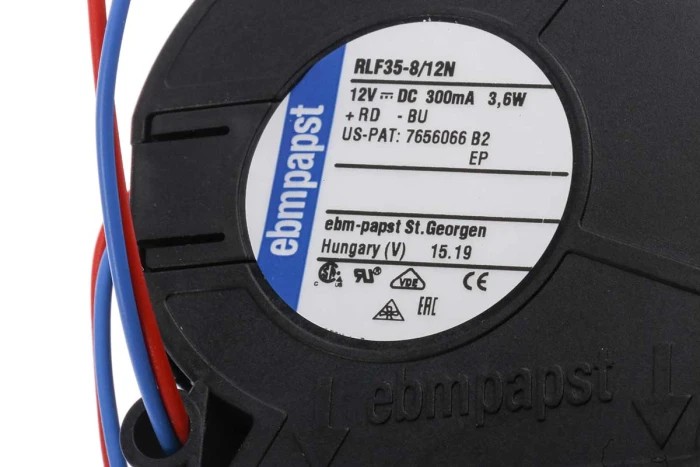

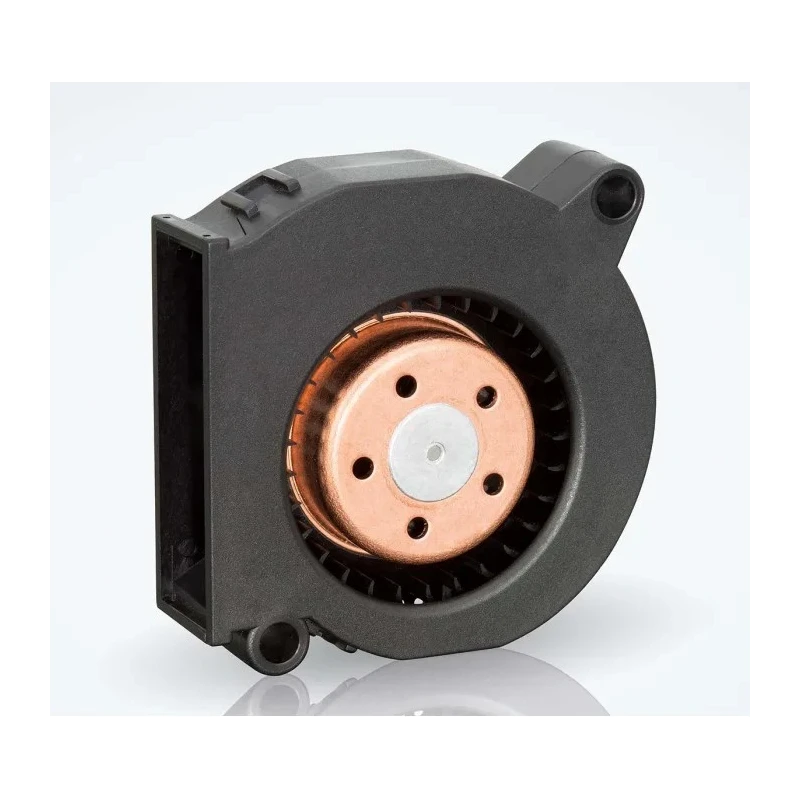

ebm-papst RLF 35 Series Centrifugal Fan, 12V DC, 9.6 m³/h Airflow, 6700 RPM, 51mm x 51mm x 15mm RLF35-8/12N
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | ebm-papst |
| Blower Type | Centrifugal |
| Height | 51mm |
| Fan Speed | 6700rpm |
| Air Flow | 9.6m³/h |
| Model | RLF35-8/12N |
| Depth | 15mm |
| IP Rating | IP20 |
| Noise Level | 55dB |
| Width | 51mm |
| Static Pressure | 170Pa |
| Series | RLF 35 |
| Terminal type | Wire |
| Supply Voltage | 12V dc |
| Bearing Type | Ball |
| Standards/Approvals | RoHS, EAC, EN, ISO, CE, CCC, CSA, VDE, UL |
| AC or DC Operation | DC |
| Commutation Type | Electronic |
| Mounting Hole Diameter | 4.3 mm |
Key Features
- Equipped with electronically commutated external rotor motor for efficiency.
- Provides 6700 RPM fan speed ensuring high airflow performance.
- Features ball bearings for extended durability and quiet operation.
- Constructed with fibreglass-reinforced plastic and steel housing for robustness.
- Includes electronic protection against reverse polarity, locked rotor and overloading.
- Delivers a static pressure of 170 Pa suitable for ventilation and cooling.
- Rated IP20 for indoor use protecting against solid objects.
- Mounting holes measure 4.3 mm diameter facilitating installation.
Product Description
ebm-papst RLF35-8/12N centrifugal fan is designed for versatile applications requiring compact size and reliable air movement. Operating at 12V DC and delivering an airflow rate of 9.6 m³/h, this fan combines efficiency and robust construction in a small footprint of 51 mm width, height, and 15 mm depth. Its electronically commutated external rotor motor enhances performance and energy efficiency.
The fan runs at 6700 rpm with ball bearing support, contributing to long operational life and reduced noise levels around 55 dB. The fibreglass-reinforced plastic impeller combined with a sheet steel housing provides mechanical strength and durability under continuous use. Protection features include electronic safeguards against reverse polarity, locked rotor condition, and overloading to prevent damage.
With a static pressure rating of 170 Pa and an IP20 rating, this centrifugal blower is suited for indoor environments and various industrial and commercial applications. Installation is facilitated by 4.3 mm diameter mounting holes.
The product complies with multiple international standards such as RoHS, CE, UL, CSA, VDE, and others, ensuring quality and safety. Typical use cases cover central air conditioning units, building ventilation, automotive systems, railway applications, electronics cooling, medical devices, household ventilation, air conditioning, and refrigeration systems.
Electronically commutated external rotor motor provides efficient operation. High airflow 9.6 m³/h with quiet 55 dB noise level. Durable ball bearing design for extended service life. Robust fibreglass-reinforced plastic impeller with steel housing.
Electronic protection against reverse polarity, locked rotor, and overload. Compact size 51 mm x 51 mm x 15 mm for versatile installation. Static pressure of 170 Pa suitable for ventilation and cooling needs. Meets standards RoHS, CE, UL, CSA, VDE ensuring compliance and quality.
Applications include HVAC, automotive, railway, medical, and household ventilation.
Choose the ebm-papst RLF 35 Series centrifugal fan for reliable, efficient, and quiet air movement solutions essential in industrial, commercial, and medical HVAC environments. Browse related Centrifugal Fans and components on EnvMart for comprehensive air management systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers an airflow rate of 9.6 m³/h.
The fan operates at a speed of 6700 RPM.
It has a static pressure rating of 170 Pa, suitable for ventilation and cooling applications.
The fan has a compact size of 51 mm in width, 51 mm in height, and 15 mm in depth.
It is equipped with an electronically commutated external rotor motor for enhanced efficiency.
The centrifugal fan operates at a noise level of 55 dB.
This unit operates on a supply voltage of 12V DC.
It features ball bearings, contributing to extended service life and quiet operation.
The fan has an IP20 rating, indicating it is suitable for indoor use and protects against solid objects.
The mounting holes have a diameter of 4.3 mm, facilitating easy installation.
It complies with multiple international standards including RoHS, CE, UL, CSA, and VDE.
This model is suitable for various applications including HVAC, automotive systems, and electronics cooling.
