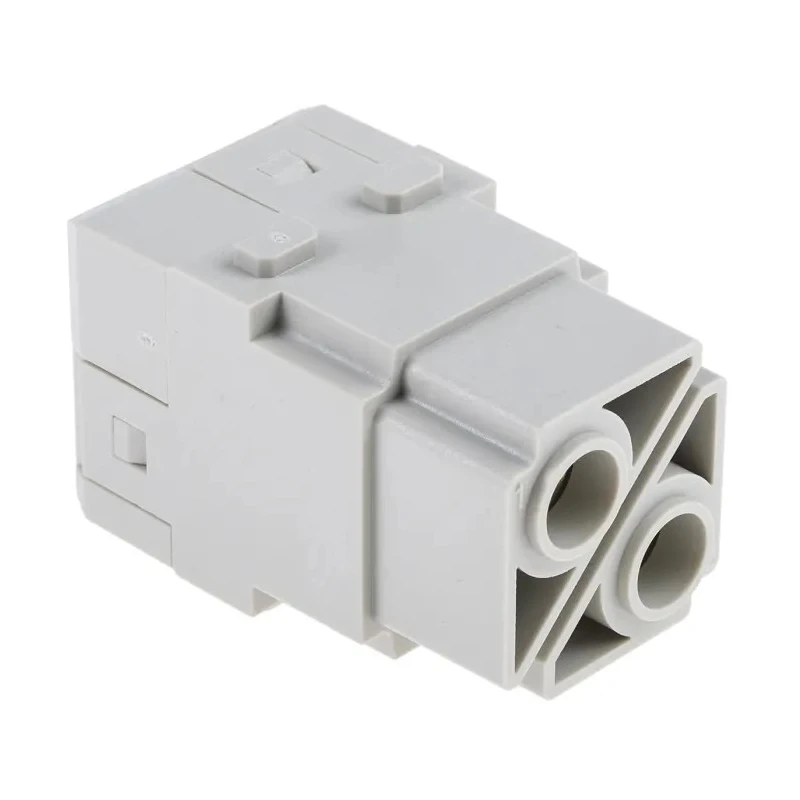

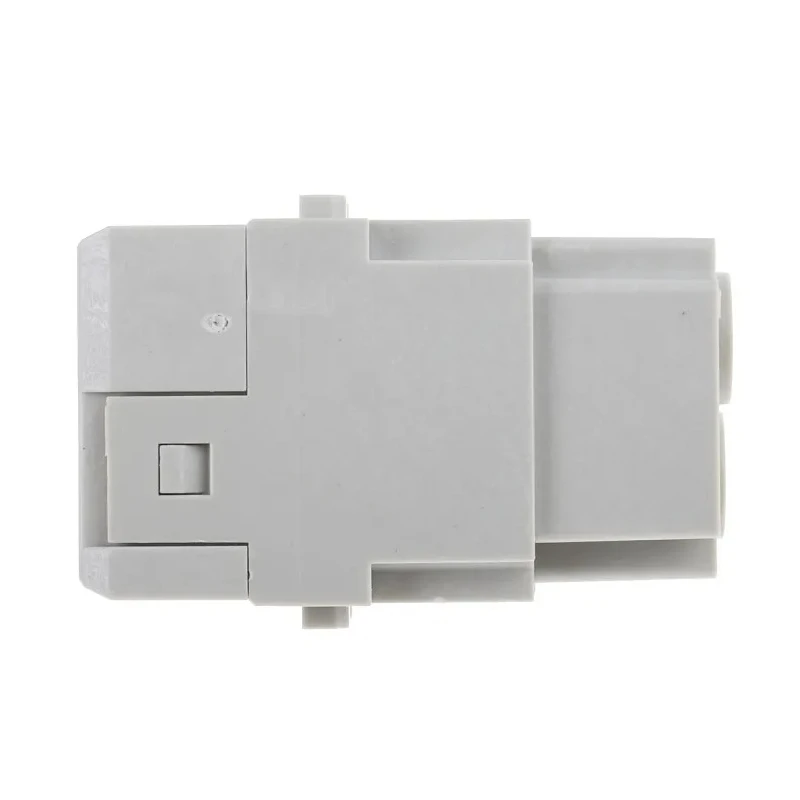

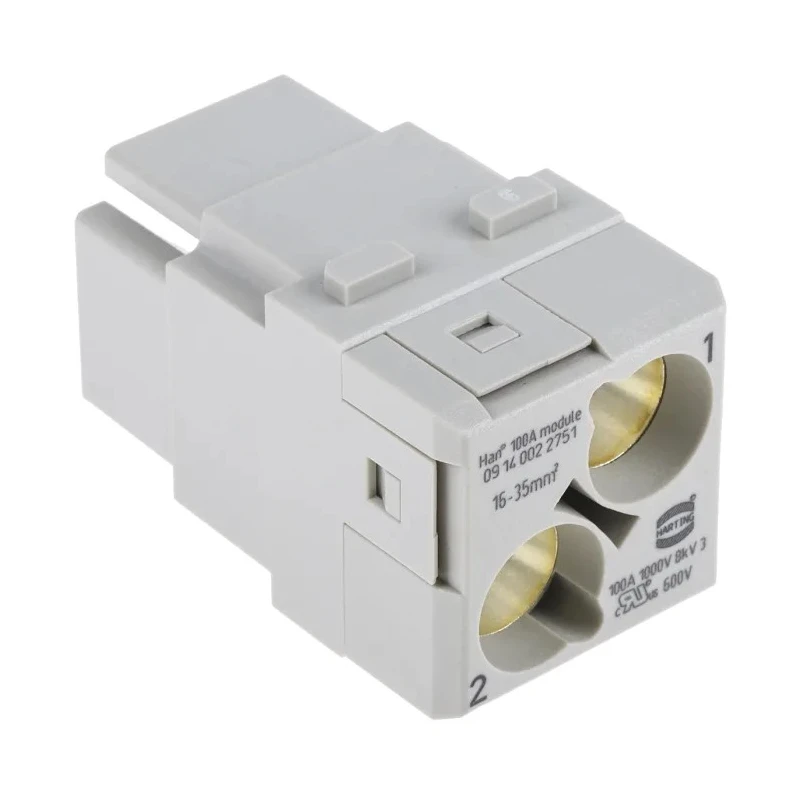

HARTING Heavy Duty Power Connector Module 100A 1kV HAN Modular Series Female 2 Contacts 09140022751
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 100A |
| Series | HAN Modular |
| Sub Type | Connector Module |
| Number of Rows | 1 |
| For Use With | Heavy Duty Power Connector |
| Standards/Approvals | IEC 60664-1 |
| Pole Format | 2 |
| Contact Plating | Silver |
| Number of Contacts | 2 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 16mm² |
| Maximum Wire Size mm² | 35mm² |
Key Features
- Designed for high-current industrial power distribution with 100A continuous current rating.
- Supports voltage up to 1 kV compliant with IEC 60664-1 insulation standards.
- Features two straight orientation female contacts for inline cable mounting.
- Suitable for cable sizes ranging from 16 mm² to 35 mm² for flexible conductor compatibility.
- Copper alloy contacts plated with silver to ensure high conductivity and low resistance.
- Robust construction intended for integration in heavy-duty power connector assemblies.
- Ideal for factory automation cabinets, mechanical drive systems, and electrical switchgear.
- Manufactured in Germany ensuring high quality and reliability.
Product Description
HARTING 09140022751 Heavy Duty Power Connector Module is engineered for demanding industrial and automation environments requiring reliable high-current cable connections. Rated at 100A current and 1kV voltage, this female connector module from the HAN Modular series provides a robust and efficient interface for power distribution.
Constructed with copper alloy contacts that are silver-plated, it ensures superior conductivity and minimal contact resistance. The module supports cable cross-sections from 16 mm² to 35 mm², accommodating a range of conductor sizes for versatile installation.
Designed with two contacts in a straight orientation, it enables straightforward inline cable mounting, suitable for compact power systems. Compliance with IEC 60664-1 insulation coordination ensures safe operation at industrial voltages up to 1 kV, addressing clearance and creepage requirements.
This connector module is ideal for use in factory automation power feeds, motor connections in mechanical drive systems, heavy-duty cable assemblies on site, and temporary power links on test rigs. Its high-current handling capability makes it suitable for electrical switchgear applications.
Rated for 100A continuous current, supporting demanding power needs. IEC 60664-1 compliant insulation assures safety at 1 kV operational voltage. Silver-plated copper alloy contacts provide stable, reliable electrical performance.
Supports flexible and solid conductors from 16 mm² to 35 mm² cable size. Straight contact orientation for easy inline cable connections. Robust mechanical design for integration in heavy-duty power connector assemblies. Manufactured in Germany, assuring consistent quality standards.
Choose HARTING heavy duty connectors for dependable electrical performance in industrial, manufacturing, automation, and electrical power distribution systems. Explore EnvMart's specialized electronic components category for more high-quality power connectors and modules.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This heavy duty power connector module has a continuous current rating of 100A.
It supports a voltage of up to 1 kV, compliant with IEC 60664-1 insulation standards.
The connector features a straight orientation for its two contacts, allowing for inline cable mounting.
The contacts are made of copper alloy and are plated with silver to ensure high conductivity and low resistance.
It supports cable sizes ranging from 16 mm² to 35 mm², suitable for flexible and solid conductors.
This module complies with IEC 60664-1 insulation coordination standards, ensuring safe operation at high voltages.
It has two contacts, designed for robust electrical connections in heavy-duty applications.
This connector module is manufactured in Germany, ensuring high quality standards.
The mounting type for this connector is cable, designed for easy installation in power distribution systems.
It is ideal for factory automation cabinets, mechanical drive systems, and electrical switchgear applications.
The pole format of this module is 2, which corresponds to its two female contacts.
This connector is part of the HAN Modular series, designed for high-current industrial applications.
