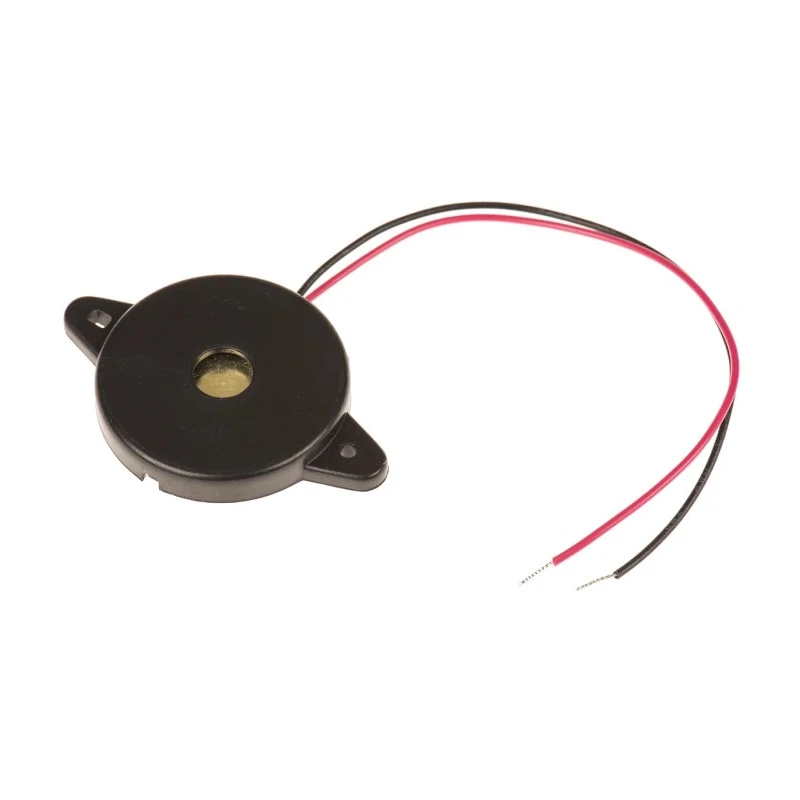

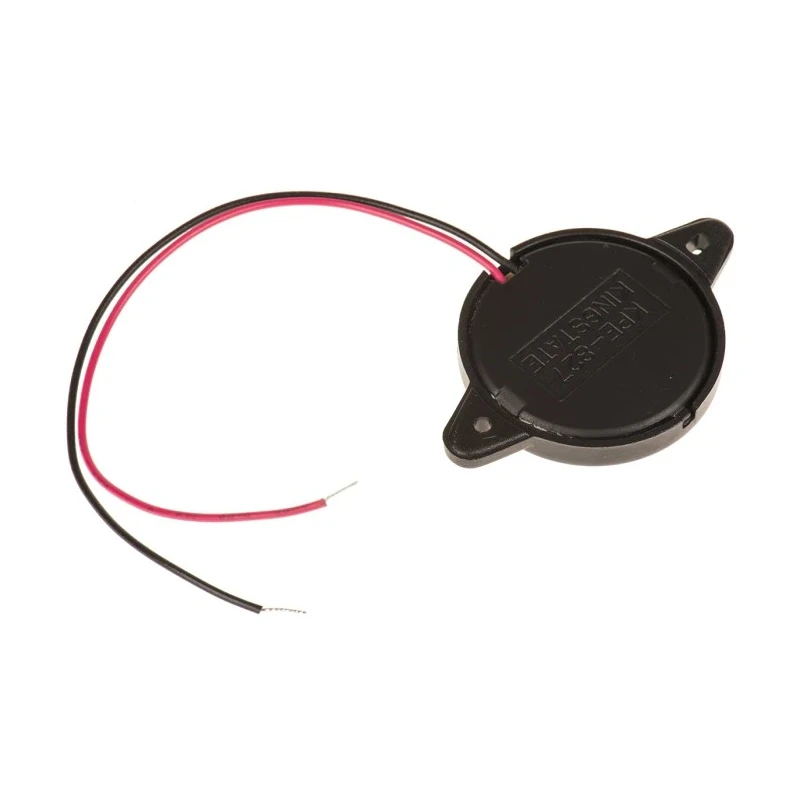

RS PRO 97 dB Panel Mount Continuous External 5.1 mm Piezo Buzzer Component 44.5 mm 50V ac Max 238-022

Name: RS PRO 97 dB Panel Mount Continuous External 5.1 mm Piezo Buzzer Component 44.5 mm 50V ac Max 238-022
Brand: RS PRO
SKU: 149904



Category Piezo Buzzer Component Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Sound Level	97dB
Height	5.1mm
Length	44.5mm
Model	238-022
Depth	30mm
Drive Type	External
Mount Type	Panel Mount
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Standards/Approvals	RoHS
Maximum Frequency	4.5kHz
Termination Style	Wire
Maximum Supply Voltage	50V ac
Supply Current	11mA
Tone Type	Continuous
Minimum Frequency	4.5kHz

Key Features

This piezo buzzer features a panel mount installation for secure positioning.
It produces a continuous tone at a frequency of 4.5 kHz to ensure consistent sound output.
The unit requires an external drive type and uses wire termination style for connections.
Designed for operation between -30°C and 85°C temperature range.
The buzzer dimensions include a length of 44.5 mm, depth of 30 mm, and height of 5.1 mm for compact integration.
Compliance with RoHS standards ensures environmental safety.
The buzzer draws a supply current of 11 mA for efficient power consumption.

Product Description

RS PRO 238-022 Piezo Buzzer Component is a high-performance panel mount device designed to deliver a continuous external tone at 97 dB, operating up to 50V AC maximum supply voltage. With a compact size featuring a 44.5 mm length, 30 mm depth, and 5.1 mm height, this buzzer is ideal for applications requiring consistent sound signaling.

The device operates at a fixed frequency of 4.5 kHz and requires external driving circuitry facilitated by wire termination. Its robust construction supports operation within a broad temperature range from -30°C to 85°C, making it suitable for industrial, electronic, and commercial sound signaling needs.

Conforming to RoHS standards, this piezo buzzer is environmentally friendly and reliable. Its flanged transducer design and flying lead connections simplify installation in electrical panels and machinery control systems.

This buzzer provides high sound output at 97 dB to ensure clear audible alerts. Panel mount design offers secure, easy installation in electrical control panels. Externally driven operation provides flexibility in integration with control electronics.

Compact dimensions improve space efficiency in electrical assemblies. The operation temperature range allows use in diverse environments including industrial settings. RoHS compliance ensures reduced hazardous substance content for safer usage.

Supply current of 11 mA supports low power consumption applications.

Commonly used in industrial electronics, machinery panels, HVAC systems, safety alarms, and manufacturing equipment, this piezo buzzer provides reliable and effective audible signaling. For more high-quality electronic components like this, explore the Electronics Components category at EnvMart to find compatible and complementary products.
