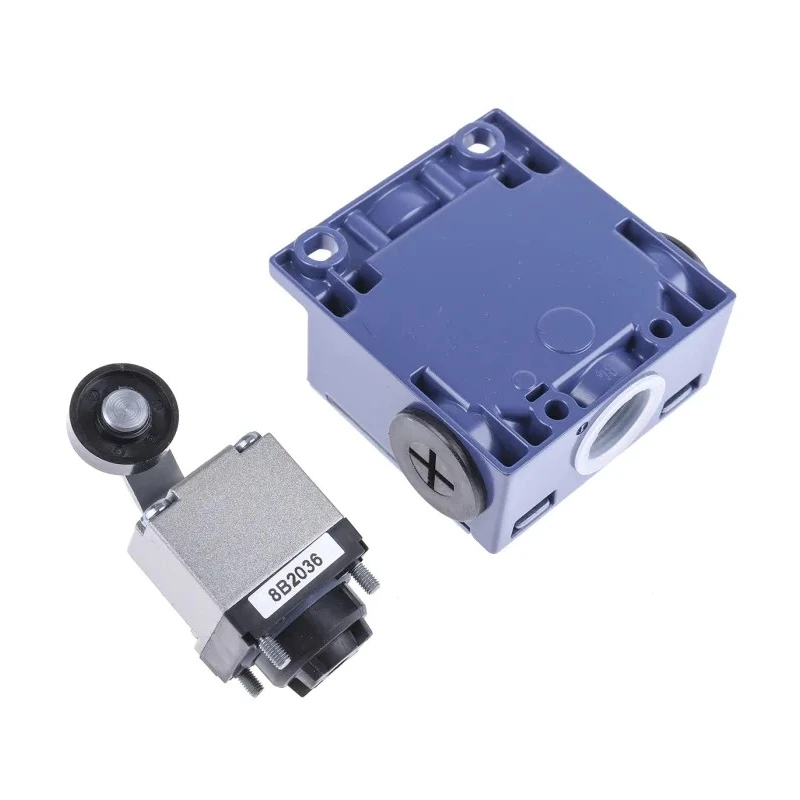

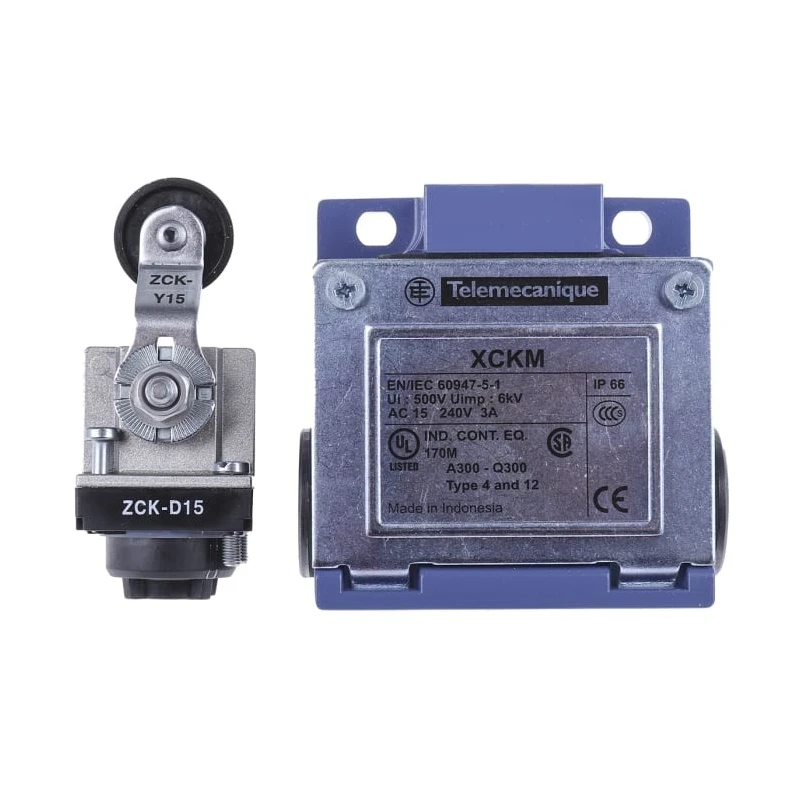

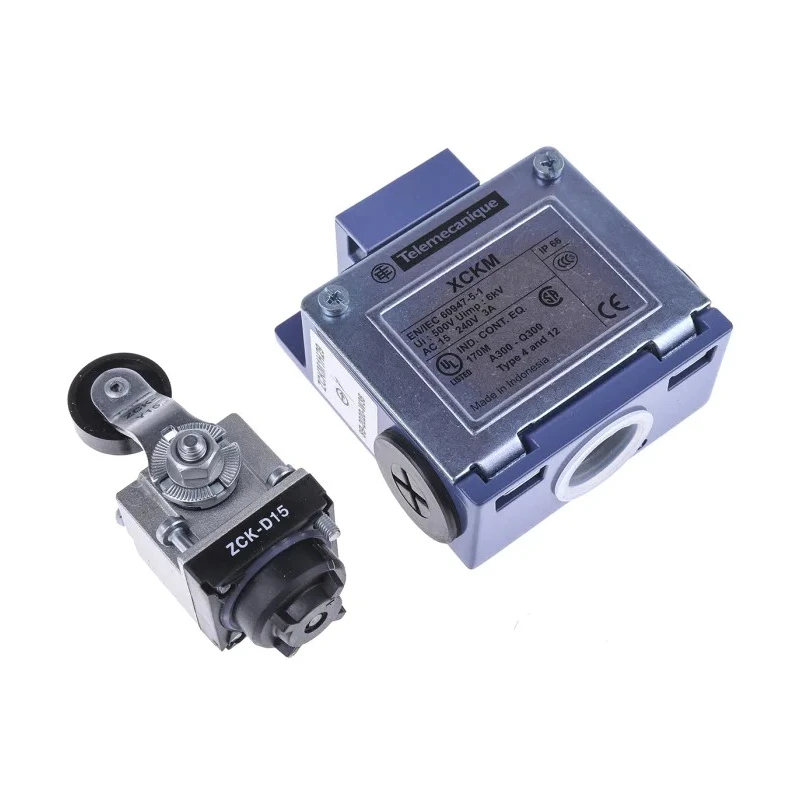

Telemecanique Sensors OsiSense XC Series Roller Lever Limit Switch, 1 NO/1 NC, IP66, Zinc Alloy Housing, 240V AC, 3A
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 64mm |
| Model | IP66 |
| Depth | 30mm |
| IP Rating | IP66 |
| Width | 63mm |
| Housing Material | Zinc Alloy |
| Series | OsiSense XC |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Lever |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 3A |
| Terminal type | Screw Clamp |
| Standards/Approvals | RoHS, REACH, IEC, CSA, CCC, UL |
| Operating Force | 0.25Nm |
| Mechanical Life | 15000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M20 |
Key Features
- Equipped with a durable zinc alloy housing for enhanced mechanical strength.
- Rated for switching currents up to 3 amperes at 240 volts AC.
- IP66 protection rating ensures resistance against dust and powerful water jets.
- Mechanical life expectancy of 15 million cycles for long-term operation.
- Operating temperature range from -25°C to 70°C, suitable for various environments.
- Snap action contact type provides fast and reliable switching performance.
- Screw clamp terminals facilitate secure and easy wiring.
- Conduit entry using M20 standard to enable straightforward installation.
Product Description
Telemecanique Sensors XCKM115H29 Roller Lever Limit Switch provides robust and precise position sensing in industrial environments. Designed as part of the OsiSense XC series, this limit switch incorporates a roller lever actuator and 1 normally open (NO) plus 1 normally closed (NC) contact configuration. It supports a switching current of up to 3 amperes at 240 volts AC, making it ideal for controlling electrical assembly and material handling equipment.
The switch features a zinc alloy housing rated to IP66 standards, offering substantial protection against dust ingress and powerful water jets, suitable for harsh operating conditions. It is built to withstand a mechanical life of 15 million cycles, ensuring durability and reliability over extended usage periods.
Operating temperature ranges from -25 degrees Celsius to 70 degrees Celsius accommodate various industrial and manufacturing environments. The snap action contacts provide quick, reliable switching with a low operating force of 0.25Nm, ensuring minimal actuation energy requirements.

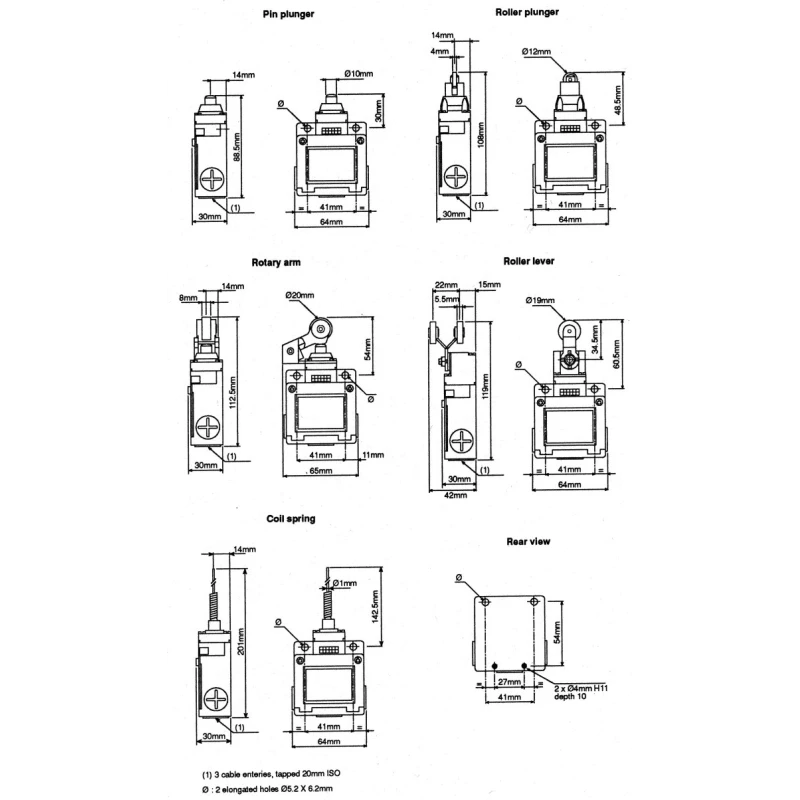

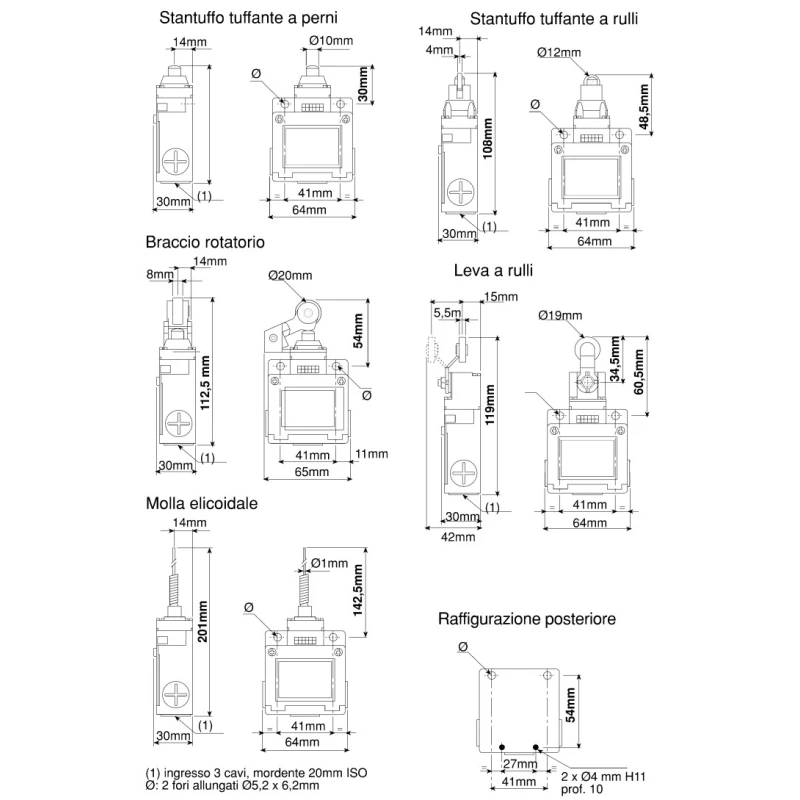

Compact in size with dimensions of 64mm length, 63mm width, and 30mm depth, the limit switch easily integrates into existing control systems. The M20 conduit entry and screw clamp terminals allow for simple, secure installation.
This limit switch is suitable for applications in electrical automation, escalators, material handling, and factory assembly lines, providing precise position detection and control to enhance system performance and safety.
Durable zinc alloy housing with IP66 protection. 1 NO and 1 NC snap action contacts rated at 3A, 240V AC. Mechanical life rated at 15 million cycles. Operating temperature range -25°C to 70°C supports varied environments.
Compact dimensions fit multiple industrial applications. Low operating force of 0.25Nm for efficient actuation. Screw clamp terminals and M20 conduit entry for easy wiring. Explore more limit switches and automation components in the Electronics & Electricals > Switches & Sockets > Limit Switch category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 3 amperes at 240 volts AC.
This limit switch has an IP66 protection rating, ensuring resistance against dust and powerful water jets.
It has a mechanical life expectancy of 15 million cycles, providing durability for long-term operation.
The operating temperature range is from -25°C to 70°C, making it suitable for various industrial environments.
This model features a roller lever actuator, which is designed for precise position sensing.
It has a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact.
The switch is equipped with screw clamp terminals, facilitating secure and easy wiring.
The dimensions are 64mm in length, 63mm in width, and 30mm in depth.
The operating force required for actuation is 0.25Nm, ensuring efficient operation.
It complies with several standards including RoHS, REACH, IEC, CSA, CCC, and UL.
The limit switch features an M20 conduit entry, allowing for straightforward installation.
This limit switch is suitable for applications in electrical automation, escalators, material handling, and factory assembly lines.
