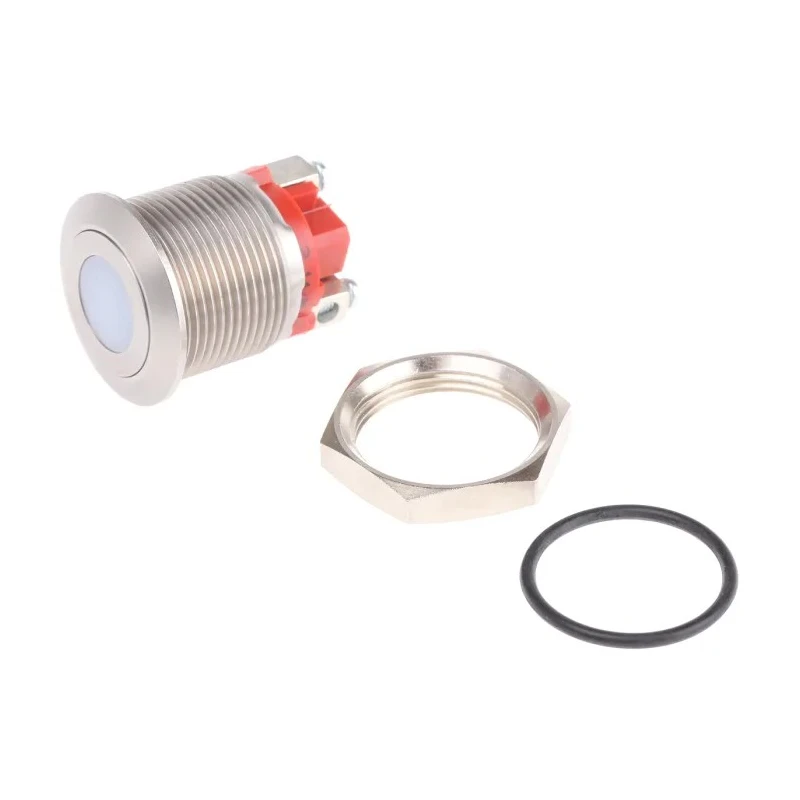

APEM AV Series Illuminated Push Button Switch, Momentary, 19.2 mm Cutout, SPST, Red LED, IP65, 250 V ac AV09C7L3D9406K
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | AV09C7L3D9406K |
| IP Rating | IP65 |
| Panel Thickness | 1 to 6mm maxi |
| Service Life | 1 million operations |
| Series | AV |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Actuator Style | Flat |
| Switch Contact Current | 50mA |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a silver flat actuator with red LED illumination for easy visibility.
- Designed for panel thickness from 1 to 6 mm maximum, suitable for various industrial panels.
- Rated for 250 V AC and 50 mA contact current for robust electrical performance.
- Operates within a temperature range from -30°C to 70°C ensuring durability under diverse conditions.
- Stainless steel or nickel plated brass construction provides excellent resistance against vandalism and environment.
- Sealed design with IP65 rating protects against dust and water ingress.
- LED voltage is 3 V DC at 10 mA to ensure low power consumption illumination.
- Service life is certified for one million operations, ensuring long-term reliability.
Product Description
APEM AV Series Illuminated Push Button Switch model AV09C7L3D9406K is a high-quality, momentary push button switch featuring a 19.2 mm panel cutout. It delivers reliable tactile feedback with a silver flat actuator and red LED illumination, making it ideal for industrial automation, electrical control panels, and machinery applications.
This device is built to withstand tough industrial environments with an IP65 rating, ensuring protection from dust and water ingress. Its construction from stainless steel or nickel plated brass further enhances durability and vandal resistance.
Designed for panels up to 6 mm thickness, it supports a contact configuration of SPST rated for 250 V AC at 50 mA. The illuminated red LED ring operates at 3 V DC with a current of 10 mA, providing clear indication under all lighting conditions.
The switch operates reliably across a broad temperature range of -30°C to 70°C. Its robust design supports a service life of one million operations, suitable for demanding industrial and laboratory automation uses.
The switch features a silver flat actuator with red LED illumination for easy visibility. Designed for panel thickness from 1 to 6 mm maximum, suitable for various industrial panels. Rated for 250 V AC and 50 mA contact current for robust electrical performance.
Operates within a temperature range from -30°C to 70°C ensuring durability under diverse conditions. Stainless steel or nickel plated brass construction provides excellent resistance against vandalism and environment. Sealed design with IP65 rating protects against dust and water ingress.
LED voltage is 3 V DC at 10 mA to ensure low power consumption illumination. Service life is certified for one million operations, ensuring long-term reliability.
This illuminated push button is well-suited for industrial, electrical automation, control systems, manufacturing equipment, and HVAC panels. Its robust build and rated specifications make it a dependable component for professional engineers and system integrators.
Explore more APEM AV Series illuminated switches in the Push Button Switch category on EnvMart for comprehensive control panel solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The panel cutout size for this model is 19.2 mm.
This switch features a Single Pole Single Throw (SPST) contact configuration.
The maximum operating temperature for this switch is 70°C.
This switch has an IP65 rating, providing protection against dust and water ingress.
The service life of this switch is certified for one million operations.
The switch contacts are rated for 250 V AC and 50 mA contact current.
It operates reliably within a temperature range from -30°C to 70°C.
The switch is constructed from stainless steel or nickel plated brass, enhancing its resistance to vandalism and environmental factors.
It features a silver flat actuator for easy visibility.
The LED operates at 3 V DC with a current of 10 mA, ensuring low power consumption.
The maximum panel thickness for installation is 6 mm.
This model complies with RoHS standards.
