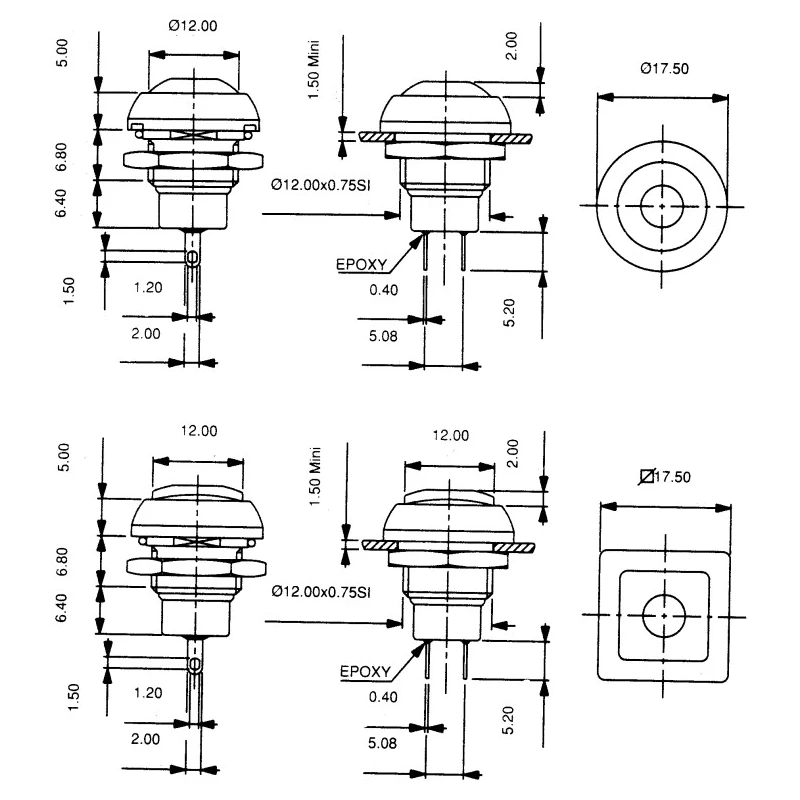

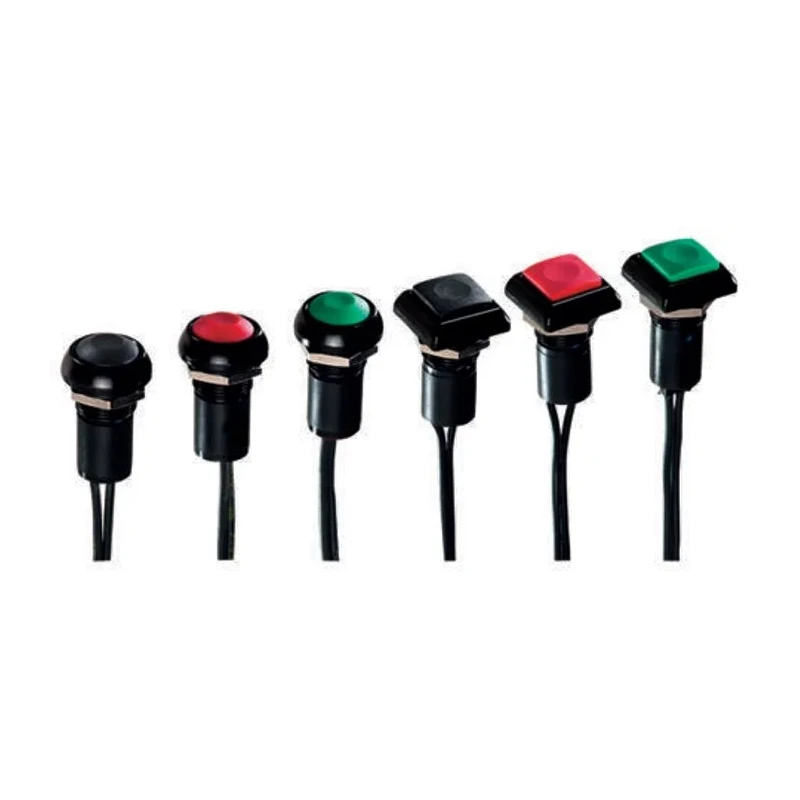

APEM IP Series Panel Mount Momentary Push Button Switch, SPST, 13.6 mm Cutout, Dome Actuator, IP67, 28 V dc IPR3FAD-7/1
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 16mm |
| Model | IPR3FAD-7/1 |
| IP Rating | IP67 |
| Width | 17.5mm |
| Mount Type | Panel |
| Series | IP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | Off-On, NO, NC |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| LED Colour | Blue, Green, Red, White, Yellow |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Contact DC Voltage | 28V dc |
| Actuator Style | Dome |
| Switch Contact Current | 5A |
| Very robust | IK06 |
Key Features
- Features a 13.6 mm panel cutout with dome style white actuator for precise operation.
- IP67 rated sealing provides excellent protection against dust and water ingress.
- Capable of operating in temperature range from -40°C to 85°C for harsh environments.
- Switch contact current rating of 5A AC at 28 V dc contact voltage.
- Available with LED color options including Blue, Green, Red, White, and Yellow for indication.
- Highly durable construction rated to IK06 impact resistance ensuring long life.
- Terminal type is through hole suitable for secure PCB mounting.
- RoHS compliant, meeting environmental and safety standards.
Product Description
APEM IPR3FAD-7/1 is a high-quality IP series momentary push button switch designed for panel mounting in industrial and electrical applications. This switch features a compact 13.6 mm panel cutout and a white dome-style actuator suitable for tactile and precision operation. With an IP67 rating, it provides excellent ingress protection, making it ideal for use in harsh and demanding environments including industrial automation, control panels, machinery, and manufacturing systems.
The switch supports a SPST configuration with a contact current rating of 5A AC and a contact DC voltage of 28 V dc. It operates reliably within a temperature range spanning from -40°C to 85°C, ensuring stable performance in varying climatic conditions. The switch's robust construction also includes IK06 impact resistance for enhanced durability against mechanical shocks.
The terminal type is through hole, allowing for reliable mounting on printed circuit boards or panel connections. It features LED options in multiple colors: Blue, Green, Red, White, and Yellow, providing clear visual status indication. This product is RoHS compliant, confirming adherence to environmental regulations.
Designed and manufactured in France, this momentary push button switch is suitable for a wide array of industrial, laboratory, electrical control, HVAC systems, and automation applications. Its sealed construction and resistance to salt spray align with rigorous industry standards (EN 50102, IEC 512-4, IEC 512-6).
Features a 13.6 mm cutout panel mount for easy integration. IP67 protection ensures dustproof and waterproof performance. SPST switch configuration with momentary operation. Available LED colors enhance operational feedback and monitoring.
Robust device rated to IK06 impact resistance for long service life. Operates between -40°C and 85°C temperature range. Suitable for industrial, manufacturing, automation, and electrical control uses. Explore the full range of APEM Push Button Switches and electrical components on EnvMart for reliable and high-performance industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an IP67 rating, providing excellent protection against dust and water ingress, making it suitable for harsh environments.
The switch has a contact current rating of 5A AC at a contact voltage of 28 V dc.
It operates reliably within a temperature range of -40°C to 85°C, ensuring stable performance in varying climatic conditions.
This model features a dome-style white actuator, which is designed for tactile and precise operation.
The panel cutout size required for this switch is 13.6 mm.
It uses a through hole terminal type, which is suitable for secure PCB mounting.
The switch is available with LED color options including Blue, Green, Red, White, and Yellow for indication purposes.
This model has an IK06 impact resistance rating, ensuring durability against mechanical shocks.
Yes, this switch is RoHS compliant, meeting environmental and safety standards.
The switch configuration is SPST, with momentary operation.
This product is designed and manufactured in France.
This momentary push button switch is suitable for a wide array of applications including industrial automation, control panels, machinery, and manufacturing systems.
