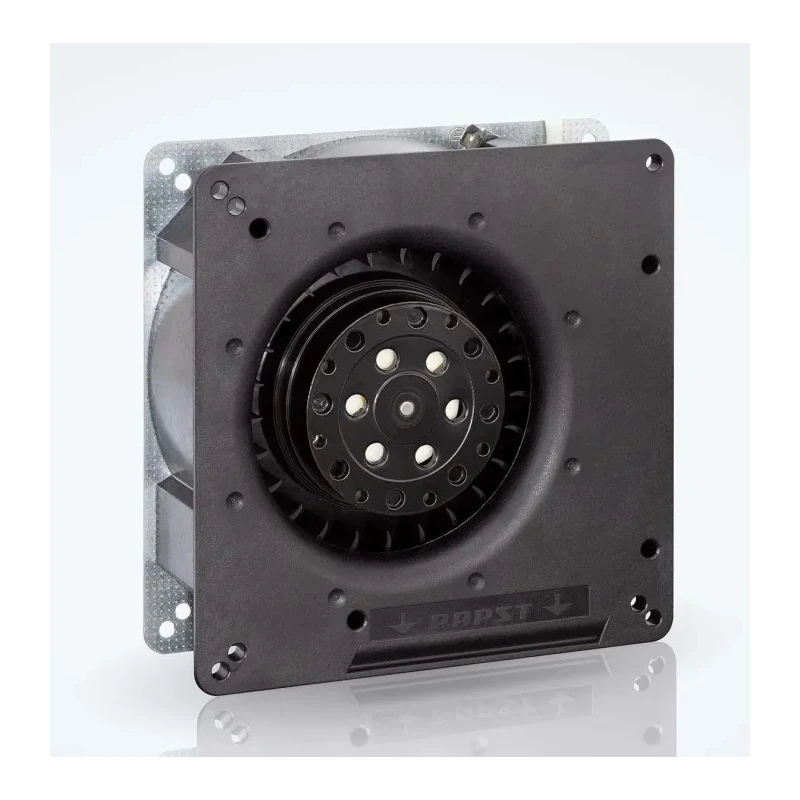

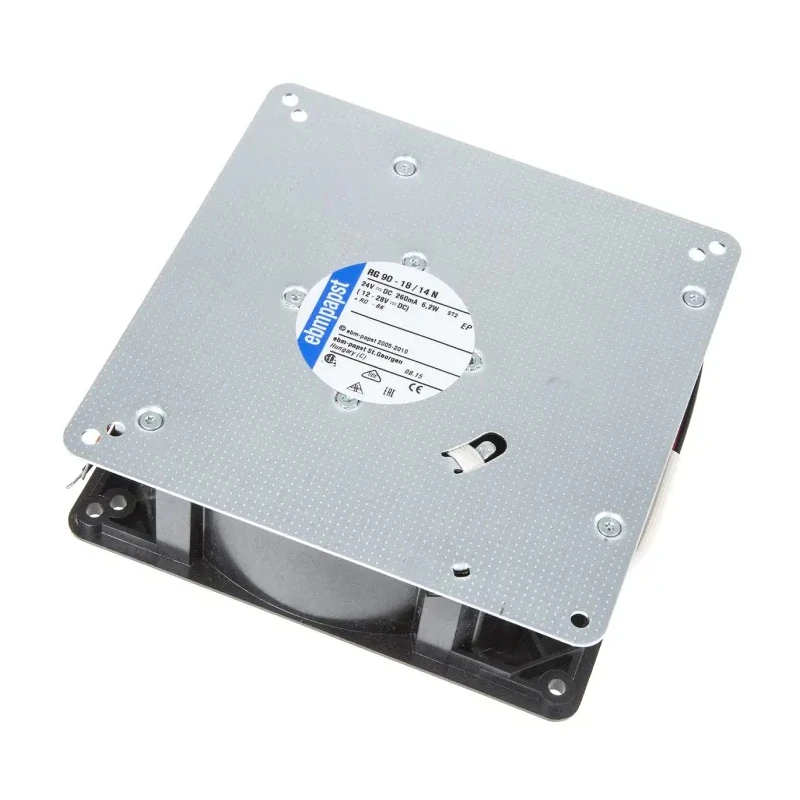

ebm-papst RG 90 N Series Centrifugal Fan 24V DC 55 m³/h 2200 RPM Ball Bearing Electronic Commutation RG90-18/14N

Free Delivery in India | Lowest Global Shipping Charges

ebm-papst RG 90 N Series Centrifugal Fan 24V DC 55 m³/h 2200 RPM Ball Bearing Electronic Commutation RG90-18/14N

Name: ebm-papst RG 90 N Series Centrifugal Fan 24V DC 55 m³/h 2200 RPM Ball Bearing Electronic Commutation RG90-18/14N
Brand: ebm-papst
SKU: 149441
Price: 81.83 USD
Availability: InStock



Category Centrifugal Fan Brand ebm-papst Condition New

Specifications

Country of Origin	Hungary
Brand	ebm-papst
Blower Type	Centrifugal
Height	135mm
Fan Speed	2200rpm
Air Flow	55m³/h
Model	RG90-18/14N
Depth	38mm
IP Rating	IP20
Noise Level	55dB
Width	135mm
Static Pressure	100Pa
Series	RG 90 N
Terminal type	Wire
Supply Voltage	24V dc
Bearing Type	Ball
Standards/Approvals	CE, ISO, EN, RoHS, VDE, UL, EAC, CSA, CCC
AC or DC Operation	DC
Commutation Type	Electronic
Mounting Hole Diameter	4.3 mm

Key Features

The fan uses a ball bearing for durability and stable operation.
Electronic commutation ensures efficient DC operation.
The device features a compact size of 135 mm x 135 mm x 38 mm suitable for various installations.
It provides a noise level of 55 dB for quieter performance.
Static pressure capability is rated at 100 Pa supporting moderate pressure build-up.
Constructed with fibreglass-reinforced plastic housing and impeller for robustness.
Equipped with wired power connections for reliable electrical interface.
Designed for applications in HVAC, electronics cooling, and medical equipment ventilation.

Product Description

ebm-papst RG90-18/14N is a precision-engineered centrifugal fan designed for industrial and commercial HVAC applications. Operating at 24V DC, it provides an airflow of 55 m³/h with a fan speed of 2200 rpm, delivering efficient cooling performance. The fan housing and impeller are made from fibreglass-reinforced plastic, enhancing mechanical strength and corrosion resistance.

This fan employs a ball bearing mechanism ensuring durability and low maintenance in continuous operation settings while electronic commutation technology optimizes energy consumption and noise reduction. The compact dimensions of 135 mm width, 135 mm height, and 38 mm depth facilitate integration into confined spaces.

Noise emission is rated at 55 dB, making it suitable for noise-sensitive environments. Its static pressure capacity of 100 Pa allows it to efficiently overcome resistance in ventilation ducts or enclosures.

Wired terminal connections provide secure power delivery, and the fan includes features such as locked rotor protection and reverse polarity safeguards, enhancing operational reliability. Designed in Hungary, the fan meets stringent quality and safety requirements under certifications like CE, UL, and RoHS.

Typical applications include central air conditioning units, building ventilation, automotive electronics cooling, railway systems, medical treatment devices, and various household appliances requiring reliable air movement.

The fan uses a ball bearing for durability and stable operation. Electronic commutation ensures efficient DC operation. Compact dimensions enable versatility in installation. Noise level is maintained at a minimal 55 dB.

Static pressure rating of 100 Pa supports effective airflow resistance handling. Fibreglass-reinforced plastic housing and impeller for strength and corrosion resistance. Wired connections with locked rotor and reverse polarity protection.

Compliance with international standards including CE, UL, RoHS, and CSA. Ideal for HVAC, electronics, automotive, and medical ventilation applications. Explore more industrial Centrifugal Fans and HVAC components at EnvMart to find optimal solutions tailored to your project needs.
