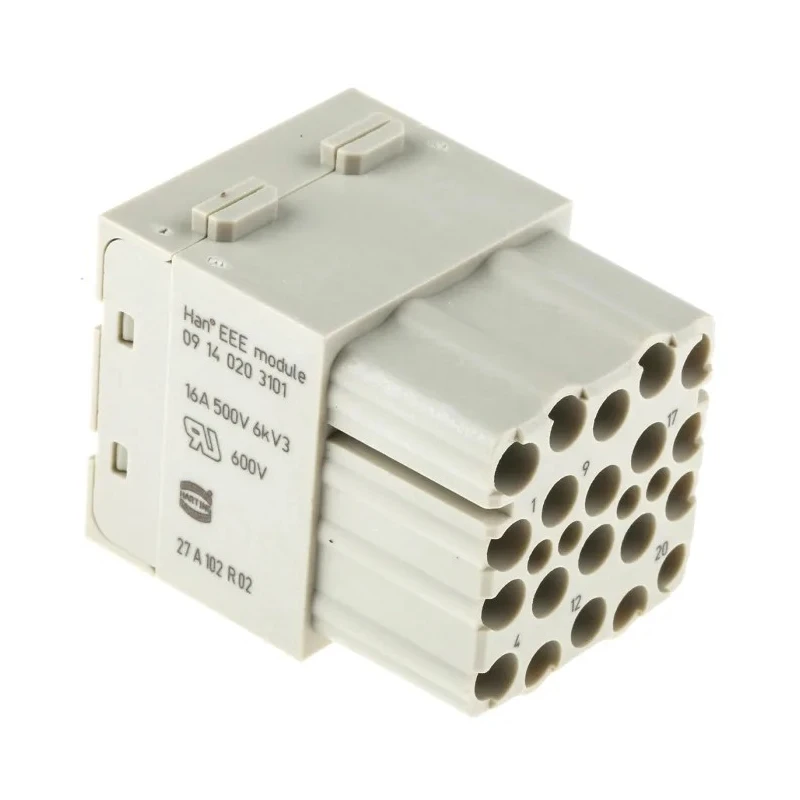

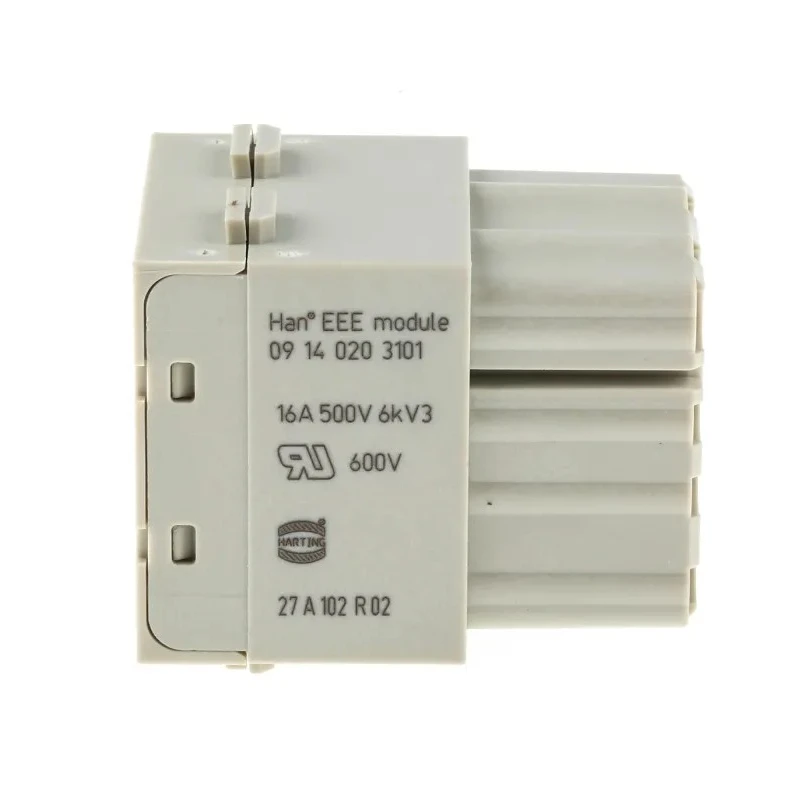

HARTING Heavy Duty Power Connector Module 16A 500V HAN Modular Series Female 20 Contacts 09140203101

Free Delivery in India | Lowest Global Shipping Charges

HARTING Heavy Duty Power Connector Module 16A 500V HAN Modular Series Female 20 Contacts 09140203101

Name: HARTING Heavy Duty Power Connector Module 16A 500V HAN Modular Series Female 20 Contacts 09140203101
Brand: HARTING
SKU: 149197
Price: 24.99 USD
Availability: InStock



Category Heavy Duty Power Connector Module Brand HARTING Condition New

Specifications

Country of Origin	Germany
Voltage	500V
Brand	HARTING
Orientation	Straight
Mount Type	Cable
Contact Material	Polycarbonate
Current Rating	16A
Series	HAN Modular
Sub Type	Module
Number of Rows	4
For Use With	Heavy Duty Power Connector
Pole Format	20
Number of Contacts	20
Connector Gender	Female
Minimum Wire Size mm²	0.14mm²
Maximum Wire Size mm²	4mm²
Mating Cycle	500

Key Features

The module belongs to the HAN Modular series for versatile insert configurations.
It features a straight orientation and polycarbonate contact material.
Supports wire sizes ranging from 0.14mm² to 4mm² ensuring broad compatibility.
Designed for cable mount type installations in demanding environments.
Electrical data comply with DIN EN 61 984 standard ensuring high performance.
Mating cycle is rated up to 500 for durability and repeated use.
Produced in Germany reflecting stringent manufacturing quality controls.

Product Description

HARTING 09140203101 Heavy Duty Power Connector Module is a robust female connector module within the HAN Modular series. It is engineered to handle currents up to 16A at 500V, making it suitable for demanding industrial and manufacturing applications requiring reliable power connections.

This module features 20 contacts arranged in 4 rows, allowing for complex wiring configurations within a single connector system. The straight orientation and cable mount type provide ease of installation and maintenance in various setups.

Constructed with polycarbonate contact material, the connector module ensures robust electrical insulation and mechanical stability. It supports a wire size range from 0.14mm² minimum to a maximum of 4mm², accommodating a wide variety of cable types.

Designed and manufactured in Germany, this power connector adheres to the DIN EN 61 984 standard, ensuring compliance with recognized industrial safety and quality benchmarks. The connector's mating cycle rated at 500 cycles signifies its long service life in heavy duty operations.

The module belongs to the HAN Modular series for versatile insert configurations. It features a straight orientation and polycarbonate contact material. Supports wire sizes ranging from 0.14mm² to 4mm² ensuring broad compatibility.

Designed for cable mount type installations in demanding environments. Electrical data comply with DIN EN 61 984 standard ensuring high performance. Mating cycle is rated up to 500 for durability and repeated use. Produced in Germany reflecting stringent manufacturing quality controls.

This Heavy Duty Power Connector Module is ideal for industrial, manufacturing, and electronic component assembly where reliable power connections are critical. It supports flexibility in connector assembly design and meets high standards for durability and performance.
