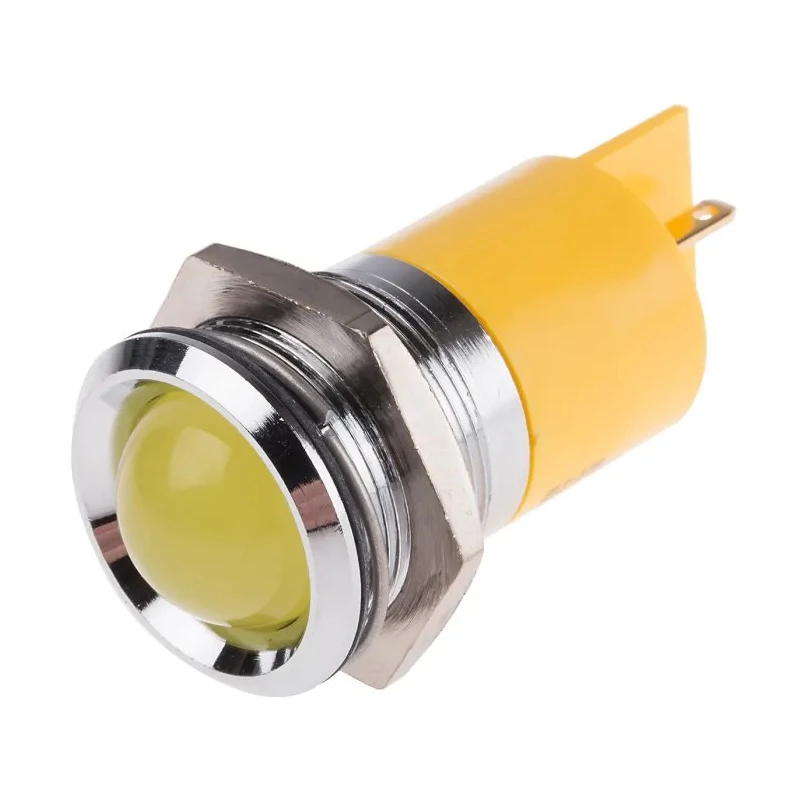

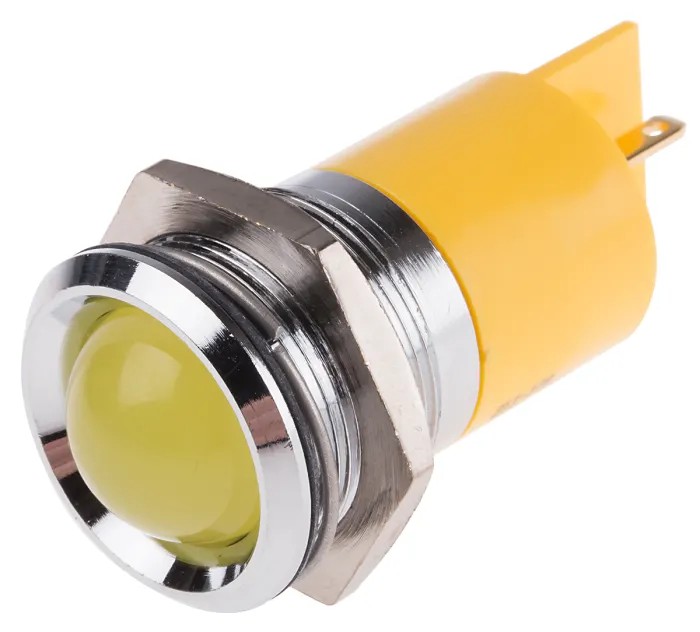

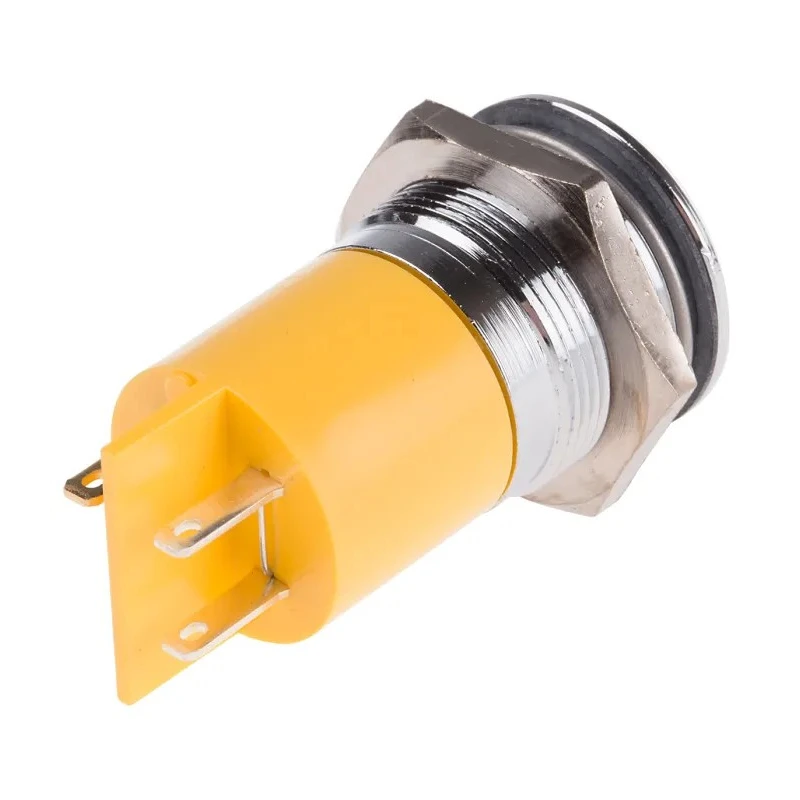

RS PRO Yellow Panel Mount Indicator 24V 20mA Solder Tab Termination Prominent Bezel 211-128

RS PRO 211-128 is a Yellow Panel Mount Indicator designed for industrial and electronic applications requiring reliable status indication at 24V and 20mA current consumption. This indicator features a prominent silver bezel with a 16mm colored diffused LED lens that provides high brightness output, ideal for clear visibility on control panels and circuit boards.

Constructed with a chrome bezel and durable materials, the indicator is rated IP67, offering protection against dust ingress and capable of withstanding immersion in water up to one meter for 30 minutes. This makes it suitable for use in harsh environmental conditions including industrial, manufacturing, HVAC, and laboratory equipment.

The compact length of 61mm and the 22mm mounting hole size allow easy integration into existing panel layouts. The solder tab termination simplifies installation, with two negative terminals facilitating daisy chaining of multiple indicators within a circuit.

Operating temperature tolerances range from -25°C to +60°C, supporting stable performance across varied climates and industrial settings. The LED indicator’s long life expectancy of 60000 hours ensures minimal maintenance and prolonged operational reliability.

This product is commonly used for electronic status signaling in machinery control, power equipment panels, instrumentation, and other applications that require visible indication with low power consumption.

The indicator’s IP67 rating protects against dust and immersion, enhancing durability in demanding environments. Solder tab connections enable secure, reliable electrical contact for flexible mounting options. The bright yellow LED lens provides strong visual indication with focused directional light output.

The prominent bezel styling adds mechanical robustness and aesthetic appeal on equipment enclosures. Low current consumption of 20mA reduces energy usage while maintaining effective brightness.

RS PRO indicators are manufactured to high-quality standards, supporting industrial and commercial use cases across electrical and electronic application domains. Browse our full range of LED indicators and panel mount components to meet your control panel design and signaling needs.
