Schurter 250V AC 2A Panel Mount IEC Connector Male 2 Fuse Solder 5707.0201.312

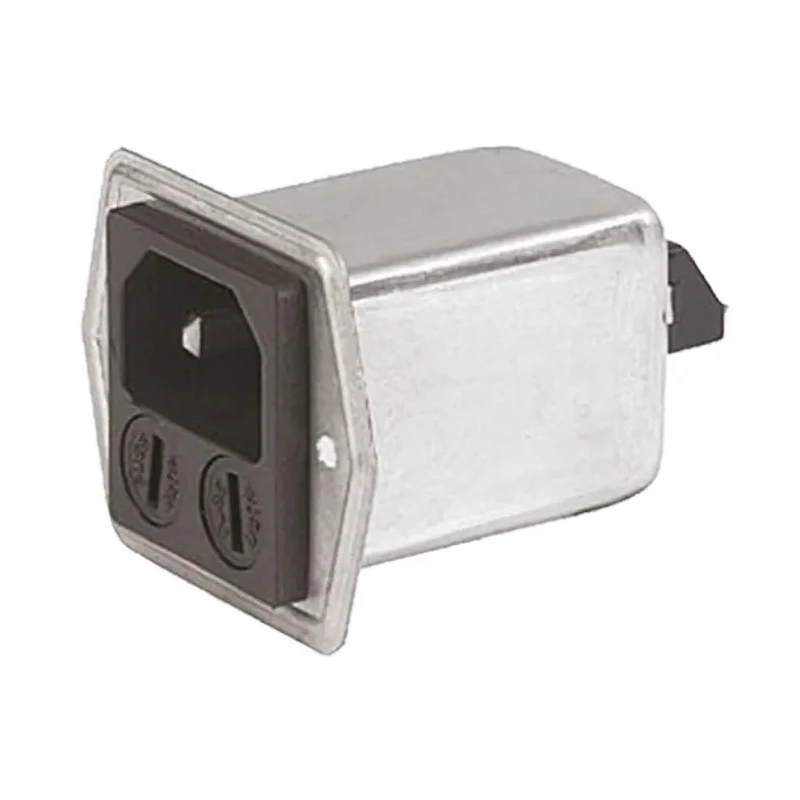

Schurter 5707.0201.312 is a high-performance panel mount IEC connector designed for 250V AC and 2A electrical power applications. This male connector belongs to the 5707 series, known for its robust construction and integrated line filter functionality.

The unit is equipped with two fuse holders compatible with 5 x 20 mm fuses, allowing enhanced safety by providing circuit protection in industrial and electronic equipment setups. It is designed to be securely mounted on panels with screw fittings that include sealing to offer IP65-level protection against dust and water ingress, making it suitable for harsh environments.

This connector features solder termination type connections and quick-connect terminals sized 6.3 x 0.8 mm, which facilitates easy and reliable wiring. It operates effectively in a temperature range from -25°C to 85°C and at a frequency of 60Hz, ensuring stable performance across diverse operating scenarios.

The compact dimensions of 51 mm width, 42 mm height, and 59.6 mm depth allow it to fit neatly within equipment panels without occupying excessive space. The IEC C14 type male connector is widely used in power supply chains, especially for medical, industrial, laboratory, and commercial electronic equipment requiring filtered mains input.

Schurter is recognized for producing quality components with conformity to international manufacturing standards, although this specific product does not carry additional certifications. The 5707 series provides a closed filter case ensuring high filtering performance for noise reduction in electrical systems.

This panel mount male IEC connector is rated 250V AC, 2A current. Includes dual fuse holders for 5 x 20 mm fuses enhancing protection. Features solder termination and quick connect terminals for ease of installation. Offers IP65 protection with sealed screw mounting for robust application in dust and moisture-prone areas.

Compact size compatible with standard panel cutouts, with dimensions 51x42x59.6 mm. Operates across a wide temperature range from -25°C to 85°C and at 60Hz frequency. Contains integral line filter for noise suppression in power lines.

This IEC Connector is ideal for use in industrial manufacturing, laboratory equipment, HVAC systems, water treatment plants, and other commercial electronics that require reliable filter integration and fuse protection. It ensures electrical safety compliance while maintaining efficient operation of connected devices.
