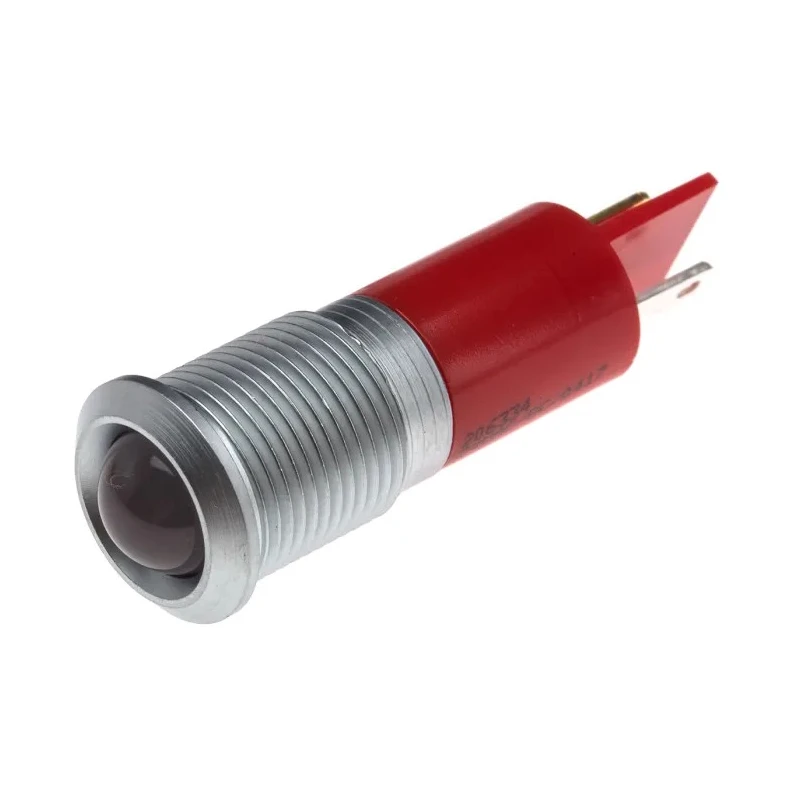

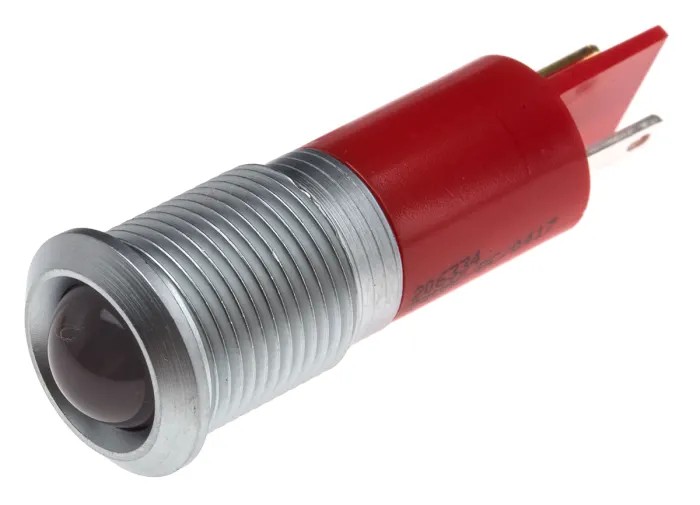

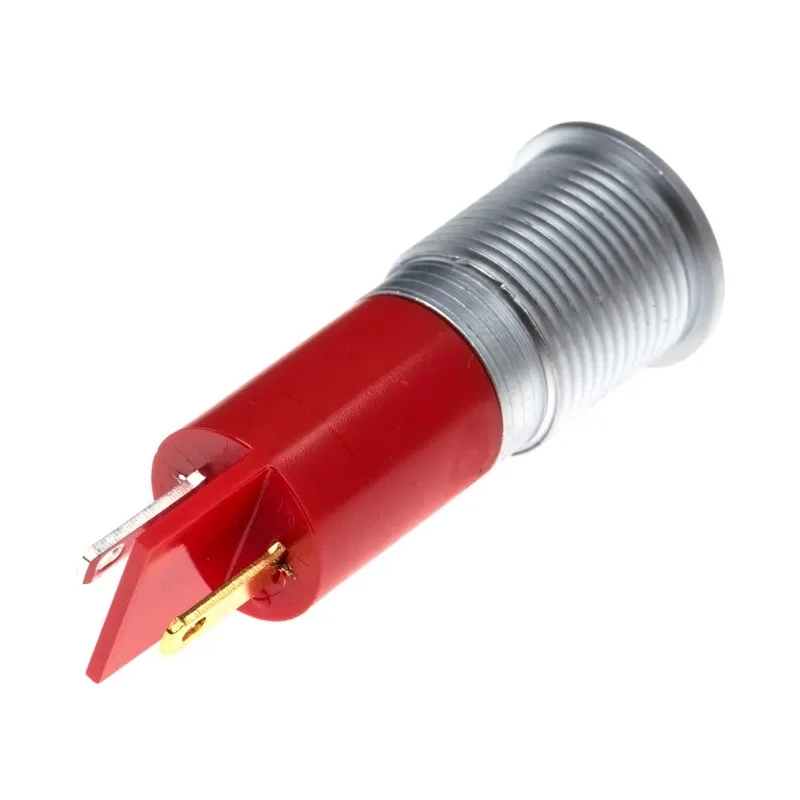

RS PRO Red Panel Mount Indicator, 12 V AC/DC, 20mA, Solder Tab Termination, IP67 Rated, Prominent Bezel 206-334
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 12, 12V ac |
| Brand | RS PRO |
| Current | 20mA |
| Length | 46mm |
| Model | 206-334 |
| IP Rating | IP67 |
| Termination Type | Solder Tab |
| Light Output Colour | Red |
| Bezel Style | Prominent |
| Bezel Colour | Silver |
| Mount Hole Size | 14 mm |
Key Features
- The indicator features a prominent silver bezel for enhanced visibility and durability.
- It employs solder tab termination for secure and convenient electrical connections.
- Rated at IP67, it offers excellent protection against dust and temporary water immersion.
- The high contrast 10 mm diffused epoxy lens ensures clear indication in various lighting conditions.
- Designed for applications requiring robust and long-lasting LED panel indicators both indoors and outdoors.
- Includes fixing nut, washer, and gasket for quick and easy installation.
- Compact 46 mm length and 14 mm mount hole size fit standard panel mounting requirements.
- LED technology provides low power consumption and extended service life.
Product Description
RS PRO 206-334 Red Panel Mount Indicator is an industrial-grade LED indicator designed for panel mounting applications requiring robust performance and high visibility. Operating at 12 V AC/DC voltage and drawing a low current of 20mA, this indicator provides reliable signaling for control panels, machinery status displays, and industrial equipment monitoring. It features a prominent silver bezel style, enhancing its visibility while providing mechanical protection.
This indicator is built to endure demanding environments with an IP67 rating, signifying dust-tight enclosure and protection against temporary water immersion up to 1 meter for 30 minutes. Such a rating makes it suitable for harsh indoor and outdoor applications where moisture and dust ingress could be concerns.
The device includes a 10 mm high contrast diffused epoxy lens which produces a bright red light output, ensuring the indicator signal is clear and unmistakable. The solder tab termination design facilitates simple and secure electrical connections during installation.
Mounting is straightforward due to the included fixing nut, washer, and gasket, which ensure a safe and stable attachment within panels. The unit measures 46 mm in length and fits into a 14 mm diameter mounting hole, adhering to standard panel indicator dimensions.
LED technology offers multiple benefits including longevity and energy savings over traditional incandescent or neon bulbs. LEDs operate at cooler temperatures and emit light directionally, reducing the need for additional optical components.
This panel mount indicator is ideal for industrial, manufacturing, control, electrical, and HVAC systems where clear and robust visual indication is essential for operational safety and efficiency.
The indicator features a prominent silver bezel for enhanced visibility and durability. It employs solder tab termination for secure and convenient electrical connections. Rated at IP67, it offers excellent protection against dust and temporary water immersion.
The high contrast 10 mm diffused epoxy lens ensures clear indication in various lighting conditions. Designed for applications requiring robust and long-lasting LED panel indicators both indoors and outdoors. Includes fixing nut, washer, and gasket for quick and easy installation.
Compact 46 mm length and 14 mm mount hole size fit standard panel mounting requirements. LED technology provides low power consumption and extended service life. Explore RS PRO and Panel Mount Indicator products at EnvMart for reliable industrial signaling solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage of 12 V AC/DC.
It draws a low current of 20mA during operation.
It has an IP67 rating, which means it is dust-tight and can withstand temporary water immersion up to 1 meter for 30 minutes.
It employs solder tab termination for secure and convenient electrical connections.
The mounting hole size required for this unit is 14 mm in diameter.
The indicator measures 46 mm in length.
It produces a bright red light output.
The unit includes a fixing nut, washer, and gasket for easy installation.
It is designed for both indoor and outdoor applications, especially in harsh environments where dust and moisture are concerns.
It features a prominent silver bezel that enhances visibility and provides mechanical protection.
The indicator uses a 10 mm high contrast diffused epoxy lens for clear indication.
It is suitable for control panels, machinery status displays, and industrial equipment monitoring.
