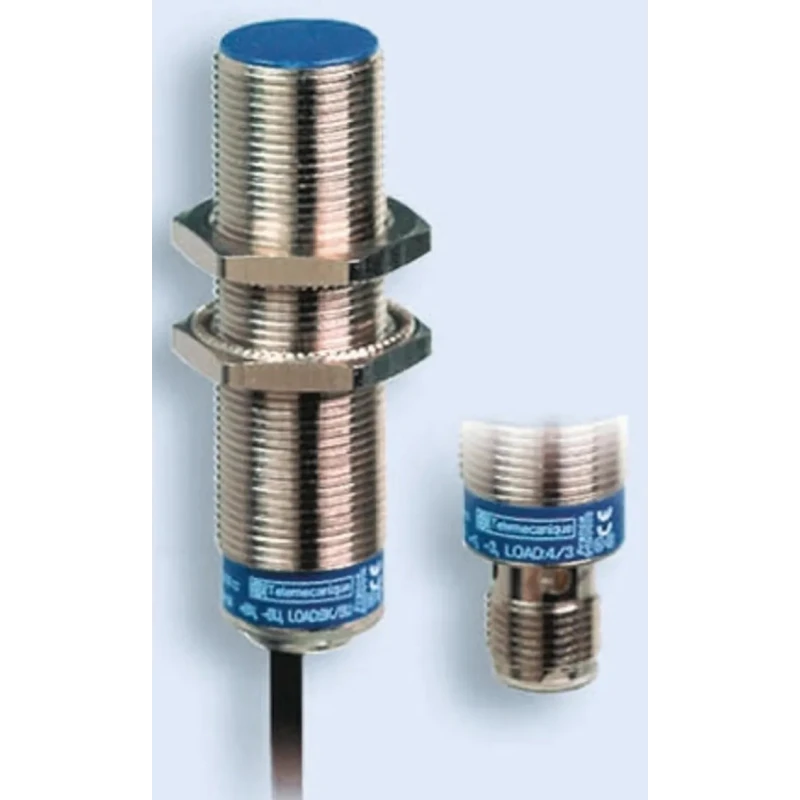

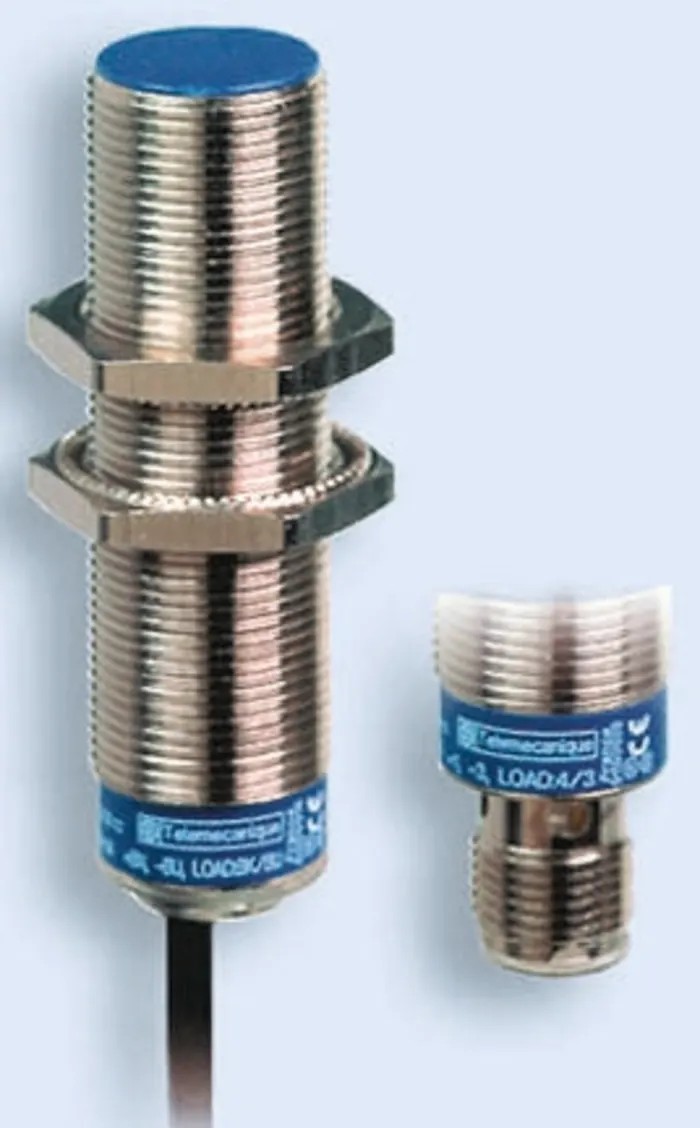

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M18 x 1 PNP 48V DC 8 mm Detection XS618B1PBM12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 74mm |
| Model | XS618B1PBM12 |
| IP Rating | IP69K |
| Mount Type | Flush |
| Housing Material | Nickel Plated Brass |
| Output type | PNP |
| Series | XS |
| Maximum Operating Temperature | 70°C |
| Thread Size | M18 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 58V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 1kHz |
| Standards/Approvals | CE, CSA, IEC, REACH, UL |
| Maximum Supply Voltage | 48V dc |
| Materials Detected | Metal |
| Maximum Detection | 8mm |
Key Features
- This sensor features a shielded cylindrical (threaded barrel) design for flush mounting and reliable metal sensing.
- It has a nominal sensing distance of 8 mm and operates on a supply voltage of 12 to 48 V DC with reverse polarity protection.
- The body is nickel plated brass with front detection PPS ensuring durability in demanding environments.
- The sensor supports a maximum switching frequency of up to 1 kHz and a switching current of 200 mA.
- Operating temperature ranges from -25°C to 70°C with resistance to vibration and shock conforming to IEC standards.
- Ingress protection rating is IP69K, suitable for harsh industrial environments with water and dust.
- It includes a 4-pin M12 male connector and an LED yellow indicator for output status.
- Certification includes CE, CSA, IEC, REACH, and UL compliance for global industrial standards.
Product Description
Telemecanique Sensors XS618B1PBM12 is a high-quality threaded barrel inductive proximity sensor designed for precision metal detection in industrial automation systems. Featuring a shielded M18 x 1 cylindrical nickel plated brass body with front detection PPS, it enables flush mounting and reliable sensing of metal objects up to 8 mm distance.
Equipped with a PNP discrete 3-wire output and a 4-pin M12 male connector, it operates on a supply voltage of 12 to 48 V DC with built-in reverse polarity protection, supporting currents up to 200 mA and maximum switching frequency of 1 kHz. Its robust design withstands operating temperatures from -25°C to 70°C and meets IP69K ingress protection for water and dust resistance.
The sensor conforms to multiple international standards and certifications including CE, CSA, IEC, REACH, and UL. It is vibration and shock resistant per IEC 60068 standards, ensuring durability in harsh industrial environments. This device is well-suited for automation and control gear applications in mobile and fixed machinery, providing accurate metal detection for improved operational reliability.
Shielded cylindrical threaded barrel design for flush mount installation. Maximum detection distance: 8 mm. Supply voltage range 12 to 48 V DC with reverse polarity protection. Nickel-plated brass housing with PPS front detection.
Maximum switching frequency of 1 kHz and switching current of 200 mA. Operating temperature from -25°C to 70°C with IP69K rating. 4-pin M12 male connector and yellow LED output indicator. Certified CE, CSA, IEC, REACH, and UL compliant.
Vibration and shock resistant per IEC standards. Length 74 mm; threaded length 52 mm; weight approx. 0.04 kg.
This Inductive Proximity Sensor is ideal for use in industrial automation, manufacturing, HVAC control systems, and mobile equipment where reliable metal detection is critical. Its rugged construction and compliance with global standards make it a dependable choice for precision sensing needs. Browse the Electronics & Electricals Sensors category at EnvMart to find complementary products and accessories for your automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this inductive proximity sensor is 8 mm.
This model operates on a supply voltage range of 12 to 48 V DC.
It features a PNP discrete 3-wire output.
The sensor has an ingress protection rating of IP69K, making it suitable for harsh environments.
This unit is designed to detect metal materials.
The maximum switching frequency is up to 1 kHz.
The operating temperature range is from -25°C to 70°C.
The housing is made of nickel-plated brass.
The weight of this model is approximately 0.04 kg.
It includes a 4-pin M12 male connector.
Yes, it is vibration and shock resistant according to IEC standards.
The sensor is certified compliant with CE, CSA, IEC, REACH, and UL standards.
