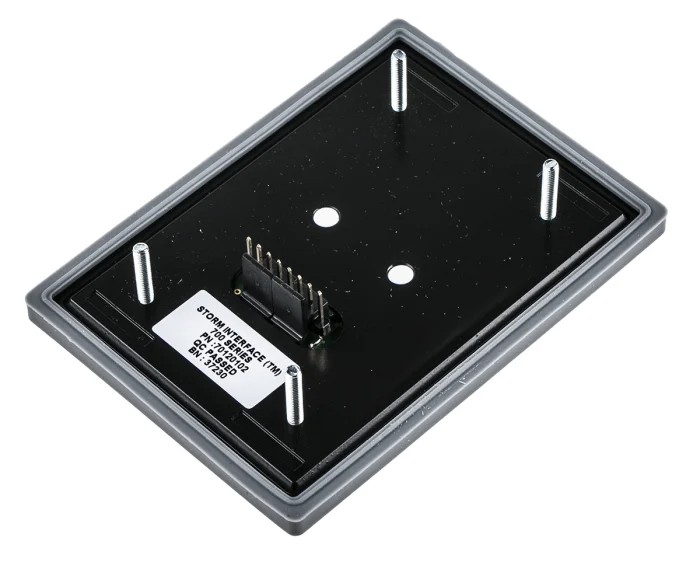

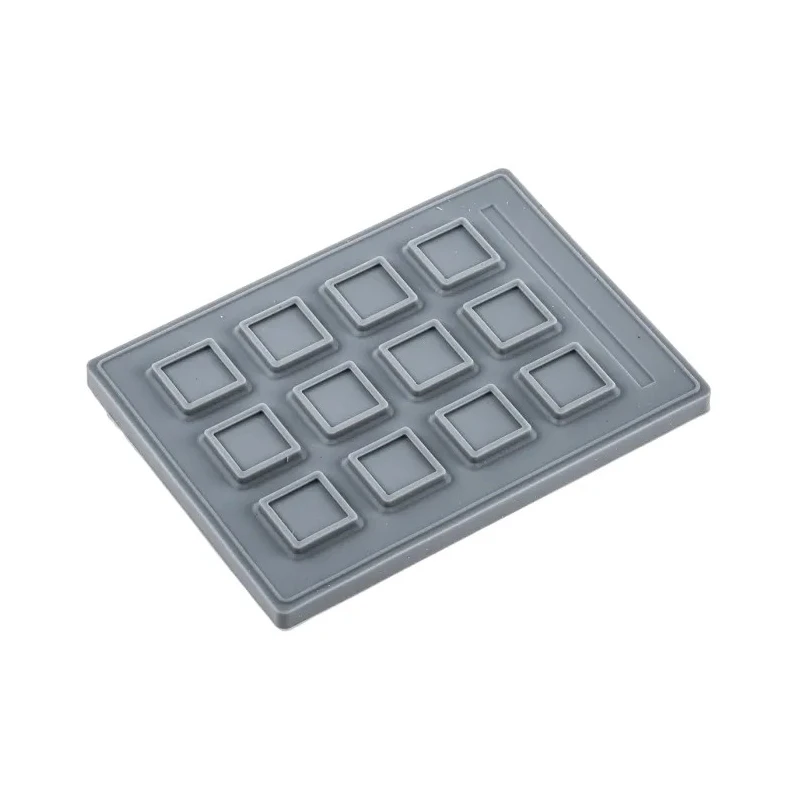

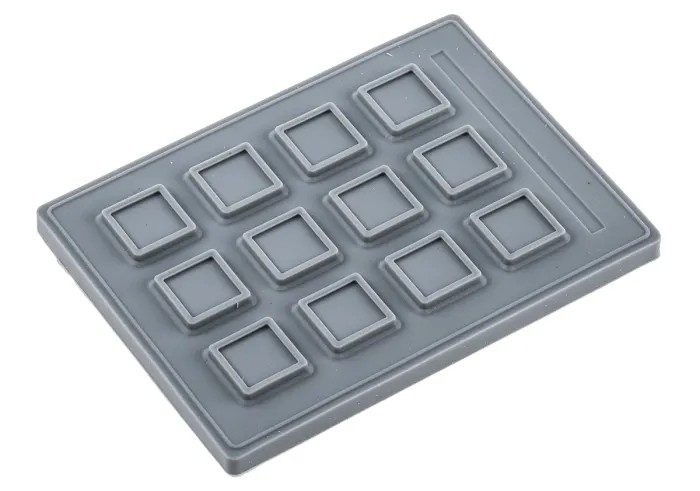

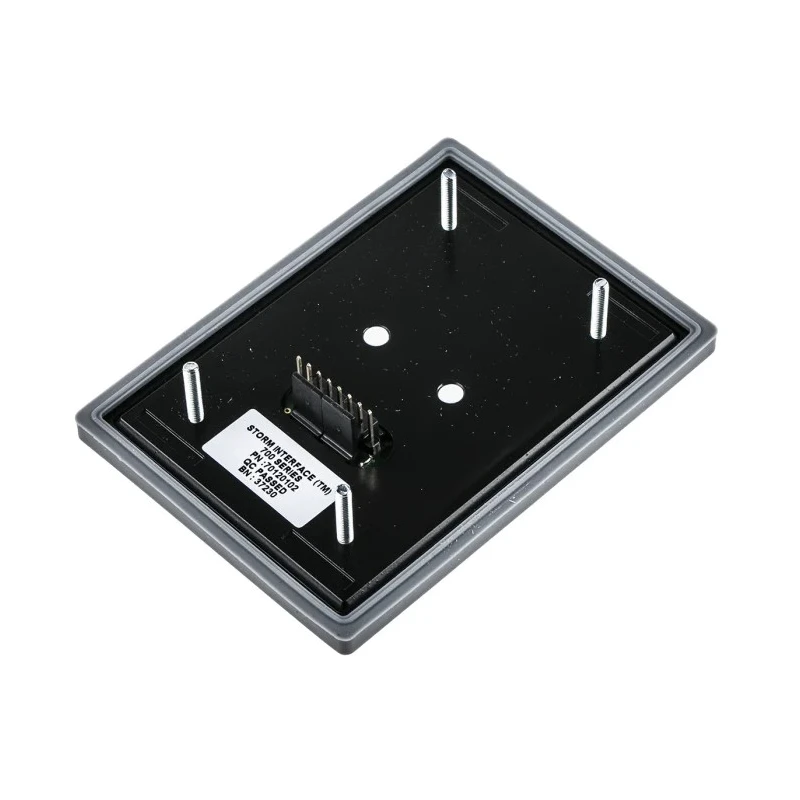

Storm IP67 12 Key Aluminium Keypad, 4x3 Layout, 20000 Operations Mechanical Life, Aluminium Housing and Actuator IP67 IP67

Storm IP67 12 Key Aluminium Keypad Model IP67 features a rugged aluminium housing and actuator designed for demanding industrial applications. It comprises 12 keys laid out in a 4 by 3 matrix format optimized for rapid and reliable data entry.

The keys utilize gold contacts on nickel plated glass reinforced polyester for enhanced durability and electrical performance, achieving a mechanical life of up to 20000 operations per key. The keypad is not illuminated, but is designed to withstand harsh conditions with an IP67 rating, providing total protection against dust and water ingress.

This keypad is engineered to operate across a broad temperature spectrum from minus 55 degrees Celsius to a maximum of 125 degrees Celsius, making it suitable for extreme environments including manufacturing facilities, food processing plants, medical or laboratory equipment, and other wet or dirty locations.

Installation is facilitated via a panel cutout measuring 96mm in height and 70mm in width. The keypad's robust construction, modular design, and compliance with RoHS and CE standards ensure reliability, safety, and environmental compliance.

12 key matrix layout arranged 4 by 3 for efficient input. Durable aluminium chassis and actuator material. Gold contacts with nickel plated GRP for longevity. IP67 rated for protection against dust and water. Mechanical life per key rated at 20000 operations.

Operating temperature range from -55°C to 125°C. Non-illuminated design for industrial use. Panel cutout dimensions: 96mm height, 70mm width. Compliance with RoHS and CE standards. Suitable for industrial, food processing, medical, and laboratory environments.

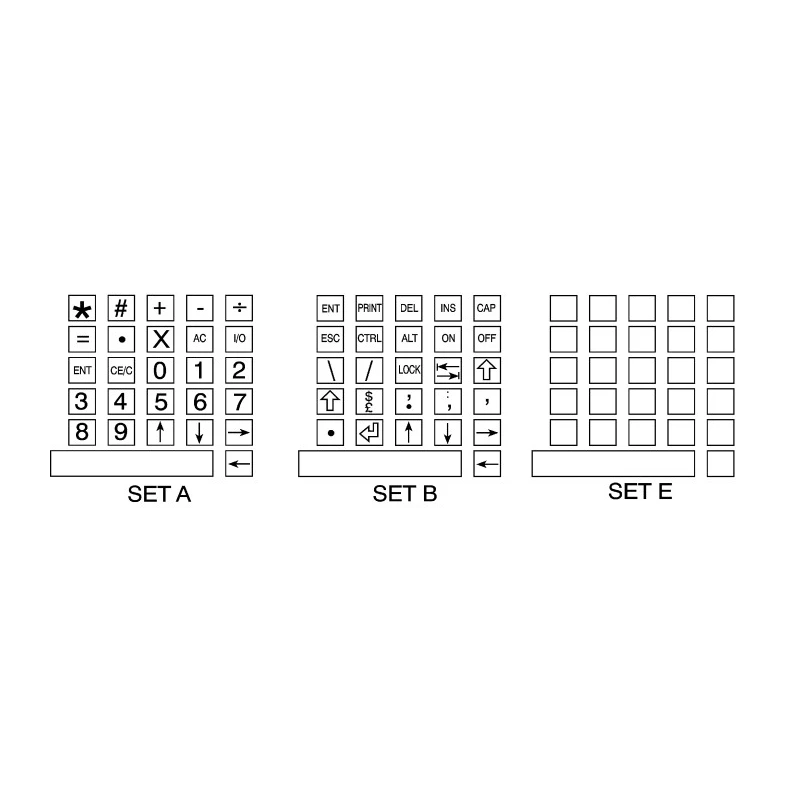

The Storm 700/900 series keypads provide a versatile and reliable interface solution for complex user input needs in challenging industrial settings. Their modular and configurable design allows for user customization when paired with separately supplied legend tiles.
