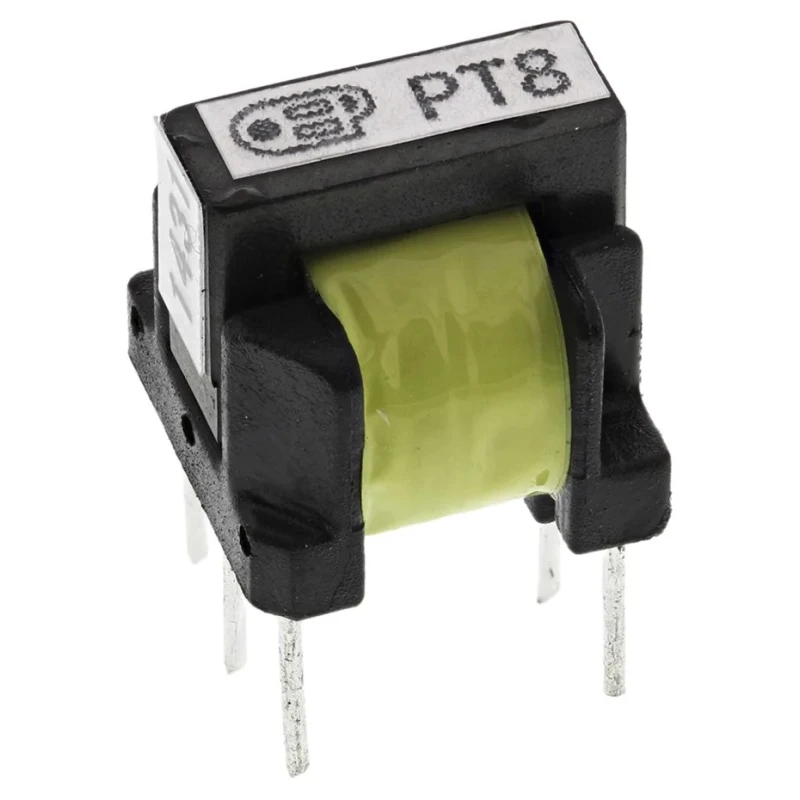

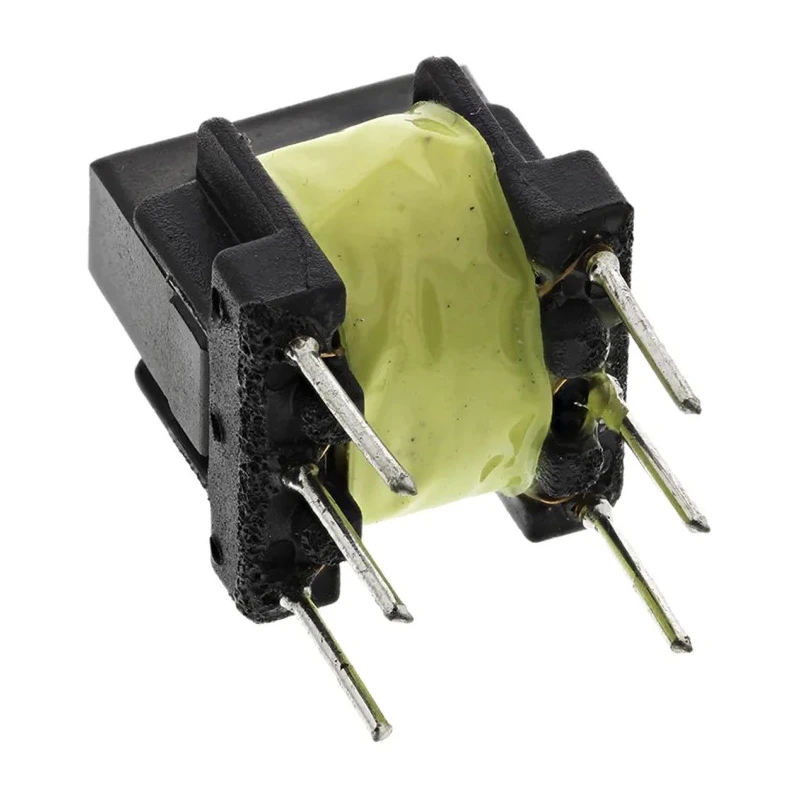

OEP Through Hole Pulse Transformer 2:1+1 Turns Ratio, 4Ω Primary Resistance PT8

OEP PT8 Through Hole Pulse Transformer is a high-frequency PCB mounting transformer designed for a variety of pulse and wide-band applications. It features a 2:1+1 turns ratio and a primary DC resistance of 4 ohms, making it ideal for use in thyristor and triac control circuits where electrical isolation between firing circuits and loads is critical.

The transformer supports a minimum operating frequency of 3 kHz and a maximum operating frequency of 1 MHz, enabling its use in advanced electronic and industrial control applications. With compact dimensions of 13 mm in length and width and 15 mm in depth, it is suitable for dense PCB assemblies and space-constrained environments.

The through-hole mounting type ensures robust mechanical and electrical connections on printed circuit boards, offering long-term reliability in demanding conditions. Encapsulation enhances durability and protects the internal windings from environmental factors.

Designed for use in industrial electronics, laboratory instrumentation, manufacturing systems, and power supply equipment, the PT8 pulse transformer provides dependable performance in isolation and signal transfer roles. Its use extends to power converters, control systems, and other electronic devices requiring galvanic isolation.

Features a 2:1+1 turns ratio for precise signal transformation. Primary DC resistance rated at 4 ohms ensuring low power loss. Operates within a frequency range of 3 kHz to 1 MHz suitable for high-frequency circuits. Compact dimensions measuring 13 mm length, 13 mm width, and 15 mm depth.

Through-hole mounting design for secure PCB installation. Encapsulated construction providing electrical isolation and durability. Commonly used in thyristor and triac control systems for load isolation. Manufactured in China to meet industrial quality standards.

Suitable for industrial, laboratory, and electronic component manufacturing applications. Explore a wide selection of Pulse Transformers at EnvMart to support your electronic design and manufacturing needs.
