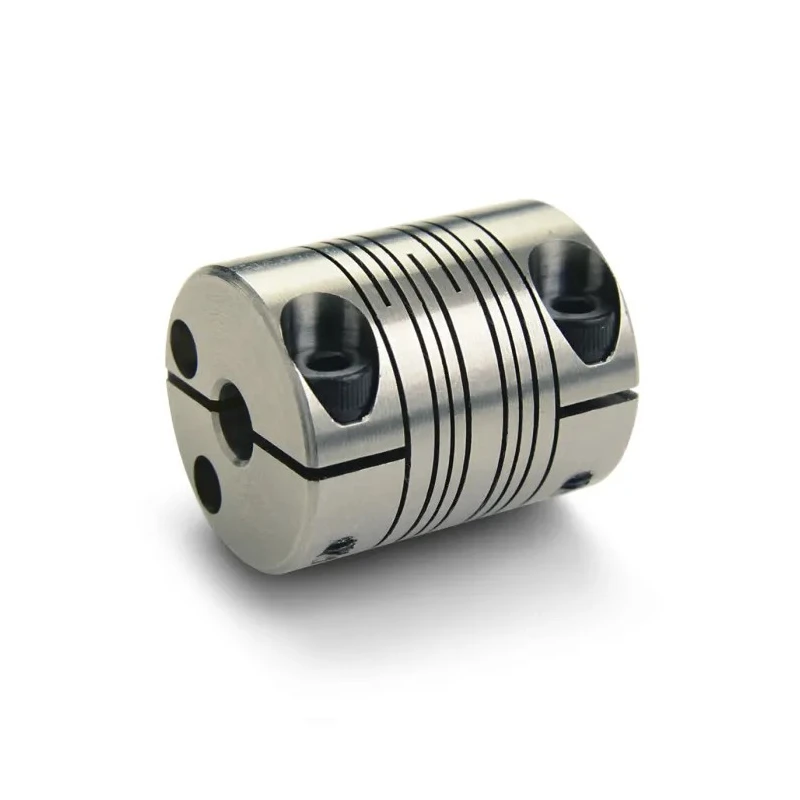

Ruland Stainless Steel Flexible Shaft Clamp Coupler 25 mm OD, 6 mm Bore, 24 mm Length, Max Speed 6000rpm MWC25-6-6-SS

Free Delivery in India | Lowest Global Shipping Charges

Ruland Stainless Steel Flexible Shaft Clamp Coupler 25 mm OD, 6 mm Bore, 24 mm Length, Max Speed 6000rpm MWC25-6-6-SS

Name: Ruland Stainless Steel Flexible Shaft Clamp Coupler 25 mm OD, 6 mm Bore, 24 mm Length, Max Speed 6000rpm MWC25-6-6-SS
Brand: Ruland
SKU: 148277
Price: 110.36 USD
Availability: InStock



Category Mechanical Power Transmission Couplings Brand Ruland Condition New

Specifications

Country of Origin	United States
Screw Size	M4
Brand	Ruland
Material	Stainless Steel
Length	24mm
Model	MWC25-6-6-SS
Maximum Speed	6000rpm
Number of Beams	4
Series	MW
Outside diameter	25mm
Maximum Operating Temperature	176°C
Minimum Operating Temperature	-40°C
Torque Rating	3.42Nm
Standards/Approvals	DIN 912 12.9, REACH, RoHS3
Misalignment - Angular	3°
Misalignment - Parallel	0.38mm
Misalignment - Axial	0.25mm
Bore Size B	6mm
Huco, 20 mm OD 6 mm, 31 mm Length Coupler 6 mmBrand	Huco

Key Features

Constructed from stainless steel for corrosion resistance and durability.
Provides maximum rotational speed of 6000 rpm with zero backlash.
Clamp style fixation using socket head cap screws for secure mounting.
Supports 3° angular and 0.38 mm parallel misalignment tolerances.
Torque capacity rated at 3.42 Nm for reliable power transmission.
Operating temperature range from -40°C to 176°C for versatile use.
Compact dimensions with 25 mm outside diameter and 24 mm length.
Four-beam design ensures torsional rigidity and smooth operation.

Product Description

Ruland MWC25-6-6-SS is a stainless steel flexible shaft clamp coupler designed for high precision mechanical power transmission. Featuring a sturdy four-beam design, this one-piece coupling eliminates mechanical joints and potential failure points, providing torsionally rigid, zero backlash operation suitable for both high and low speed applications up to 6000 rpm.

The clamp style fixing uses socket head cap screws securing the coupler firmly to shafts with 6 mm bore sizes on both ends. Allowing up to 3° angular, 0.38 mm parallel, and 0.25 mm axial misalignment, it offers excellent flexibility for varied installation conditions without compromising torque transmission rated at 3.42 Nm.

Manufactured from corrosion-resistant stainless steel, this coupling performs reliably within an operating temperature range from -40°C to 176°C. It meets DIN 912 12.9, REACH, and RoHS3 standards, ensuring compliance with international quality and safety norms.

Typical industrial applications include robotics, stepper motors, encoders, measuring instruments, servo systems, pumps, valves, and fans. The robust design does not require lubrication or complex maintenance.

Its compact dimensions - 25 mm outside diameter, 24 mm length, and 6 mm bore sizes - make it ideal for space-constrained systems requiring high torque capacity and durability. Constructed from stainless steel for corrosion resistance and durability.

Provides maximum rotational speed of 6000 rpm with zero backlash. Clamp style fixation employing socket head cap screws for secure mounting. Supports 3° angular, 0.38 mm parallel, and 0.25 mm axial misalignment tolerances.

Torque capacity rated at 3.42 Nm for reliable power transmission. Operating temperature range from -40°C to 176°C for versatile industrial use. Compact and robust one-piece four-beam design enhances torsional rigidity. Complies with DIN 912 12.9, REACH, and RoHS3 standards.

Ideal for encoders, servo systems, stepper motors, pumps, and robotics applications. Explore the Mechanical Power Transmission Couplings category on EnvMart for similar high-quality, reliable couplers to meet your industrial needs.
