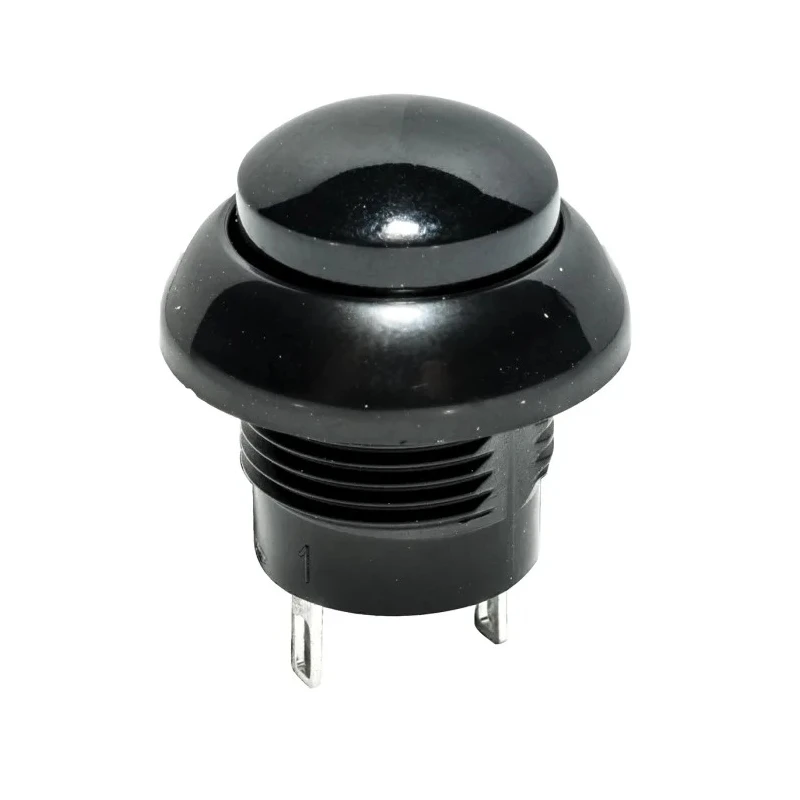

C & K Push Button Switch Momentary Panel Mount SPDT IP68 32 V dc 12.3 mm Cutout PNP8E2D2C03QE
Specifications
| Country of Origin | China |
|---|---|
| Brand | C & K |
| Length | 304.8mm |
| Model | PNP8E2D2C03QE |
| IP Rating | IP68 |
| Mount Type | Panel |
| Series | PNP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12.3 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 32V dc |
| Actuator Style | Push Button |
| Switch Contact Current | 5A |
Key Features
- Black actuator color provides a standard visual aesthetic.
- Momentary switch operation ensures temporary contact closure during actuation.
- Panel mount type designed for secure installation into equipment panels.
- Solder terminal type facilitates reliable wiring connections.
- Sealed IP68 rating ensures protection against dust and water ingress for harsh environments.
- Operates at a contact DC voltage of 32 V dc and contact current rating of 5 A.
- Compression resistant design capable of withstanding temperatures from -40°C to 85°C.
- Certified RoHS compliant, ensuring environmental safety standards.
Product Description
The C & K PNP8E2D2C03QE push button switch is a momentary panel mount switch designed for industrial, electrical, and automation applications. Featuring a compact 12.3 mm panel cutout and a robust black push button actuator, this switch offers reliable electrical contact with a SPDT (Single Pole Double Throw) configuration. Its IP68 sealing provides exceptional protection against harsh environmental factors such as dust and water ingress, making it suitable for use in off-road panels, heavy equipment, industrial instruments, and lifts.
Constructed for demanding conditions, the switch operates within an extended temperature range of -40°C to 85°C. The solder terminals facilitate straightforward wiring, while the switch is rated for a contact current of 5 A at 32 V dc, suitable for switching low power signals and control circuits.
C & K’s PNP series push buttons are known for their durability, including a mechanical life expectancy of up to 1,000,000 cycles. These switches are compliant with RoHS directives, ensuring minimal environmental impact. The longer solder leads ease wire installation during panel assembly processes.
Black actuator color provides a standard visual aesthetic. Momentary switch operation ensures temporary contact closure during actuation. Panel mount type designed for secure installation into equipment panels. Solder terminal type facilitates reliable wiring connections.
Sealed IP68 rating ensures protection against dust and water ingress for harsh environments. Operates at a contact DC voltage of 32 V dc and contact current rating of 5 A. Compression resistant design capable of withstanding temperatures from -40°C to 85°C.
Length of the switch is 304.8 mm for installation planning. Certified RoHS compliant, ensuring environmental safety standards.
Typical applications for this Push Button Switch include control grips, off-road vehicle panels, heavy equipment control interfaces, industrial instrumentation, and elevator systems. Its durable construction and sealing allow operation in environments requiring ingress protection and reliability for repetitive control actions.
Explore more industrial switches and push button components at EnvMart for reliable and high-quality electrical controls.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
This model can operate at a maximum temperature of 85°C, making it suitable for demanding environments.
It has an IP68 rating, providing exceptional protection against dust and water ingress in harsh conditions.
The required panel cutout size for installation is 12.3 mm, ensuring a proper fit in equipment panels.
The switch operates at a contact DC voltage of 32 V and has a contact current rating of 5 A.
It utilizes solder terminals, which facilitate reliable wiring connections during installation.
This model features momentary switch operation, ensuring temporary contact closure during actuation.
The length of the switch is 304.8 mm, which is important for installation planning.
The minimum operating temperature for this switch is -40°C, allowing it to function in extreme cold conditions.
Yes, it is certified RoHS compliant, ensuring it meets environmental safety standards.
Typical applications include control grips, off-road vehicle panels, heavy equipment control interfaces, and industrial instrumentation.
The actuator color is black, providing a standard visual aesthetic for panel installations.
