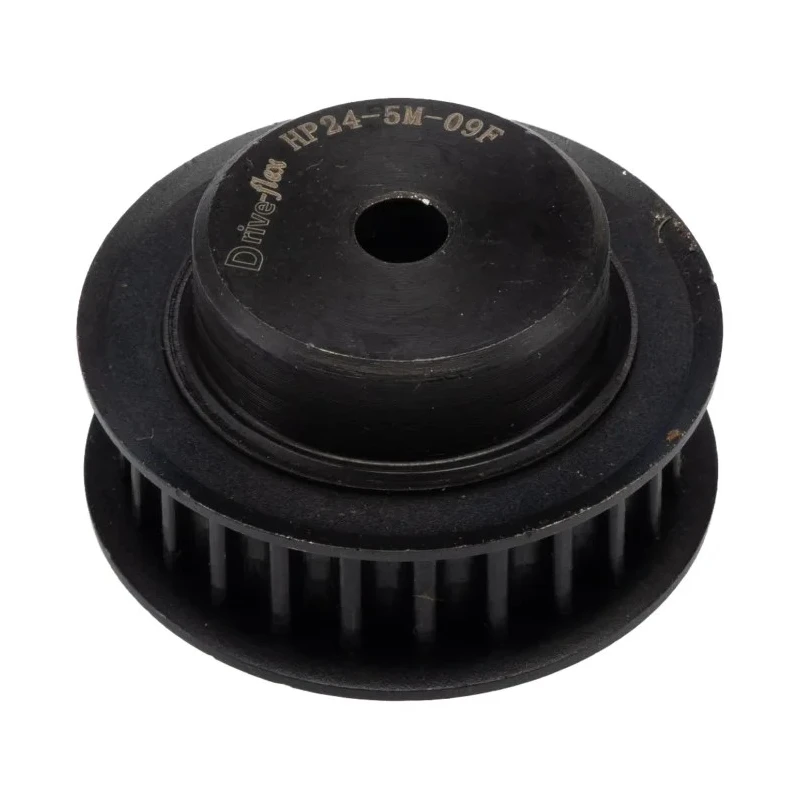

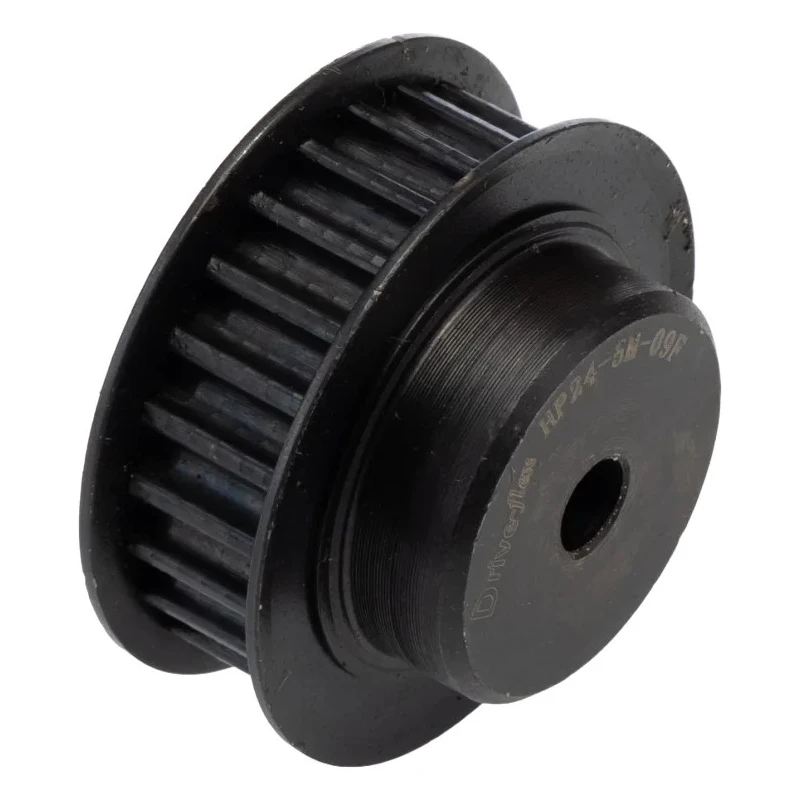

RS PRO Steel Timing Belt Pulley 9 mm Belt Width 5 mm Pitch 24 Tooth PB PULLEY 5M-09MM 24T

RS PRO PB PULLEY 5M-09MM 24T is a steel timing belt pulley specifically engineered for synchronous HTD belt systems. It features a robust steel construction with a flange to secure belts effectively, supporting an acceptable belt width of 9 mm and a pitch of 5 mm across 24 precision-cut teeth. This pulley has a pilot bore of 6 mm diameter, allowing customization for different shaft sizes through re-boring. The flange diameter is 42 mm, with a pitch circle diameter of 38.2 mm and an outside diameter of 37.06 mm. The pulley width measures approximately 14.5 mm, providing solid belt support and durability in various mechanical power transmission applications.

This timing belt pulley is widely used in industrial sectors including manufacturing, construction, HVAC systems, and agricultural machinery where synchronous motion and timing accuracy are essential. Its steel material ensures long-lasting performance in demanding environments with high mechanical loads.

The flanged design minimizes belt slippage and enhances belt tracking, making it suitable for continuous duty cycles in conveyor systems, automated machinery, and power transmission setups. The pilot bore facilitates easy integration with existing shaft designs, improving adaptability.

Manufactured from high strength steel ensuring durability and wear resistance. Designed for use with 5 mm pitch synchronous HTD timing belts. 24 teeth provide precise mechanical timing. 9 mm belt width compatibility supports standard belt sizes.

Flanged with a 42 mm flange diameter to prevent belt derailment. 6 mm pilot bore allows precise shaft mounting and re-boring. Suitable for diverse industrial applications including manufacturing and HVAC. Originates from China, complying with industrial manufacturing standards.

This RS PRO timing belt pulley combines material strength and precision design to ensure reliable and efficient power transmission. Its versatility makes it an essential component for mechanical engineers and maintenance professionals looking to optimize the performance of their machinery.
