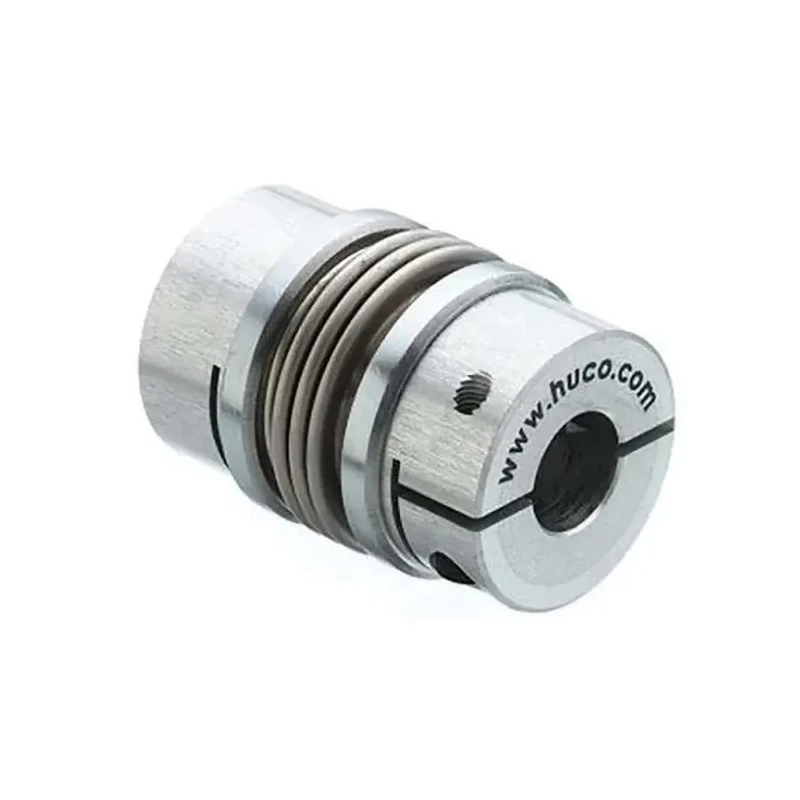

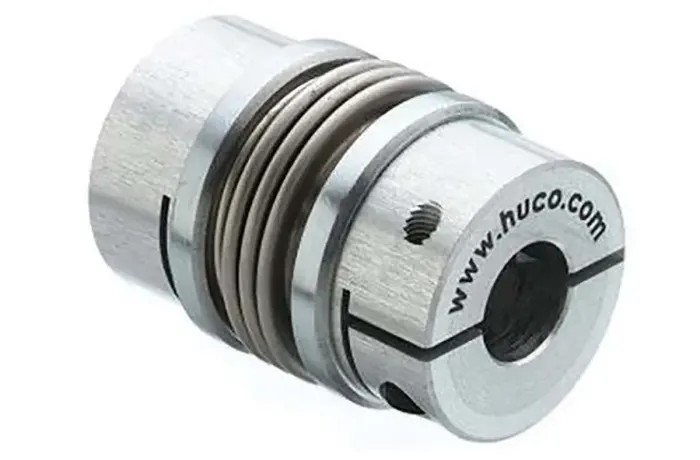

Huco 45 mm OD Coupler 19 mm Bore 71 mm Length Aluminium Clamp Bellows Flexible Coupling 593.45.4646
Specifications
| Country of Origin | India |
|---|---|
| Screw Size | M5 |
| Brand | Huco |
| Length | 71mm |
| Maximum Speed | 12800rpm |
| Series | Flex K |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -30°C |
| Torque Rating | 18Nm |
| Hub Material | Aluminium |
| Misalignment - Angular | 2° |
| Misalignment - Parallel | 0.25mm |
| Misalignment - Axial | 0.5mm |
| Bellows Material | Stainless Steel |
| Torsional Stiffness | 15000Nm/rad |
| Bore Size B | 19mm |
Key Features
- Constructed with aluminium alloy hubs for lightweight strength.
- Features stainless steel bellows for durability and flexibility.
- Designed to operate between temperatures of -30°C and 120°C.
- Clamp style connection ensures secure and removable shaft fixation.
- Supports maximum speed up to 12800 rpm for high-performance applications.
- Torque rating of 18 Nm and torsional stiffness of 15000 Nm/rad.
- Allows angular misalignment up to 2°, parallel misalignment of 0.25 mm, and axial misalignment of 0.5 mm.
- Includes M5 screw size for mounting.
Product Description
Huco 593.45.4646 is a precision bellows flexible coupler engineered for mechanical power transmission systems requiring high torsional stiffness and excellent kinematic properties. The coupler features aluminium alloy hubs with a 45 mm outer diameter and 19 mm bore sizes on both sides. Its clamp style removable shaft connection provides reliable and maintenance-friendly assembly.
Constructed with stainless steel bellows, this coupler tolerates operating temperatures ranging from -30°C to 120°C, making it suitable for challenging industrial environments. It accommodates misalignments including angular (up to 2°), parallel (0.25 mm), and axial (0.5 mm), ensuring smooth power transmission despite alignment discrepancies.
The coupler supports a maximum rotational speed of 12800 rpm and a torque rating of 18 Nm, along with a torsional stiffness rating of 15000 Nm/rad, combining performance and durability. The included M5 screw size facilitates secure fastening of the coupling assembly.
Commonly used in automation, mechanical power transmission, fluid power, and manufacturing equipment, the Huco flexible coupler ensures precise and reliable motion transfer with compensations for shaft misalignments. This product is manufactured under the Flex K series and adheres to no specific standards or certifications.
Constructed with aluminium alloy hubs for lightweight strength. Features stainless steel bellows for durability and flexibility. Designed to operate between temperatures of -30°C and 120°C. Clamp style connection ensures secure and removable shaft fixation.
Supports maximum speed up to 12800 rpm for high-performance applications. Torque rating of 18 Nm and torsional stiffness of 15000 Nm/rad. Allows angular misalignment up to 2°, parallel misalignment of 0.25 mm, and axial misalignment of 0.5 mm.
Includes M5 screw size for mounting. Ideal for mechanical power transmission in industrial automation and fluid power systems. Explore more Mechanical Power Transmission components and flexible couplers in the Huco range at EnvMart for industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum rotational speed supported by this model is 12800 rpm, making it suitable for high-performance applications.
This coupler has a 45 mm outer diameter, a 19 mm bore size, and a length of 71 mm.
The hubs are made from aluminium alloy, while the bellows are constructed from stainless steel, providing durability and flexibility.
The torque rating for this flexible coupler is 18 Nm, allowing it to handle significant loads in mechanical power transmission applications.
It can accommodate angular misalignment up to 2°, parallel misalignment of 0.25 mm, and axial misalignment of 0.5 mm.
This model is designed to operate between temperatures of -30°C and 120°C, making it suitable for various industrial environments.
The torsional stiffness of this coupler is rated at 15000 Nm/rad, providing high resistance to twisting under load.
The coupler includes an M5 screw size for secure fastening during installation.
This model belongs to the Flex K series, which is designed for high-performance mechanical power transmission.
It is commonly used in automation, mechanical power transmission, fluid power, and manufacturing equipment.
It utilizes a clamp style connection, ensuring secure and removable shaft fixation for maintenance-friendly assembly.
This flexible coupling is manufactured in India.
