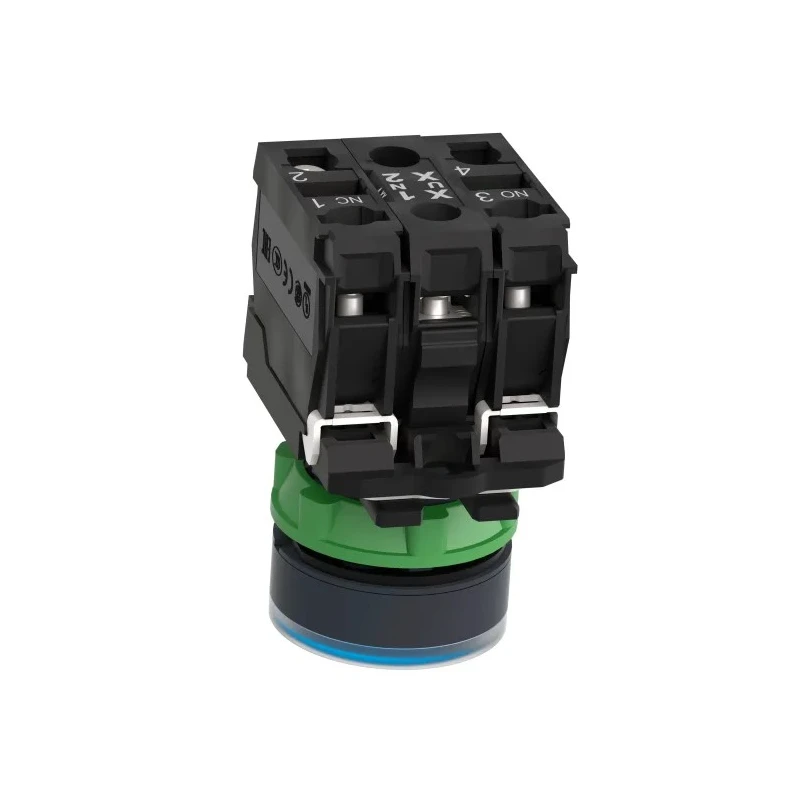

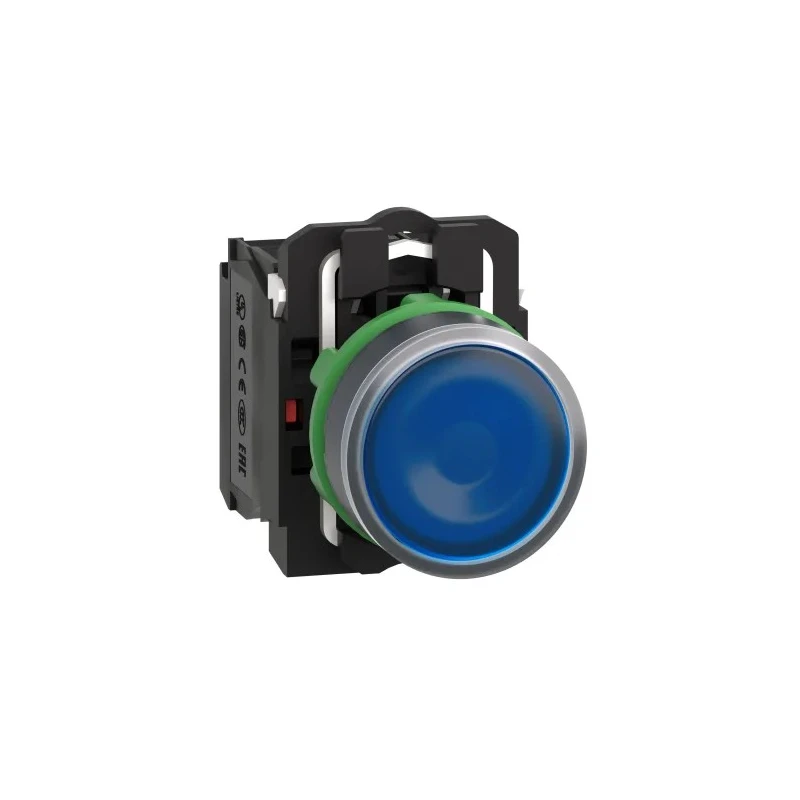

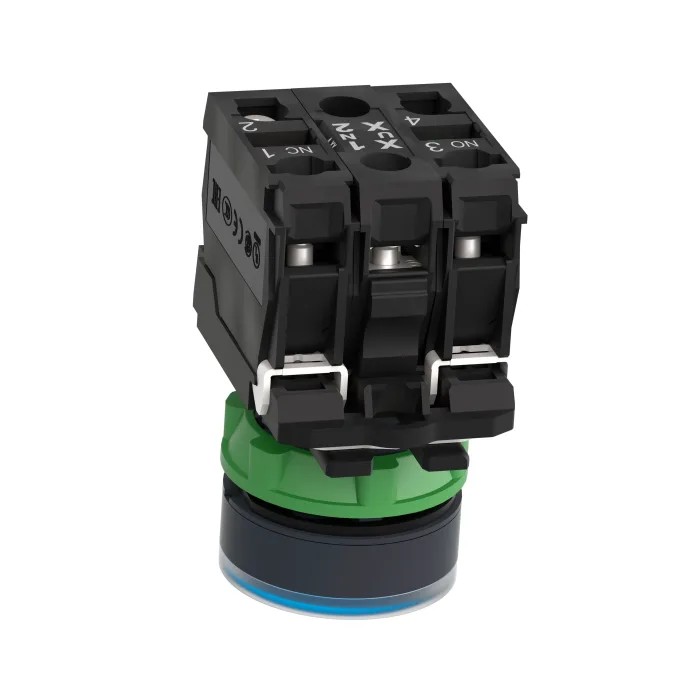

Schneider Electric Harmony XB5 Series Illuminated Push Button Switch, Slide Operation, Panel Mount, 22 mm Cutout XB5AW36G5

Schneider Electric XB5AW36G5 Harmony XB5 Series Illuminated Push Button Switch is engineered for industrial and control applications requiring dependable operator input and efficient panel mounting. This slide-operated push button features a blue round actuator with a 22 mm cutout, enabling straightforward installation and integration into control panels.

Designed with SPDT contact configuration and a blue LED illumination, it provides distinct visual feedback essential for automation and machinery control. Rated for high voltages up to 600V for both AC and DC applications, this push button is suitable for a variety of electrical systems, enhancing operational safety and reliability.

The robust construction offers exceptional durability with protection ratings of IP66, IP67, and IP69K, making the switch resistant to dust, water, and high-pressure washdowns. Screw clamp terminals guarantee firm electrical connections, facilitating maintenance and installation.

Operating efficiently across temperatures from -40°C to 70°C, the switch endures varying environmental conditions typical in industrial settings. Dimensions of 57 mm length, 30 mm width, and 42 mm height ensure it fits compactly within panels.

Fully compliant with international standards such as EN/IEC 60947-5-1, CSA C22.2 No 14, and UL 508, this product aligns with strict quality and safety requirements. It also carries the Better World claim for repairability by the end user, supporting sustainable practices.

Designed for panel mounting with a compact 22 mm cut-out diameter for easy installation. Features a slide switch operation with a durable round actuator in blue color. Offers SPDT contact configuration suitable for diverse control applications.

Equipped with a blue LED indicator for clear visual status indication. Rated for high voltage usage up to 600V AC/DC ensuring safety and versatility. Constructed to withstand harsh environments with IP66, IP67, and IP69K ingress protection ratings.

Uses screw clamp terminals for secure and robust electrical connections. Operates reliably in a broad temperature range from -40°C to 70°C. Compact dimensions: 57 mm length, 30 mm width, and 42 mm height for seamless panel integration.

Complies with multiple international standards including EN/IEC 60947 series and UL 508.

This illuminated push button switch is widely used to control motors and machinery in industrial environments, providing reliable operator input and consistent visual feedback. It is ideal for automation tasks and electrical systems requiring durable user interfaces with high safety ratings. Incorporate this Schneider Electric Harmony XB5 series switch into your control panels for enhanced operational performance and compliance with stringent industrial standards.
