RS PRO 30W 24V DC Output Centre Positive AC/DC Adapter with Universal Plug and 2.1 x 5.5 x 12 mm Connector 144-0957

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 30W 24V DC Output Centre Positive AC/DC Adapter with Universal Plug and 2.1 x 5.5 x 12 mm Connector 144-0957

Name: RS PRO 30W 24V DC Output Centre Positive AC/DC Adapter with Universal Plug and 2.1 x 5.5 x 12 mm Connector 144-0957
Brand: RS PRO
SKU: 146397



Category AC/DC Adapters Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Power	30W
Efficiency	86.95%
Length	52mm
Model	144-0957
Depth	36mm
Cable Length	6ft
Width	101mm
Series	RS PRO
Maximum Operating Temperature	40°C
Sub Type	AC/DC Adapter
Load Regulation	±5 %
Minimum Operating Temperature	0°C
Plug Type	Australia, EU, UK, US
Number of outputs	1
Maximum Input Voltage	240V ac
Output Voltage	24V dc
Standards/Approvals	cULus, CE, CCC, UL, TUV, FCC
Minimum Input Voltage	100V ac
Output Connector Type	2.1 x 5.5 x 12 mm Centre Positive
Input Connector Type	Universal Plug
Adapter Current	1.25A
Energy Efficiency Level	VI
Regulated/Unregulated	Regulated
MEAN WELL AC/DC Adapter 264V ac Output 1.25 A, 24 V dcBrand	MEAN WELL
RS PRO 30W AC/DC Adapter 24V dc Output, 1.25A OutputBrand	RS PRO

Key Features

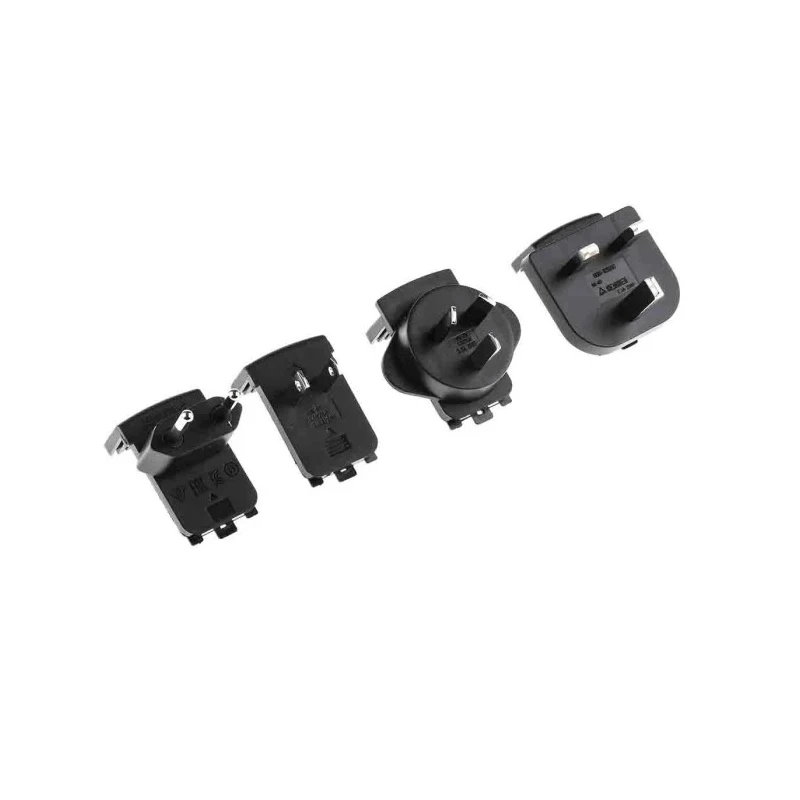

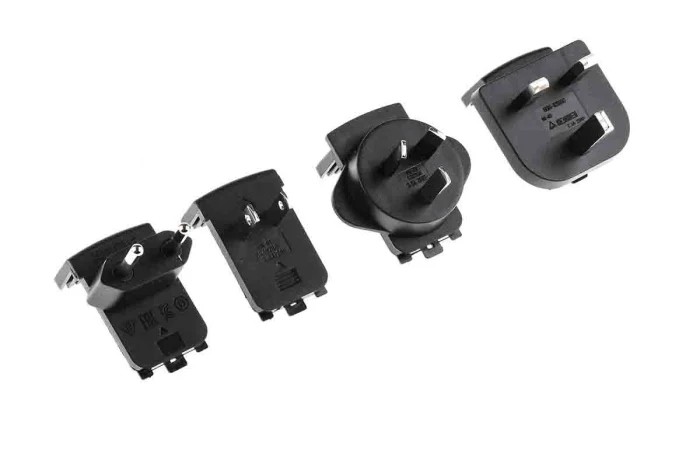

Supplied with interchangeable AC plug tops for Australia, EU, UK, and US markets.
Rated input voltage from 100V to 240V AC providing wide compatibility.
Equipped with over voltage, over current, and short circuit protection.
Compact and lightweight design ensures ease of use and portability.
Designed to operate in ambient temperatures from 0°C to 40°C.
High efficiency of approximately 86.95% for energy savings.
Includes a 6 ft cable length for flexible installation.
Regulated output ensures stable voltage with load regulation of ±5%.

Product Description

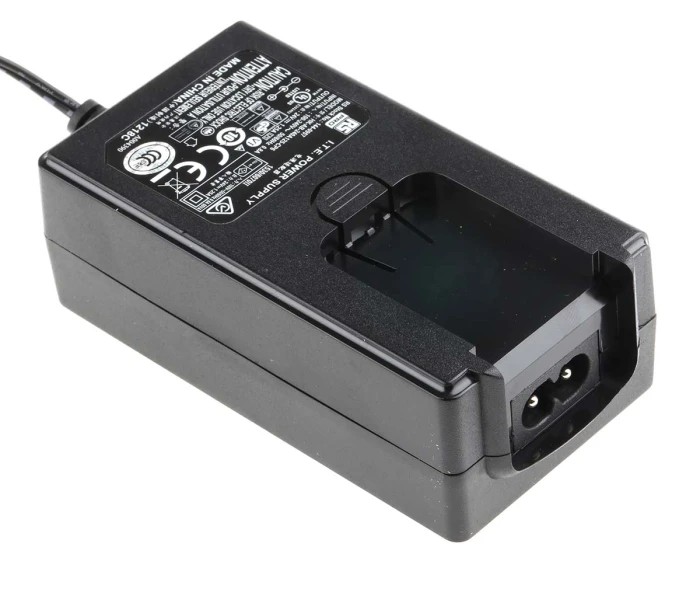

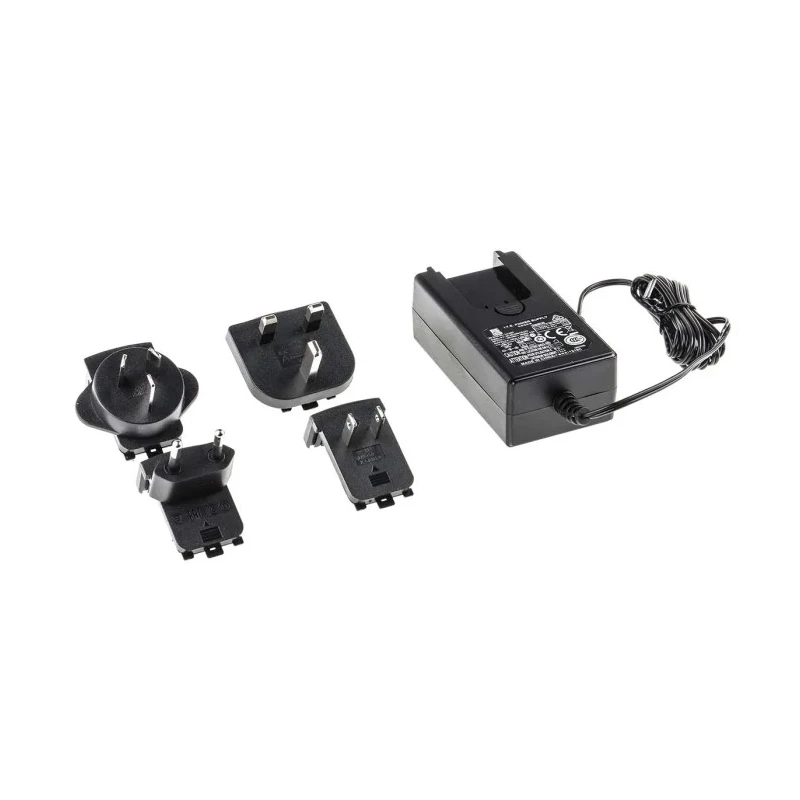

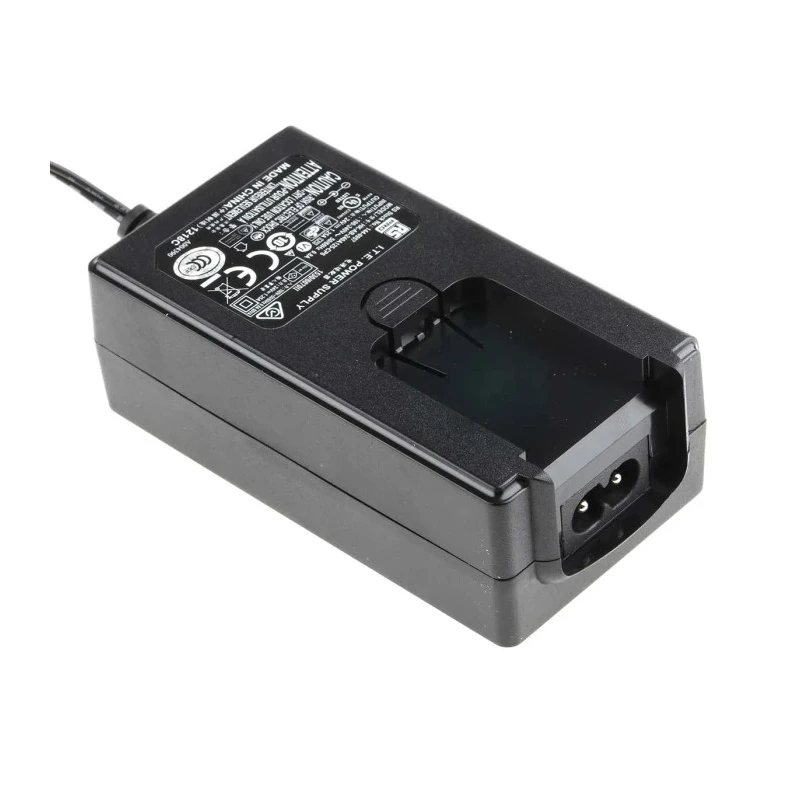

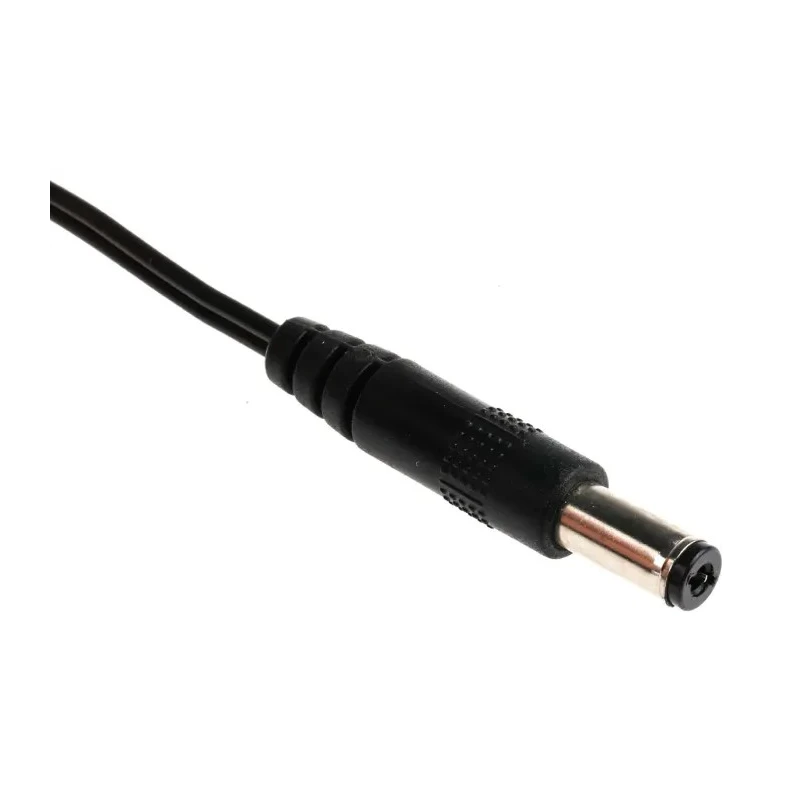

RS PRO 144-0957 AC/DC Adapter delivers 30W of regulated power with a 24V DC output, featuring a 2.1 x 5.5 x 12 mm centre positive connector and universal plug type suitable for Australia, EU, UK, and US.

This reliable and compact adapter is designed for a wide range of industrial and commercial applications requiring consistent DC power. It operates efficiently within an input voltage range of 100V AC to 240V AC and supports an adapter current of 1.25A.

The power supply includes interchangeable AC plug tops to support usage across multiple countries. It offers various built-in protections including over voltage, over current, and short circuit protection, which enhance durability and safety.

With a cable length of 6 feet, it provides installation flexibility while the device's compact dimensions (52 mm length, 101 mm width, 36 mm depth) make it convenient for limited spaces. It functions optimally between 0°C and 40°C ambient temperature environment and meets multiple international safety and quality standards such as cULus, CE, CCC, UL, TUV, and FCC. Energy efficiency complies with Level VI requirements, yielding minimal power waste.

Supplied with interchangeable AC plug tops for use in Australia, EU, UK, and US. Compact and lightweight design facilitates portability and ease of installation. Over voltage, over current, and short circuit protection ensure electrical safety.

Operating temperature range is 0°C to 40°C for diverse environments. High energy efficiency of 86.95% helps reduce power consumption. Regulated output voltage with ±5% load regulation for stable performance. Universal plug input voltage range from 100V to 240V AC.

Compliance with international safety standards cULus, CE, CCC, UL, TUV, and FCC.

This AC/DC adapter is ideal for power supply requirements in industrial equipment, laboratory instruments, telecom devices, HVAC controls, automated systems, and other commercial and industrial electronics. RS PRO ensures high-quality manufacturing and robustness in power supply solutions.
