INA 2 Row Angular Contact Ball Bearing 40 mm Inside Diameter 80 mm Outside Diameter 21 mm Race Width 3008-2RS

Free Delivery in India | Lowest Global Shipping Charges

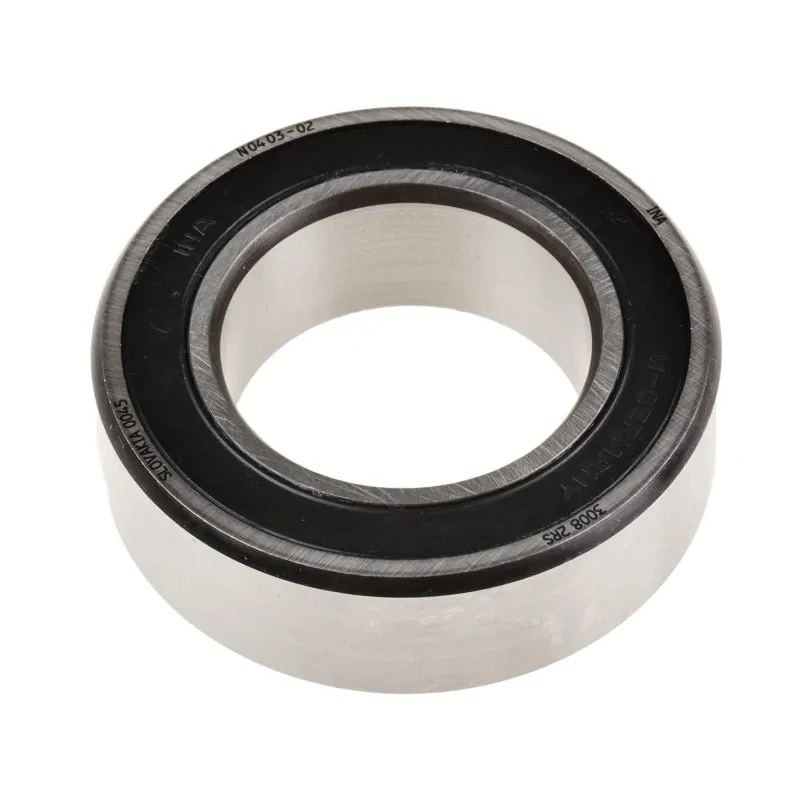

INA 2 Row Angular Contact Ball Bearing 40 mm Inside Diameter 80 mm Outside Diameter 21 mm Race Width 3008-2RS



Category Rotary Bearings & Housing Units Brand INA Condition New

Specifications

Country of Origin	India
Brand	INA
Model	3008-2RS
Series	3008
Outside diameter	80mm
Inside Diameter	40mm
Number of Rows	2
Ball Material	Steel
Limiting Speed	5600rpm
Internal Clearance	CN
End Type	Sealed
Bore Type	Parallel
Bearing Type	Double Row Angular Contact Ball
Cage Material	Polyamide
Race Width	21mm
Static Load Rating	21.3kN
Race Type	Plain
Dynamic Load Rating	25kN
Contact Angle	25°

Key Features

This bearing features a double row angular contact ball design.
It has polyamide cage material and steel balls for durability.
The bearing is sealed with contact seals on both sides, designated by the 2RS suffix.
It has a contact angle of 25 degrees for effective axial and radial load handling.
The limiting speed of the bearing is 5600 rpm, suitable for medium-speed applications.
The static and dynamic load ratings are 21.3 kN and 25 kN respectively, ensuring reliable performance under load.
The internal clearance is CN (normal clearance) and the bore type is parallel.
This bearing has plain raceways designed for angular contact applications.

Product Description

INA 3008-2RS is a 2 Row Angular Contact Ball Bearing with precise dimensions of 40 mm inside diameter, 80 mm outside diameter, and 21 mm race width. It is designed for applications requiring robust load handling and smooth rotation, commonly used in industrial machinery and mechanical equipment.

This bearing incorporates polyamide cage material and high-quality steel balls, enhancing durability and reducing friction. The sealed design with 2RS contact seals on both sides effectively protects against contamination and retains lubrication to extend service life.

With a contact angle of 25°, the bearing supports combined radial and axial loads, optimized for high reliability in demanding operational conditions. The normal internal clearance (CN) further contributes to stable performance under varying loads and thermal expansions.

The static load rating of 21.3 kN and dynamic load rating of 25 kN enable this bearing to withstand substantial operational stresses. Its limiting speed of 5600 rpm makes it suited for medium-speed rotating machinery components.

INA 3008-2RS bearings are widely employed in industrial, mechanical, fluid power, and manufacturing sectors where precision and durability are critical. This double row angular contact ball bearing delivers lower operating costs through reduced maintenance and efficient lubrication retention.

This bearing features a double row angular contact ball design. It has polyamide cage material and steel balls for durability. Contact seals on both sides enhance protection and lubrication retention. Designed for high reliability with a 25° contact angle.

Suitable for speeds up to 5600 rpm. Static load rating of 21.3 kN and dynamic load rating of 25 kN. Normal internal clearance (CN) and parallel bore type. Plain raceways optimized for angular contact applications. Explore our wide range of bearings and mechanical parts at EnvMart for all your industrial needs.
