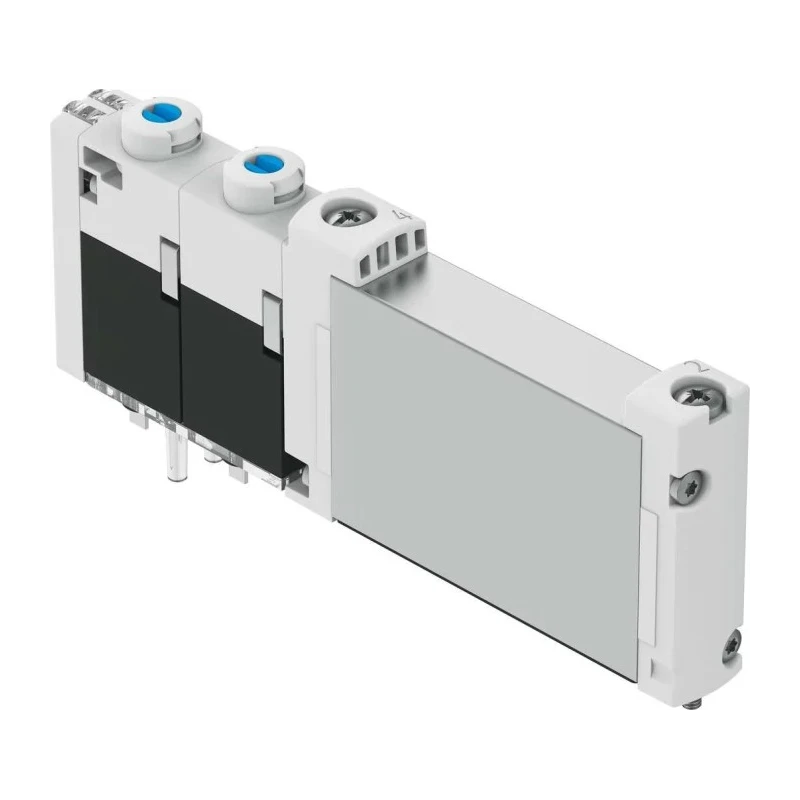

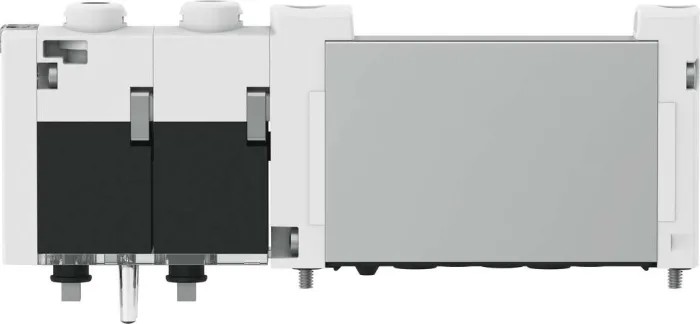

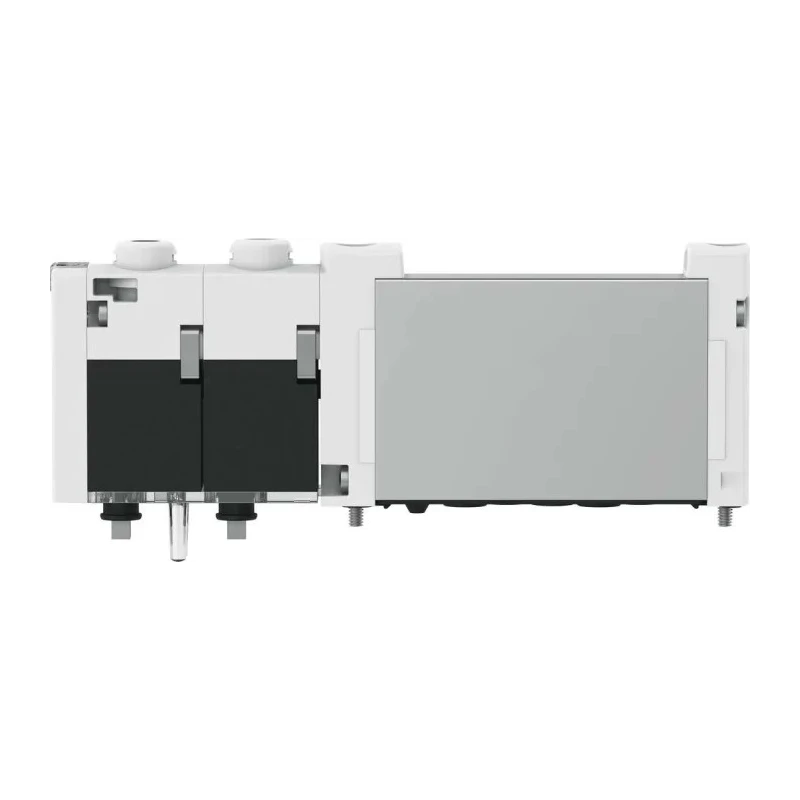

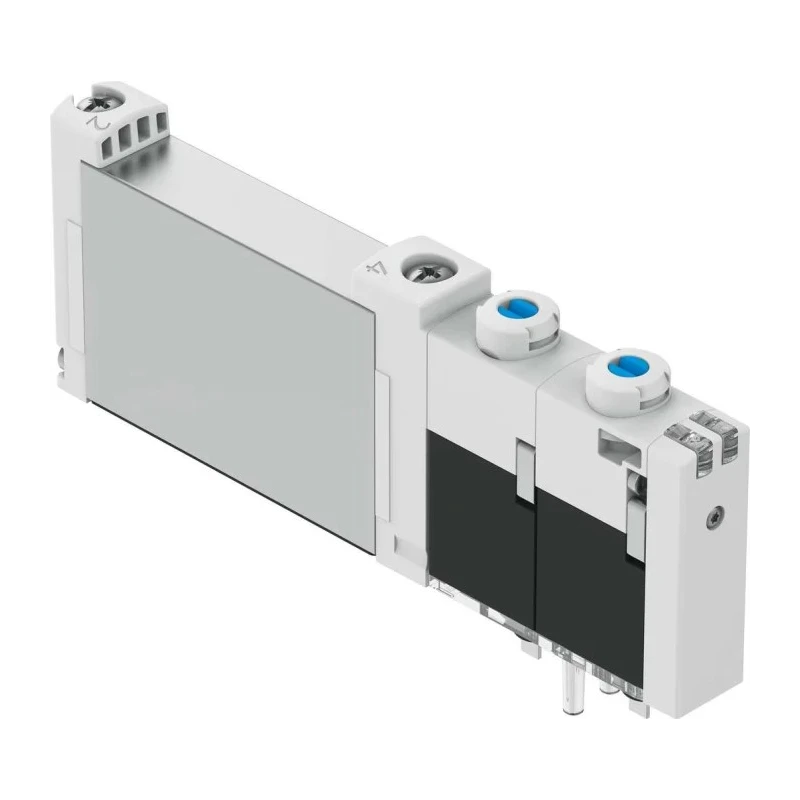

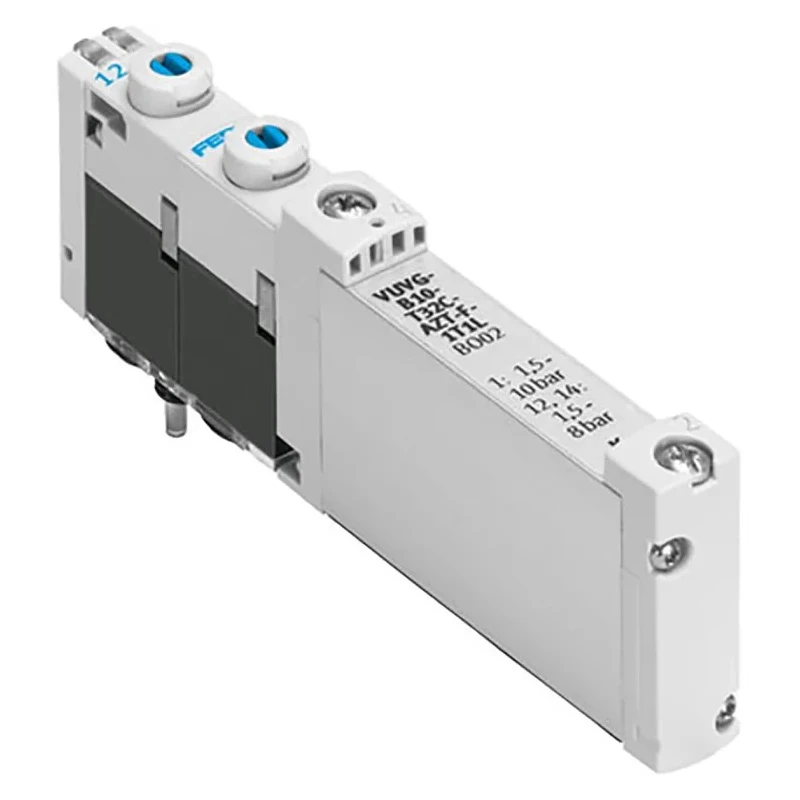

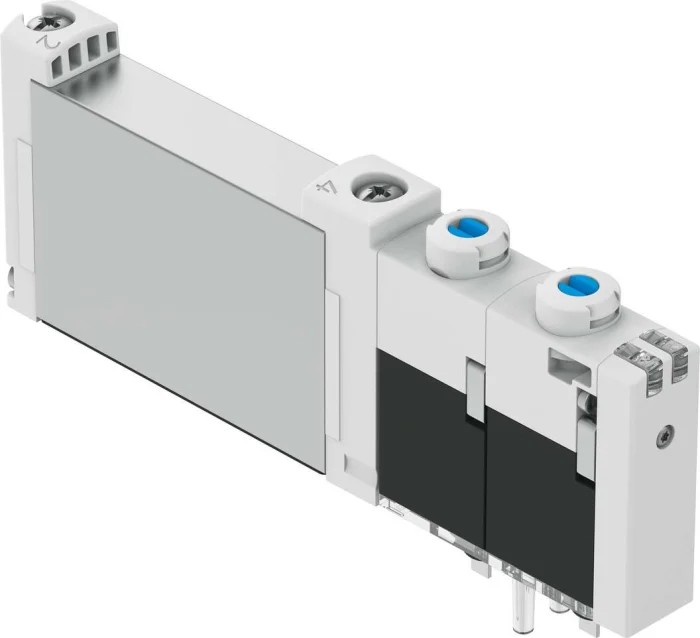

Festo 3/2 NC Electric Pneumatic Solenoid Valve Push-in 3 mm Port VUVG-B10-T32C-AZT-F-1T1L 24V DC
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 10 (External) bar, 8 (Internal) bar |
| Height | 1mm |
| Length | 74.3mm |
| Model | VUVG-B10-T32C-AZT-F-1T1L |
| Width | 10mm |
| Mount Type | Manifold |
| Series | VUVG |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 60°C |
| Port Type | Push-in |
| Number of Positions | 2 |
| Port Size | M3 |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Electric |
| Maximum Flow Rate | 160L/min |
| Standards/Approvals | RoHS, cULus |
| Connection Thread Standard | 3 mm |
| Minimum Pilot Pressure | 1.5bar |
| Valve Function | 3/2 NC |
| Electrical Connection Type | Manifold Block |
| Maximum Pilot Pressure | 10bar |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 1W |
Key Features
- Designed for precise control of compressed air flow with 3/2 normally closed function.
- Operates reliably within a temperature range of -5°C to 60°C.
- Compact aluminium alloy body with corrosion resistance and manifold mounting.
- Maximum external operating pressure of 10 bar and internal 8 bar rating.
- Flow rate up to 160 L/min suits mid-range pneumatic applications.
- Equipped with a single solenoid and 1 watt power consumption.
- Features a manual override with detenting option for manual control lock-in.
- 360-degree LED indicator allows easy switch status monitoring.
Product Description
Festo VUVG-B10-T32C-AZT-F-1T1L Pneumatic Solenoid Valve is a robust 3/2 normally closed (NC) electric valve designed for controlling compressed air flow efficiently in industrial automation and fluid power systems. Powered by 24V DC, this valve features a compact design with 3 mm push-in port size, constructed from corrosion-resistant aluminium alloy ensuring durability and resistance in demanding environments.
Its IP67 rating guarantees protection against dust ingress and water immersion, making it suitable for use in industrial, manufacturing, and building utilities management applications. The valve supports a maximum external operating pressure of 10 bar and internal pressure of 8 bar, with a maximum flow rate of 160 liters per minute, catering to mid-range pneumatic setups. It operates reliably in temperatures from -5°C to 60°C, with a quick pneumatic spring reset for smooth operation.
The manual override feature includes a detent option that allows locking the valve in its ON position, facilitating manual control when needed. The innovative design also includes a 360-degree LED indicator for easy monitoring of the valve switching status from any viewing angle.
This valve is ideal for food production lines, industrial automation processes, and building management systems where reliable, quick actuation and durability are critical. The unit mounts conveniently on a manifold rail, simplifying installation and maintenance.
Precise control for compressed air flow with 3/2 NC valve function. Compact aluminium alloy body with corrosion resistance. IP67 rating enables operation in contaminated and wet environments. Manual override with detenting provides operational flexibility.
360° LED indicator for easy switch status checks. Suitable for industrial automation, food production, and building utilities. Supports operating temperatures from -5°C to 60°C ensuring versatility. Maximum flow rate of 160 L/min to handle mid-range pneumatic demand.
Manifold mounting type for simple installation and integration. Explore EnvMart's extensive range of Pneumatic Solenoid Valves and related industrial automation components to find suitable solutions for your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum external operating pressure is 10 bar, while the internal pressure rating is 8 bar.
It has a maximum flow rate of 160 liters per minute, suitable for mid-range pneumatic applications.
This unit operates reliably within a temperature range of -5°C to 60°C.
The valve features a manifold block electrical connection type.
It has a push-in port size of 3 mm.
The body is made of corrosion-resistant aluminium alloy, and the seal material is nitrile rubber (NBR).
Yes, it includes a manual override with a detenting option that allows locking the valve in the ON position.
The solenoid power consumption is 1 watt.
It is compliant with RoHS and cULus standards.
It is designed for manifold mounting, simplifying installation and integration.
This model has 3 ports and 2 positions, functioning as a 3/2 normally closed valve.
It is suitable for industrial automation, food production lines, and building utilities management applications.
