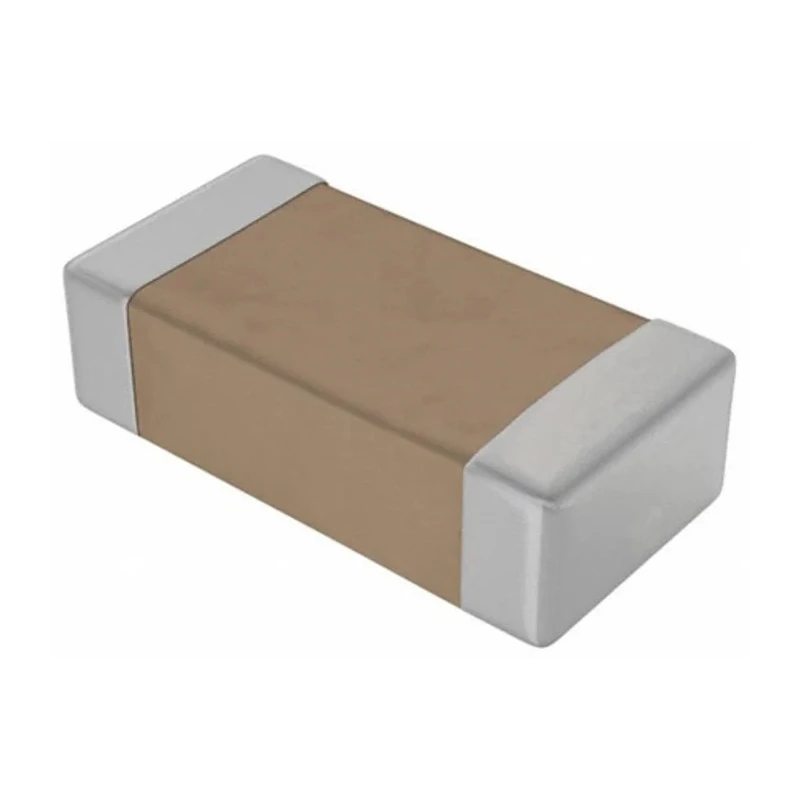

AVX 680 pF Multilayer Ceramic Capacitor, 100V dc, ±5 % Tolerance, Surface Mount, Package 1206 12061A681JAT2A

AVX 12061A681JAT2A Multilayer Ceramic Capacitor is a high-quality, surface mount capacitor featuring a capacitance of 680 pF and a voltage rating of 100V dc. This capacitor utilizes the C0G (NPO) dielectric, known for its superior temperature stability and minimal capacitance variation, making it well-suited for precision electronic applications across industrial, laboratory, telecommunications, and consumer electronics sectors.

With a package size of 1206, this surface mount component is compact and optimized for modern PCB assembly techniques. The capacitor maintains excellent performance across a temperature range from -55°C up to 125°C, ensuring reliability in varied environments.

The dielectric C0G (NPO) class exhibits near-zero temperature coefficients (±30 ppm/°C), providing stable capacitance essential for high-frequency and timing circuits. The termination type is surface mount, compatible with automated manufacturing and assembly processes.

This AVX capacitor belongs to the KGM series and conforms to industry standards for Surface Mount Devices, offering consistent quality and longevity. The device’s suppression class is Class I, suitable for applications requiring low loss at high frequencies.

Capacitors of this type are commonly used in precision filters, oscillators, RF circuits, and other applications demanding high stability and reliability. The capacitor is supplied on reels for efficient automated placement and is ideal for high-volume production.

The capacitor features a C0G (NPO) dielectric, ensuring excellent temperature stability. Package case size is 1206, suitable for surface mount technology. Operating temperature ranges from -55°C to 125°C, supporting harsh environments.

Surface mount termination enables compact assembly. Suppression Class I for low signal loss in RF applications. Packaged on reels for automated manufacturing processes. KGM series ensures industrial-grade reliability and performance.

Explore more in the Multilayer Ceramic Capacitors category to find compatible components and accessories for your electronic design and manufacturing needs.
