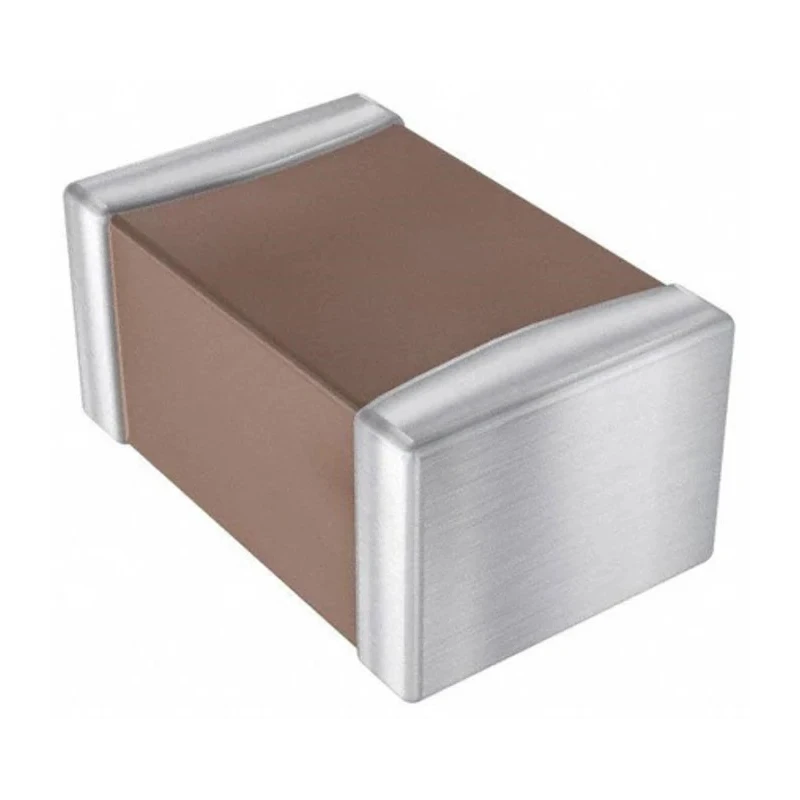

KYOCERA AVX 100 nF 50 V dc Multilayer Ceramic Capacitor Y5V Dielectric 0805 Case Surface Mount 08055G104ZAT2A

KYOCERA AVX 08055G104ZAT2A is a Multilayer Ceramic Capacitor with 100 nanofarad capacitance and a voltage rating of 50 V dc. It employs Y5V dielectric technology and is housed in a standard 0805 case size suitable for surface mount technology applications.

This capacitor is intended for general purpose decoupling applications within a limited temperature range, operating effectively between -30°C and 85°C. It has a capacitance tolerance from -20% to +80%, characteristic of Y5V dielectric capacitors, which are EIA Class II materials offering cost-effective solutions where temperature stability is less critical.

The device features nickel barrier terminations coated with a layer of plated tin (NiSn) to ensure good solderability and reliable mounting on PCBs. Its compact dimensions - length 2.01 mm, width 1.25 mm, and height 1.02 mm - make it ideal for densely packed electronic designs like mobile phones, video equipment, and tuner circuits.

This component is delivered in reel packaging to support automated pick-and-place assembly line processes. Even though it lacks automotive standard certification, it is widely used in consumer electronics industries.

KYOCERA AVX capacitors of the 0805 Y5V series provide functional performance for decoupling and noise suppression within specified environmental limits. Their usage extends to industrial, commercial, telecommunications, and laboratory electronic circuit assemblies.

This capacitor uses Y5V dielectric material, suitable for general-purpose decoupling applications. The tolerance range is -20 to 80%, making it ideal for limited temperature use. Operating temperature ranges from -30°C to maximum 85°C.

Compact dimensions: 2.01 mm length, 1.25 mm width, and 1.02 mm height. Features nickel barrier terminations covered with plated tin ensuring reliable surface mount connectivity. Comes packaged in a reel format suitable for automated assembly processes.

Designed without automotive standard compliance but suitable for consumer electronics like mobile phones and video tuner designs. Explore a wide selection of Multilayer Ceramic Capacitors and other electronic components for your industrial and laboratory projects on EnvMart.
