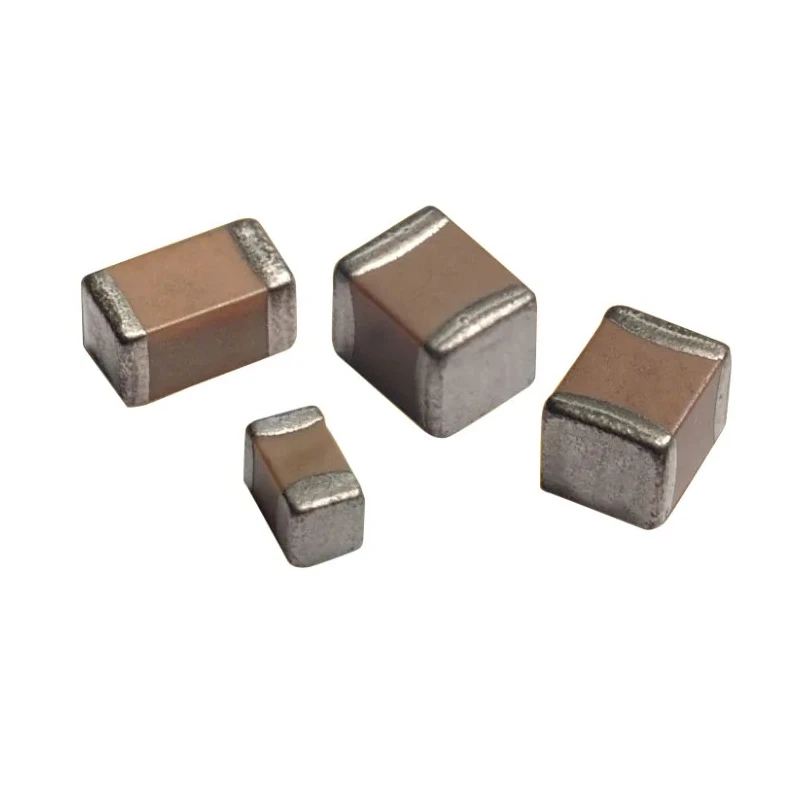

KYOCERA AVX 1 nF Multilayer Ceramic Capacitor 250V dc ±10 % X5R Dielectric Surface Mount 1206 1206PC102KAT1A

The KYOCERA AVX 1206PC102KAT1A is a 1 nF multilayer ceramic capacitor designed primarily for surface mount technology in electronic components. It is built with an X5R dielectric formulation, ensuring capacitance stability over a broad temperature range from -55°C to 125°C.

Featuring a 1206 package dimension of 3.2 mm length, 1.6 mm width, and 1.5 mm height, it is ideal for compact circuit layouts requiring reliable high-frequency performance and minimal parasitic effects. The capacitor is rated for a maximum operating voltage of 250V dc and maintains a capacitance tolerance of ±10 % to guarantee functionality in precise applications.

Its reel packaging supports automated PCB assembly processes, improving production efficiency. The surface mount termination ensures compatibility with current manufacturing standards, making it suitable for diverse applications including industrial electronic devices, power supplies, and communication equipment that demand robust EMI filtering and stable capacitance over temperature.

This specific capacitor series, KGM, does not adhere to automotive standards but offers reliable performance in commercial electronics. The ceramic multilayer construction offers low parasitic inductance, essential for high-frequency filtering capabilities.

Use cases include industrial electronics, laboratory instrumentation, telecommunications, and manufacturing electronics where compact, stable, and high-performance capacitors are essential.

This capacitor features a 1206 package size suitable for compact electronic assemblies. The dielectric material is X5R, providing stable performance within wide temperature ranges. Designed for temperature range from -55°C to 125°C, ensuring reliability in varied environments.

It has a length of 3.2 mm, width of 1.6 mm, and height of 1.5 mm for precise mounting dimension. Packaged on a reel, facilitating automated placement in manufacturing processes. Termination type is surface mount, compatible with standard PCB assembly technologies.

The series designation is KGM with no automotive certification indicated. Provides low parasitic inductance and excellent EMI filtering capabilities.
