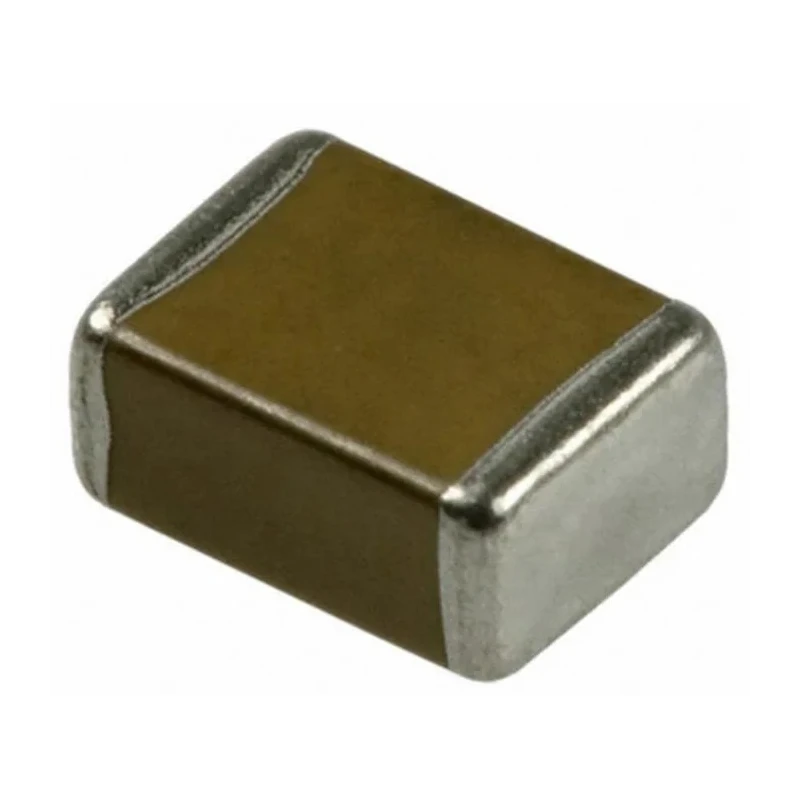

KYOCERA AVX 1 nF 3kV dc Multilayer Ceramic Capacitor X7R Dielectric Surface Mount 1812 1812HC102KAZ2A

KYOCERA AVX 1812HC102KAZ2A is a 1 nF Multilayer Ceramic Capacitor featuring an X7R dielectric material, providing excellent temperature stability and voltage characteristics for demanding electronic applications.

Rated for a maximum voltage of 3 kV dc and a tolerance of ±10 %, this surface mount capacitor has a compact 1812 package suitable for high-density circuit designs. The capacitor measures 4.5 mm in length, 3.2 mm in width, and 2.2 mm in height, ensuring a small footprint for compact electronic assemblies.

This component operates reliably over a broad temperature range, from -55°C to 125°C. The X7R dielectric is classified as an EIA Class II material, allowing a capacitance variation of ±15 % across this temperature span. The non-linear change in capacitance under voltage and temperature stresses suits many industrial electronics applications where capacitive performance tolerance is acceptable.

The capacitor is supplied on reel packaging, facilitating automated pick-and-place processes in manufacturing environments. Its surface mount termination allows for stable electrical connections and easy mounting on printed circuit boards. This product is ideal for use in industrial, communication, power supply, and HVAC electronic equipment requiring reliable multilayer ceramic capacitors.

Features X7R dielectric suitable for industrial electronic applications. Compact 1812 surface mount package optimized for assembly efficiency. Voltage rating of 3 kV dc supports high-voltage circuits. Operating temperature range from -55°C to 125°C ensures durability.

Packaged on reels for automated manufacturing processes. Non-linear capacitance changes acceptable in many industrial use cases. Standard surface mount termination type for PCB integration. Explore the comprehensive range of Multilayer Ceramic Capacitors at EnvMart for solutions tailored to your industrial and electronic component needs.
