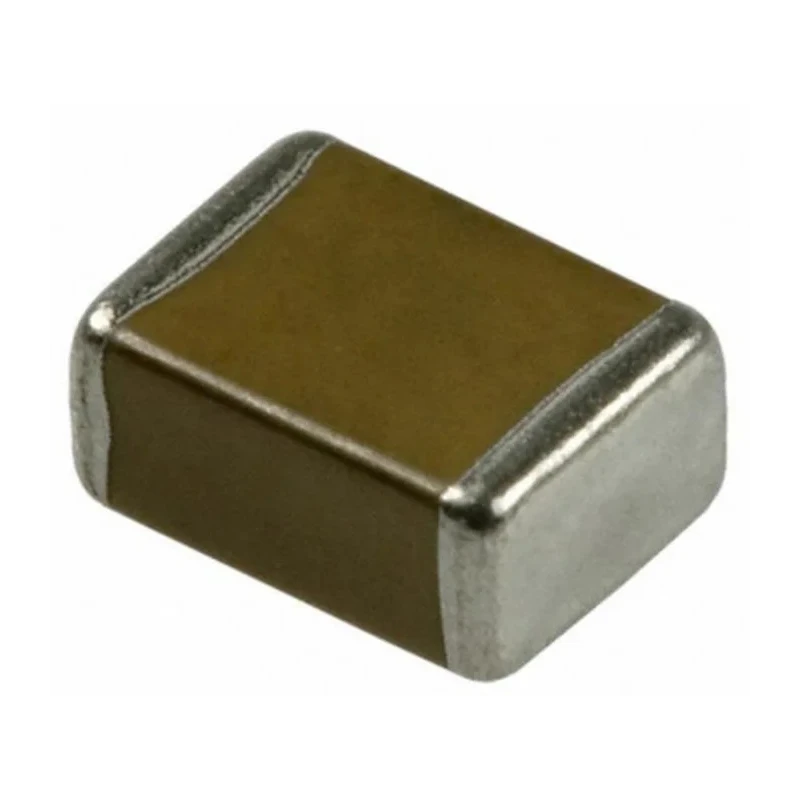

KYOCERA AVX 8.2 nF Multilayer Ceramic Capacitor 2kV dc ±10% Tolerance Surface Mount 1812 Package 1812GC822KAT1A

KYOCERA AVX 1812GC822KAT1A is a high-quality multilayer ceramic capacitor featuring an 8.2 nF capacitance and a 2kV dc voltage rating with ±10% tolerance. Packaged in a compact 1812 surface mount case, it is optimized for use in industrial, electronic, and power filtering circuits requiring reliable high voltage ceramic capacitors.

This capacitor employs the X7R dielectric, classified under EIA Class II materials, which ensures temperature stability with capacitance variation within ±15% over a wide range from -55°C to 125°C. The non-linear variation of capacitance with temperature and voltage is typical of X7R dielectric types.

The 1812 package measures 4.5 mm in length, 3.2 mm in width, and 2.8 mm in height, making it suitable for dense PCB layouts. Its surface mount termination facilitates automated assembly for manufacturing efficiency.

The capacitor is part of KYOCERA AVX's KGM series, designed for applications where moderate capacitance and high voltage handling are required. It is not automotive standard certified but is widely used in industrial electronic equipment, power supplies, and general-purpose high voltage circuits.

The capacitor supports continuous operation in harsh environmental conditions with a temperature range from -55°C to 125°C. It does not have any specific approvals or standards beyond standard industry classifications.

Capacitance value of 8.2 nF ensures reliable electrical performance. Maximum operating voltage rating of 2kV dc suitable for high voltage applications. X7R dielectric provides stable temperature characteristics from -55°C to 125°C.

Compact 1812 package size measuring 4.5 mm length, 3.2 mm width, and 2.8 mm height. Surface mount termination type designed for automated PCB assembly processes. Tolerance of ±10% for consistent capacitance spread within manufacturing variances.

Operating temperature range from -55°C minimum to 125°C maximum supports harsh environments. Designed for industrial electronic and power applications requiring stable multilayer ceramic capacitors. Series: KGM, conforms to class II EIA material standards.
