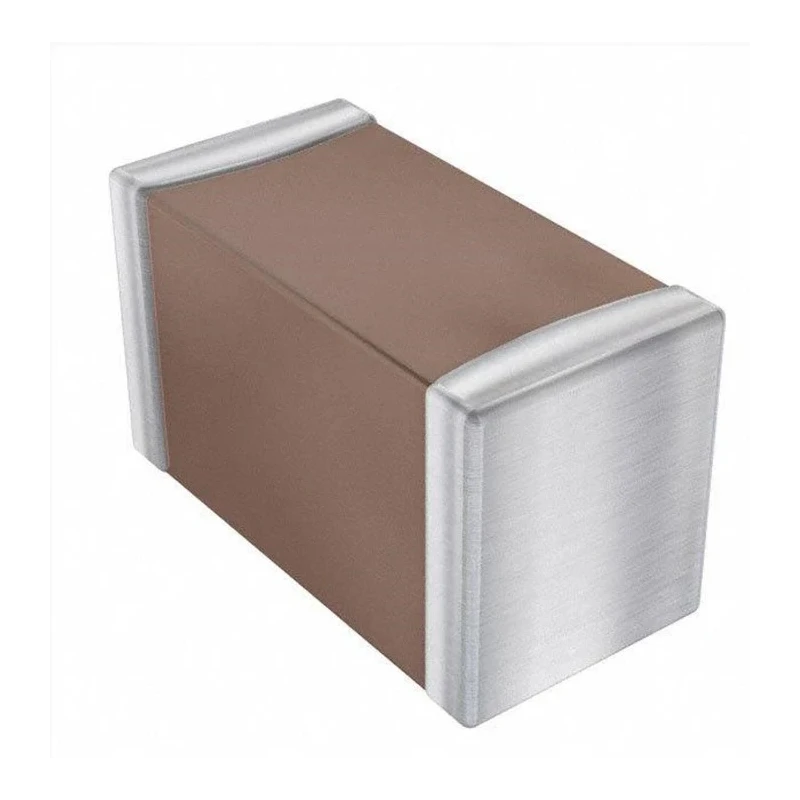

KYOCERA AVX 1 pF Multilayer Ceramic Capacitor 50V dc Surface Mount 06035A1R0CAT2A

KYOCERA AVX 06035A1R0CAT2A multilayer ceramic capacitor is a precision passive electronic component designed for surface mount technology assemblies. It features a capacitance of 1 pF with a tight tolerance of 0.25 pF, making it suitable for high-frequency and precision circuits requiring stable electrical characteristics.

This capacitor utilizes the C0G (NP0) dielectric material, known for its exceptional stability with temperature coefficient near zero, ensuring capacitance variation remains within ±30 ppm/°C from -55°C to +125°C, which translates to less than ±0.3% change across the operating temperature range. Thus, it provides excellent performance in industrial and commercial electronic applications where temperature stability is critical.

The component is packaged in a 0603 case size (1.6 mm length × 0.81 mm width × 0.9 mm height) and supplied on a reel for high-volume assembly automation. The surface mount termination type supports soldering to printed circuit boards using standard SMT processing.

Operating voltage rating is 50 volts DC, making this capacitor appropriate for low voltage signal applications, filters, oscillators, and timing circuits. The absence of automotive standard certification indicates it is optimized for general use rather than harsh automotive environments.

Stable capacitance over wide temperature ranges due to C0G dielectric. Compact and reliable package suitable for high-density circuit boards. Wide operating temperature range from -55°C to +125°C. Surface mount design supports automated manufacturing processes.

Accurate capacitance ensures circuit precision and performance.

This multilayer ceramic capacitor is widely used in industrial electronics, telecommunications, computing hardware, instrumentation, and consumer electronics for filtering, frequency selection, and timing functions. The reel packaging facilitates efficient handling in volume production environments.
