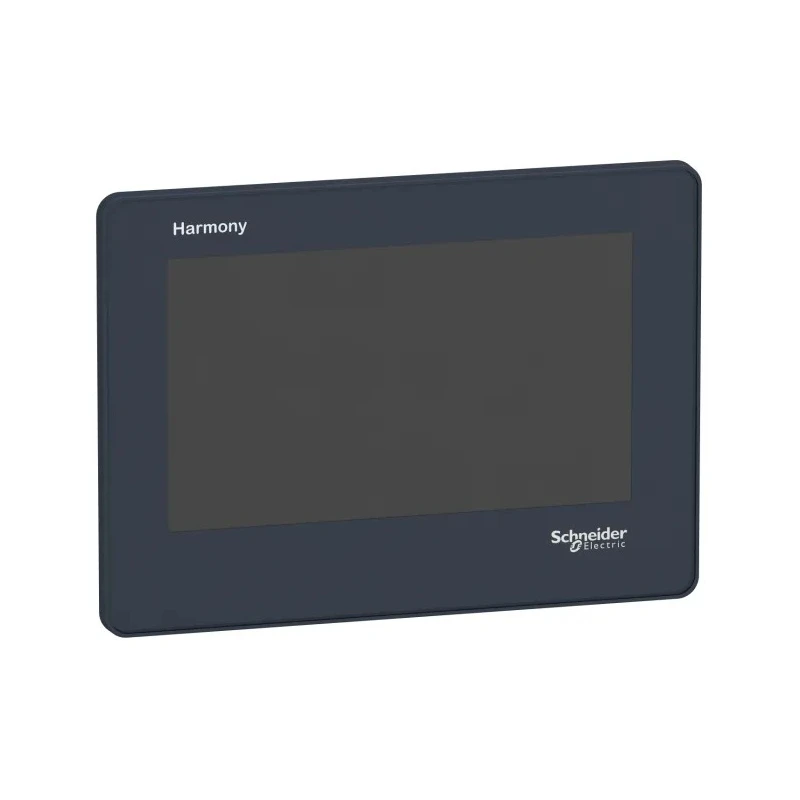

Schneider Electric Magelis STO & STU Series Touch Screen HMI with 4.3 in TFT LCD Display 480 x 272 pixel HMISTO705

Schneider Electric HMISTO705 is a high-performance Magelis STO & STU Series Touch Screen Human-Machine Interface (HMI) equipped with a 4.3 inch TFT LCD display offering 480 x 272 pixel resolution. Designed for industrial automation, this device provides optimized information and communication for sectors including manufacturing, food & beverage, medical, and pharmaceutical industries.

Its compact dimensions of 124.9 mm length, 90.4 mm depth, and 38.8 mm width make it ideal for integration into compact machines and handling systems. The HMI supports a voltage supply range of 12V to 24V DC and includes 3 ports: 1 host USB, 1 mini-B USB, and 1 RS232C/RS485 port to connect various automation devices.

Operating across temperatures from 0°C to 50°C, the HMISTO705 ensures reliable performance in harsh industrial environments. The front panel comes with an IP65 rating for dust and water resistance, while the rear panel has IP20 protection against touch and objects larger than 12 mm. The device complies with stringent standards and approvals such as CE, UL, ATEX hazardous area certification, and others, guaranteeing safety and compatibility in industrial systems.

The onboard memory includes 512kB RAM and a 26MB EPROM, supporting advanced graphical color page displays with multiple language fonts for ease of use worldwide. Its RS485 host port facilitates effective supervision and control of simple machines and systems, with transmission rates up to 115,200bps ensuring high-speed signal communication.

Common applications include industrial manufacturing automation, food production and packaging, and medical/pharmaceutical machines. The device can be conveniently connected to external equipment via its integrated 9-pin terminal block.

Features a 4.3 inch diagonal color TFT LCD touch screen for clear user interface. Supports 3 ports including 1 host USB, 1 mini-B USB, and 1 RS232C / RS485 port. Operates reliably within 0°C to 50°C temperature range for harsh environments.

Equipped with 512kB onboard memory and 26MB EPROM for program storage. Designed with IP65 front protection and ATEX hazardous area certification. Suitable for industrial automation including compact machines, handling, and pharmaceutical systems.

Includes multiple language character fonts ensuring accessibility worldwide. Allows high-speed transmission rates between 2400 and 115,200bps for efficient signal communication. Explore the Industrial Automation Systems category on EnvMart for a wide range of HMIs and related control gear from Schneider Electric and other reputable brands.
