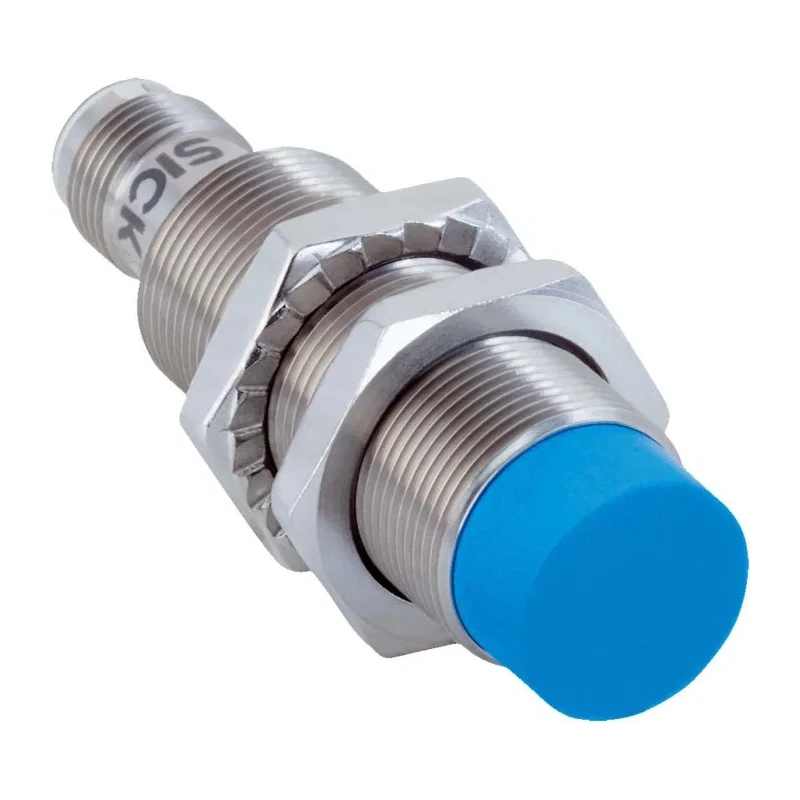

SICK Threaded Barrel Inductive Proximity Sensor M18 x 1 PNP 30 V DC 200mA IMB18-12NPPVC0S

Name: SICK Threaded Barrel Inductive Proximity Sensor M18 x 1 PNP 30 V DC 200mA IMB18-12NPPVC0S
Brand: SICK
SKU: 144090
Price: 96.63 USD
Availability: InStock



Category Inductive Proximity Sensor Brand SICK Condition New

Specifications

Country of Origin	Hungary
Brand	SICK
Length	65mm
Model	IMB18-12NPPVC0S
IP Rating	IP68, IP69K
Width	18mm
Mount Type	Non-Flush
Housing Material	Stainless Steel
Output type	PNP
Series	IMB
Maximum Operating Temperature	100°C
Thread Size	M18 x 1
Minimum Operating Temperature	-40°C
Switching Current	200mA
Terminal type	4-Pin M12 Male Connector
Body Style	Threaded Barrel
Maximum dc Voltage	30V dc
Shielding	Unshielded
Maximum Switching Frequency	1kHz
Standards/Approvals	CE, cULus, EN 60529, EN 60947-5-2
Maximum Supply Voltage	30V
Materials Detected	Plastic
Maximum Detection	12mm

Key Features

This sensor detects plastic materials within a 12mm maximum range.
IP68 and IP69K rated for high protection against dust and water ingress.
Equipped with a 4-Pin M12 male connector for secure wiring.
It operates reliably in temperatures ranging from -40°C to 100°C.
Non-flush mount type allows versatile installation options.
Stainless steel housing ensures chemical and mechanical resistance.
Supports a maximum switching frequency of 1 kHz for fast detection.
Shock resistant up to 150 g, suitable for harsh industrial environments.

Product Description

SICK IMB18-12NPPVC0S Threaded Barrel Inductive Proximity Sensor is a rugged and intelligent sensor designed for industrial automation applications requiring reliable detection of plastic materials. It features a stainless steel housing with a length of 65mm and a diameter corresponding to an M18 x 1 thread size, ensuring durable mechanical resistance and excellent chemical tolerance.

With PNP output and a maximum supply voltage of 30 V DC, it provides stable switching and can handle switching currents up to 200mA. The sensor supports non-flush mounting and is equipped with a 4-pin M12 male connector to facilitate easy and secure wiring. Its unshielded design allows for a maximum detection distance of 12mm, ideal for applications that require sensing of plastic targets.

Rated IP68 and IP69K, the sensor offers outstanding water and dust protection, enabling operation in harsh environments. It is capable of withstanding extreme temperatures ranging from -40°C up to 100°C, and mechanical shocks up to 150 g, making it suitable for demanding industrial and manufacturing settings.

The IMB series incorporates ASIC technology and supports communication via IO-Link for precise and reliable switching. An LED status indicator further assists in operational diagnostics and maintenance.

This sensor complies with international safety and performance standards including CE, cULus, EN 60529, and EN 60947-5-2, ensuring industrial-grade quality and safety. The product is made in Hungary and represents a trusted choice for automation professionals.

This sensor detects plastic materials within 12mm maximum range. IP68 and IP69K rated for dust and water ingress protection. Equipped with a 4-Pin M12 male connector for secure wiring. Reliable operation in temperature range from -40°C to 100°C.

Non-flush mount design for flexible installation. Stainless steel housing ensures chemical and mechanical resistance. Maximum switching frequency up to 1 kHz for fast response. Shock resistant up to 150 g for harsh environments.

Incorporates ASIC technology with IO-Link communication. Complies with CE, cULus, EN 60529, and EN 60947-5-2 standards. Explore the broad range of SICK sensors and automation equipment available at EnvMart for industrial, manufacturing, and laboratory applications.
