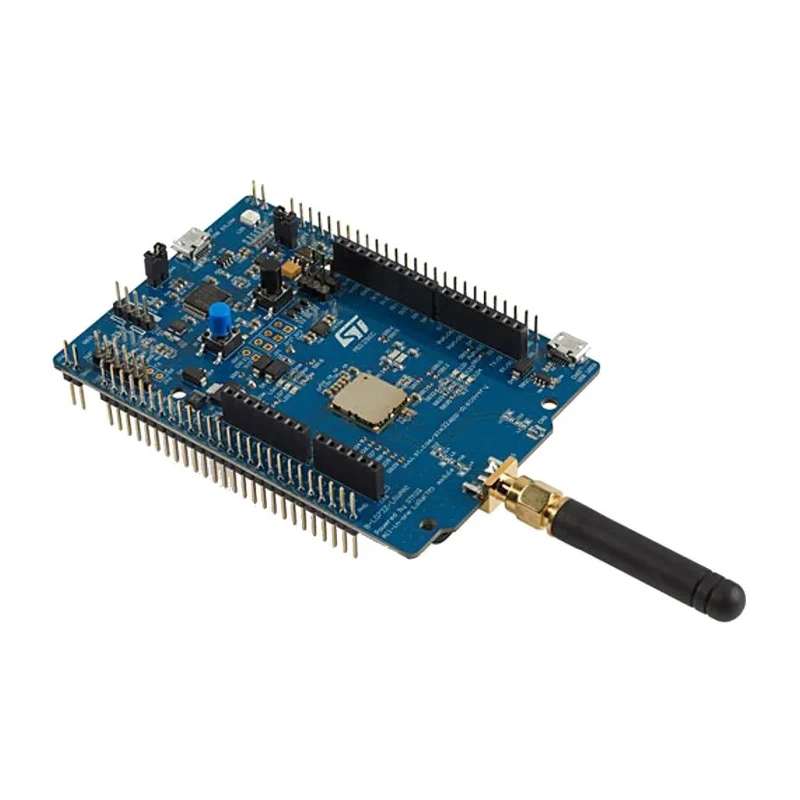

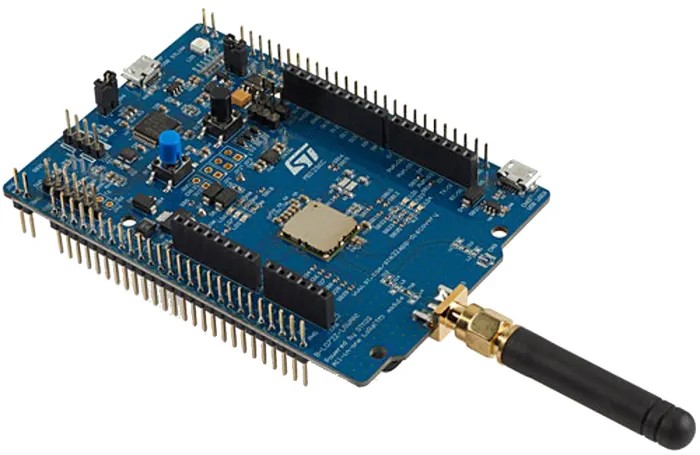

STMicroelectronics Discovery CMWX1ZZABZ-091 LoRa Development Kit for LoRaWAN 915 MHz B-L072Z-LRWAN1

STMicroelectronics B-L072Z-LRWAN1 Discovery LoRa Development Kit is a specialized communication and wireless development tool designed for LoRaWAN applications at 915 MHz frequency. This development kit integrates the CMWX1ZZABZ-091 module from Murata, which includes a high-performance SX1276 low-power transceiver supporting long-range modem capabilities and OOK/FSK modulation formats.

The embedded STM32L072CZY6 microcontroller manages transceiver operations, enabling efficient control and robust performance. This kit supports bi-directional communication for end devices operating in class A and class C protocols; it accommodates activation via Over-The-Air Activation (OTAA) and Activation-By-Personalization (ABP).

Output power is selectable between 14 dBm and +20 dBm, providing a maximum link budget of 157 dB. The module offers high sensitivity, capable of detecting signals as low as -137 dBm, with a programmable bit rate reaching 300 kbit/s. The fully integrated synthesizer features a resolution of 61 Hz, and the kit also incorporates mechanisms for sync word recognition and preamble detection, enhancing signal reliability.

The power supply flexibility allows operation through USB bus, external VIN/3.3V supply voltage, or standalone mode using 3 x AAA-type batteries. Connectivity options include SWD and USB 2.0 FS interfaces for programming and communication.

This development kit is suitable for wireless communication and embedded systems applications requiring ultra-low power use and long-range connectivity. It is widely applicable in industrial IoT, smart metering, and other environments demanding reliable LoRaWAN communication.

The kit features a CMWX1ZZABZ-091 module with an embedded SX1276 low-power transceiver. Supports bi-directional end devices in class A and class C protocols. Offers selectable output power of 14 dBm or +20 dBm and up to 157 dB maximum link budget.

Programmable bit rate up to 300 kbit/s with high sensitivity down to -137 dBm. Powered via USB, external VIN/3.3V supply, or 3 x AAA-type batteries for standalone operation. Includes a STM32L072CZY6 microcontroller for embedded control within the module.

Supports Over-The-Air Activation (OTAA) and Activation-By-Personalization (ABP) methods. Equipped with multiple interfaces including SWD and USB 2.0 FS. Applications include wireless communication and embedded system development.

Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards. Explore the STMicroelectronics section at EnvMart for more advanced communication and wireless development tools and accessories.
