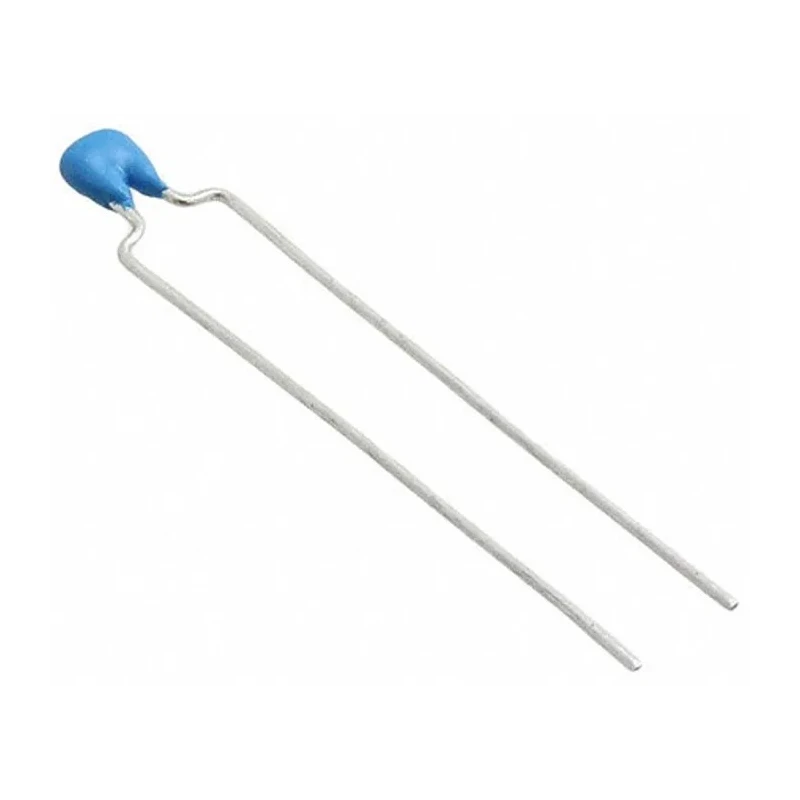

Murata 22 nF Multilayer Ceramic Capacitor, 50V dc, ±10 %, Through Hole Radial RDER71H223K0M1H03A
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50V dc |
| Brand | Murata |
| Height | 3.5mm |
| Length | 4mm |
| Model | RDER71H223K0M1H03A |
| Packaging | Ammo Pack |
| Width | 2.5mm |
| Mount Type | Through Hole |
| Series | RDE |
| Termination Type | Radial |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 22nF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, REACH |
| Lead Diameter | 0.5mm |
| Dielectric | X7R |
| Suppression Class | Class II |
| Lead Spacing | 5mm |
| Seated Plane Height | 6mm |
Key Features
- The capacitor features a capacitance of 22 nF with a tolerance of ±10%.
- It operates at a rated voltage of 50V DC with a dielectric type X7R suitable for a wide temperature range.
- The radial through-hole mounting style ensures secure and reliable PCB installation.
- The maximum operating temperature is 125°C, and minimum operating temperature is -55°C, supporting robust industrial use.
- This capacitor is RoHS and REACH compliant, ensuring environmental safety standards.
- The termination type is radial with lead spacing of 5 mm and lead diameter of 0.5 mm for standard connectivity.
- Packaged in ammo pack suitable for automated assembly and improved production efficiency.
- Manufactured in Japan, guaranteeing high quality and reliability.
Product Description
Murata RDER71H223K0M1H03A is a high-quality multilayer ceramic capacitor (MLCC) featuring a capacitance of 22 nF and rated for 50V DC operation. This through-hole radial capacitor is engineered with X7R dielectric material, providing stability across a broad temperature range from -55°C to 125°C.
Ideal for commercial and consumer electronics applications, this capacitor delivers low equivalent series resistance (ESR) performance ideal for high frequency circuits, improving circuit stability and filtering capabilities.
The component dimensions are compact with 4 mm length, 2.5 mm width, and 3.5 mm height, and a seated plane height of 6 mm, facilitating space-efficient PCB layouts. It features a radial termination type with 5 mm lead spacing and 0.5 mm lead diameter, ensuring reliable through-hole mounting and solderability.
This capacitor complies with RoHS and REACH environmental standards, emphasizing sustainability and safety in electronic manufacturing processes. It is packaged in ammo pack format, allowing for seamless automated insertion and enhanced production yield.
Manufactured in Japan under the RDE series, it targets commercial electronic, consumer electronics, and white goods industries. Note this capacitor is not suitable for automotive-related powertrain and safety equipment applications.
The capacitor offers stable capacitance with ±10% tolerance at 22 nF. Designed for a maximum operating temperature of 125°C and minimum -55°C. Radial through-hole mount ensures secure PCB integration and ease of assembly.
Epoxy resin coating provides durability and resistance to mechanical damage. Conforms to RoHS and REACH standards for environmental compliance. Compact dimensions (4x2.5x3.5 mm) facilitate use in space-sensitive circuits.
Lead spacing of 5 mm ensures standard compatibility with PCB designs. Ammo packaging optimizes manufacturing efficiency and component handling.
Choose Murata MLCCs for reliable, precise, and environmentally compliant Multilayer Ceramic Capacitors suitable for a broad range of industrial and commercial electronic applications. Browse related Murata capacitors and accessories at EnvMart for comprehensive component sourcing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitor has a capacitance of 22 nF with a tolerance of ±10%.
It can operate at a maximum temperature of 125°C and a minimum temperature of -55°C.
This model uses an X7R dielectric, which provides stability across a broad temperature range.
The dimensions are 4 mm in length, 2.5 mm in width, and 3.5 mm in height, with a seated plane height of 6 mm.
The lead spacing is 5 mm, which ensures compatibility with standard PCB designs.
It is packaged in an ammo pack format, which is suitable for automated assembly and improves production efficiency.
The termination type is radial, designed for through-hole mounting.
Yes, it complies with RoHS and REACH environmental standards, ensuring safety in electronic manufacturing.
The lead diameter is 0.5 mm, facilitating reliable solderability and connection.
This model is ideal for commercial and consumer electronics applications, but it is not suitable for automotive-related powertrain and safety equipment applications.
It is manufactured in Japan, ensuring high quality and reliability.
This capacitor is part of the RDE series from Murata.
