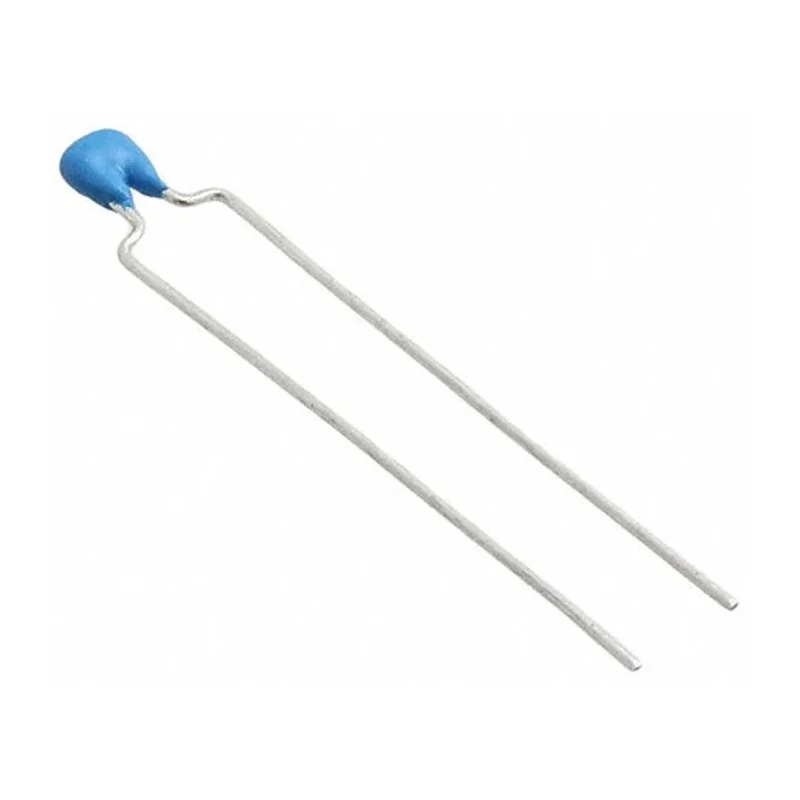

Murata 22 nF Multilayer Ceramic Capacitor 50V dc ±10 % Through Hole Radial RDER71H223K0M1H03A
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50V dc |
| Brand | Murata |
| Height | 3.5mm |
| Length | 4mm |
| Model | RDER71H223K0M1H03A |
| Packaging | Ammo Pack |
| Width | 2.5mm |
| Mount Type | Through Hole |
| Series | RDE |
| Termination Type | Radial |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 22nF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, REACH |
| Lead Diameter | 0.5mm |
| Dielectric | X7R |
| Suppression Class | Class II |
| Lead Spacing | 5mm |
| Seated Plane Height | 6mm |
Key Features
- Provides a capacitance value of 22 nanofarads suitable for high-frequency electronic circuits.
- Rated for a maximum operating temperature of 125°C ensuring reliability in various environments.
- Features a ceramic dielectric type of X7R for stable electrical characteristics.
- Designed with a seated plane height of 6 mm and lead spacing of 5 mm for easy PCB mounting.
- The capacitor is coated with epoxy resin and has tin/copper radial leads for robust termination.
- Manufactured in Japan assuring high-quality build and performance standards.
- Complies with RoHS and REACH standards, supporting eco-friendly electronics design.
- Intended for commercial and consumer electronics applications but not for automotive power train use.
Product Description
Murata RDER71H223K0M1H03A is a 22 nF Multilayer Ceramic Capacitor rated for 50V dc with ±10 % tolerance, featuring a Through Hole Radial mount with epoxy resin coating and tin/copper leads. This capacitor is designed for commercial and consumer electronic applications where stable capacitance and reliability are required.
The X7R ceramic dielectric ensures low ESR and dependable performance at high frequencies, making it suitable for a wide range of electronic circuits. Its small dimensions (length 4 mm, width 2.5 mm, height 3.5 mm) and lead diameter of 0.5 mm facilitate easy assembly on printed circuit boards.
Operating between -55°C and a maximum of 125°C, the capacitor meets demanding thermal requirements. The seated plane height of 6 mm and 5 mm lead spacing allow compatibility with many standard through-hole PCB layouts. Its construction complies with RoHS and REACH regulations, supporting environmental safety objectives.
Manufactured in Japan, this component reflects Murata's commitment to quality and durability. However, it is important to note that it is not recommended for automotive power train and safety-related applications.
This capacitor is supplied in ammo pack packaging, facilitating efficient insertion into machinery during mass production, improving throughput and assembly efficiency. Capacitance value of 22 nF suitable for filtering and decoupling applications.
Rated voltage of 50 V dc supporting moderate voltage electronic circuits. Epoxy coated radial leads ensure robust connections and protection. Compliant with international RoHS and REACH environmental standards. Small form factor enables use in compact electronic designs.
Operating temperature range from -55°C to 125°C supports diverse signal and power electronics. Manufactured in Japan with high reliability and quality assurance. Ideal for commercial electronics, consumer devices, and white goods.
Explore our extensive range of Multilayer Ceramic Capacitors and other electronic components on EnvMart for reliable and performance-oriented solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 22 nanofarads (nF).
It is rated for a maximum voltage of 50V dc.
The capacitor operates within a temperature range of -55°C to 125°C.
It features an X7R ceramic dielectric, which provides stable electrical characteristics.
The dimensions are 4 mm in length, 2.5 mm in width, and 3.5 mm in height.
The lead diameter is 0.5 mm.
The lead spacing is 5 mm, allowing compatibility with many standard through-hole PCB layouts.
It is supplied in ammo pack packaging, which facilitates efficient insertion into machinery during mass production.
This model complies with RoHS and REACH standards, supporting environmental safety objectives.
It features radial termination with epoxy resin coating for robust connections.
No, it is not recommended for automotive power train and safety-related applications.
It is manufactured in Japan, reflecting high-quality build and performance standards.
