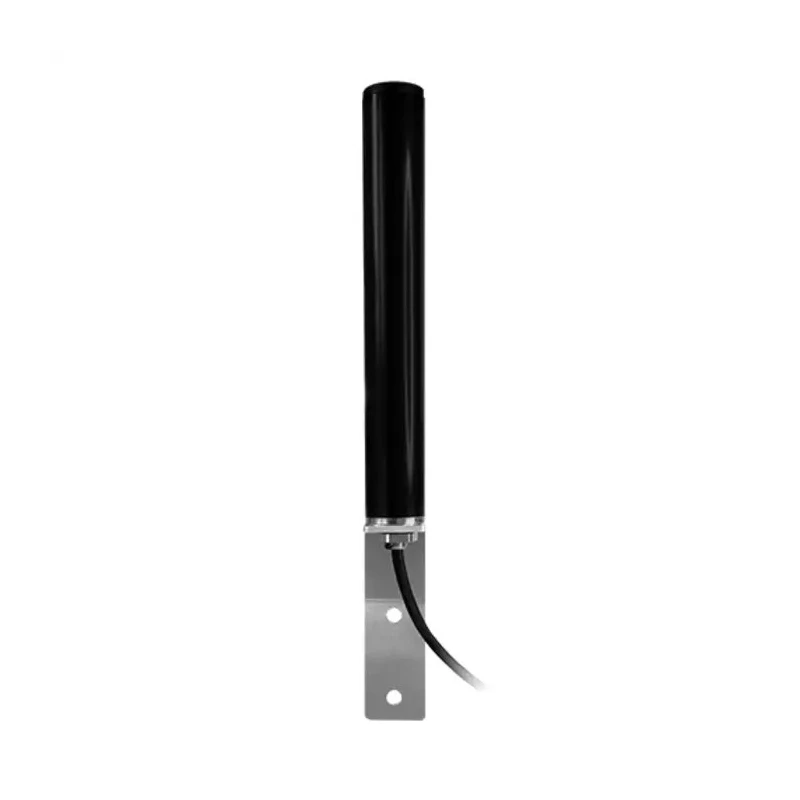

Siretta Puck Multi-Band Antenna SMA Male Connector 410 MHz to 5990 MHz, Omnidirectional, 5m Cable OSCAR1A/5M/SMAM/S/S/31
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Siretta |
| Dimensions | 205 mm height x 25 mm diameter |
| Operating Temperature Range | -20 to +80 °C |
| Temperature range | -30 to +70°C |
| Model | OSCAR1A/5M/SMAM/S/S/31 |
| Cable | Low Loss CFD195 4.95 mm diameter |
| Connector Type | SMA Male |
| Gross Weight | 250 g |
| Series | Oscar 1A |
| Polarization | Vertical |
| Gain | 5dB |
| Lead Length | 5m |
| Impedance | 50 Ohm |
| Max Input Power | 50 W |
| Mounting Method | L-type Mount |
| Standards/Approvals | RoHS |
| Maximum Frequency | 5990MHz |
| Connector Gender | Male |
| Minimum Frequency | 410MHz |
| Internal/External | External |

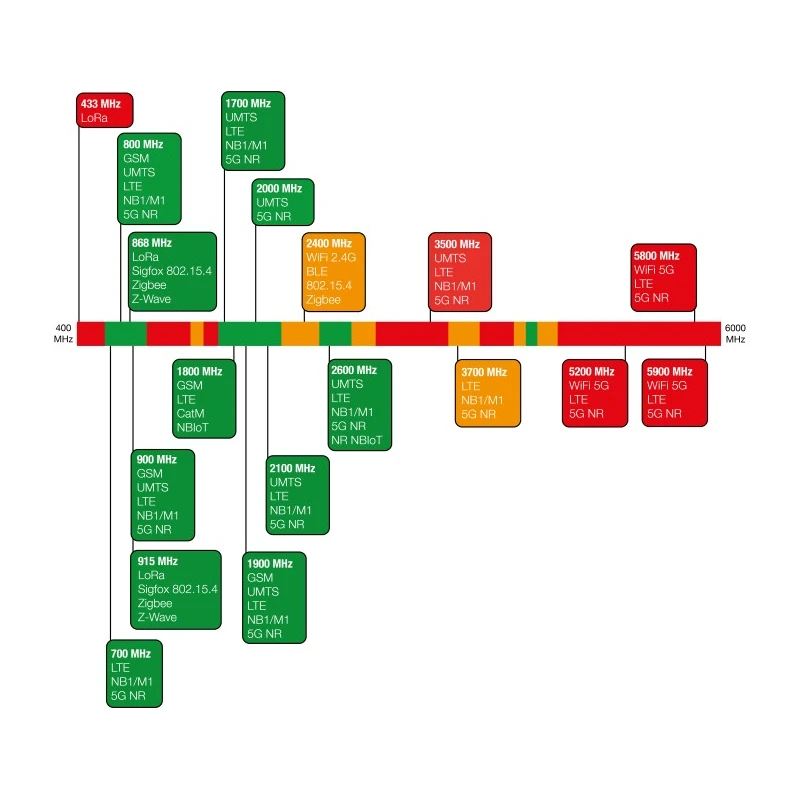

| RF Protocols | IEEE 802.15.4, NB IoT, ISM Band, Bluetooth (BLE), 5G, Cat-M, 4G (LTE), WiFi, 4G (LTE Cat-M), 3G (UMTS), ISM, LoRaWAN, 4G, 2G (GSM/GPRS), 5G (LTE), ZigBee |
| Antenna Physical Form | Puck |
| Antenna Mount Type | Screw |
| Directivity | Omni-Directional |
| Polarisation | Vertical (Omnidirectional) |
| Radiating element | Monopole |
| Antenna Diameter | 25 mm (cylinder) |
| Housing materials | ABS (casing), Aluminium (radiator) |
| Quad Band GSM/GPRS | 850, 900, 1800, 1900 MHz |
| 3G | 2.1 GHz |

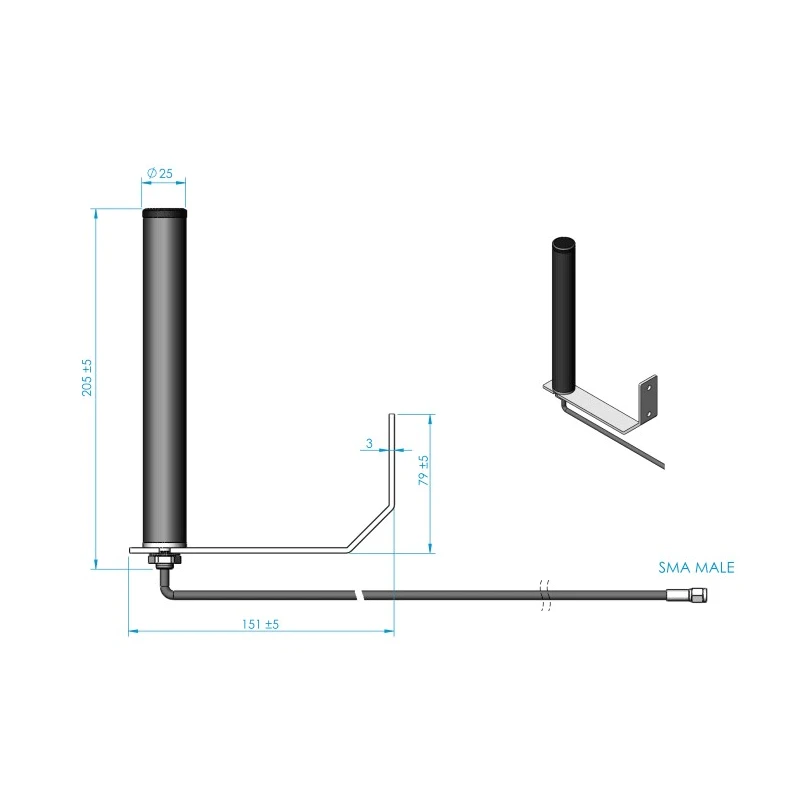

| Antenna height | 205 ±5 mm |
| Bracket length | 151 ±5 mm |
| Bracket height | 79 ±5 mm |
| Bracket thickness | 3 mm |
| RF Solutions ANT-M4G3-SMA Rod Omni-Directional Antenna with SMA ConnectorBrand | RF Solutions |
Key Features
- Operates on global 4G, 5G, ISM, and multiple IoT frequency bands.
- Omnidirectional puck antenna form with 5 dB antenna gain.
- Robust and weather-resistant ABS casing with aluminium mounting bracket.
- Includes a 5 meter low loss CFD195 cable with SMA male connector.
- Wall or bracket mounting with secure L-type mount installation.
- Supports RF protocols including IEEE 802.15.4, NB IoT, Bluetooth BLE, WiFi, ZigBee, LoRaWAN, and others.
- Wide operating temperature range from -20 to +80 °C.
- 50 Ohm impedance and max input power of 50 W for reliable signal transmission.
Product Description
Siretta OSCAR1A/5M/SMAM/S/S/31 is a high-performance puck multi-band antenna featuring SMA Male connector and 5 meter cable length, supporting frequency range from 410 MHz to 5990 MHz. This omnidirectional antenna provides 5 dBi gain and operates over multiple wireless protocols including 5G, 4G LTE, NB IoT, Bluetooth BLE, IEEE 802.15.4, ZigBee, LoRaWAN, GSM/GPRS, and UMTS bands.

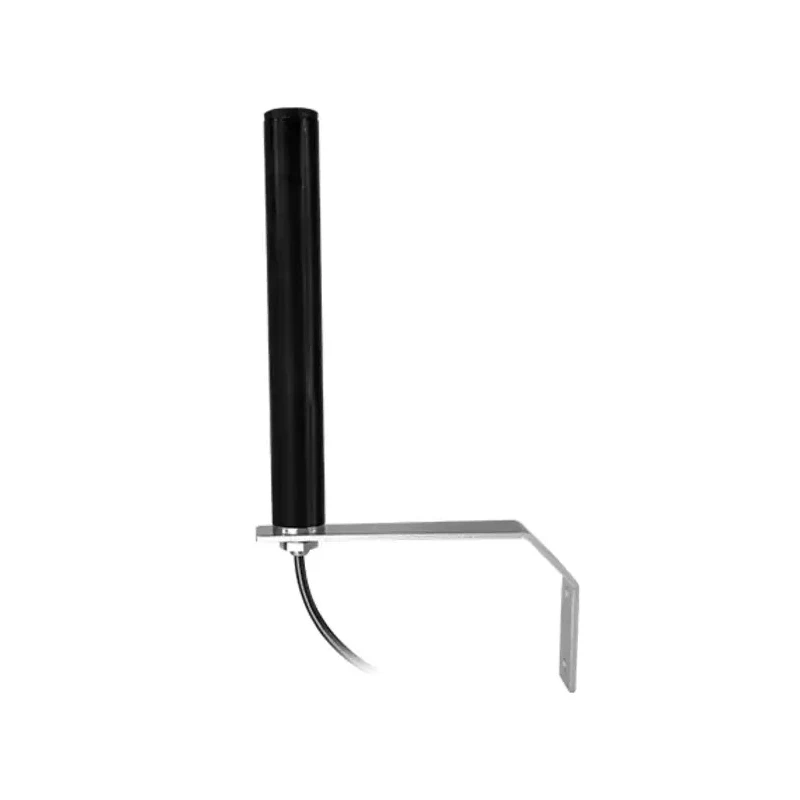

The antenna's robust construction features a durable black ABS plastic casing covering the radiating element and an aluminium mounting bracket for secure wall or bracket installation using an L-type mount. Its monopole radiating element design ensures consistent communication reliability and wide coverage.
Designed for external mounting, the antenna is ground plane independent and can withstand environmental conditions within an operating temperature range of -20 to +80 °C. Its low loss CFD195 cable with 4.95 mm diameter results in improved signal quality for remote sensor monitoring, alarm and security systems, IoT applications, and industrial communication networks.
The Siretta OSCAR1A/5M/SMAM/S/S/31 operates with a 50 Ohm impedance and supports a maximum input power of 50 W. Compact and lightweight, its physical dimensions are 205 mm height by 25 mm diameter, weighing only 250 grams.
Operates on a wide spectrum covering 2G, 3G, 4G, 5G, and multiple IoT protocols. Environmentally sealed for outdoor use with robust ABS and aluminium materials. High-quality monopole radiator for enhanced omnidirectional signal performance.
Includes 5 m low loss cable terminated with SMA male connector for easy integration. Secure L-type mounting bracket for fixed installation on walls or brackets. Ideal for industrial, manufacturing, laboratory, and telecom infrastructure applications.
Supports communication across NB IoT, LoRaWAN, Sigfox, Cat-M, ZigBee, Bluetooth, and WiFi standards.
This antenna is suitable for a wide range of industries requiring reliable wireless communication solutions including construction monitoring, smart agriculture, security alarm systems, and water treatment plants. Explore more in the Multi-Band Antennas category on EnvMart for complementary RF components and connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a frequency range of 410 MHz to 5990 MHz, supporting various wireless protocols.
The antenna provides a gain of 5 dBi, enhancing signal reception and transmission capabilities.
It features an SMA Male connector, making it compatible with various devices and systems that accept this type of connection.
The Siretta OSCAR1A antenna operates effectively within a temperature range of -20 to +80 °C.
The antenna is constructed with a robust ABS casing and an aluminium mounting bracket, suitable for outdoor use.
This model includes a 5-meter low loss CFD195 cable, which helps maintain signal quality over distance.
The antenna has an impedance of 50 Ohm, which is standard for many RF applications.
The antenna is designed for L-type mounting, allowing for secure installation on walls or brackets.
This unit weighs 250 grams, making it lightweight and easy to handle during installation.
The antenna has a height of 205 mm and a diameter of 25 mm, making it compact for various applications.
Yes, the Siretta OSCAR1A antenna is designed for external mounting and is environmentally sealed for outdoor conditions.
