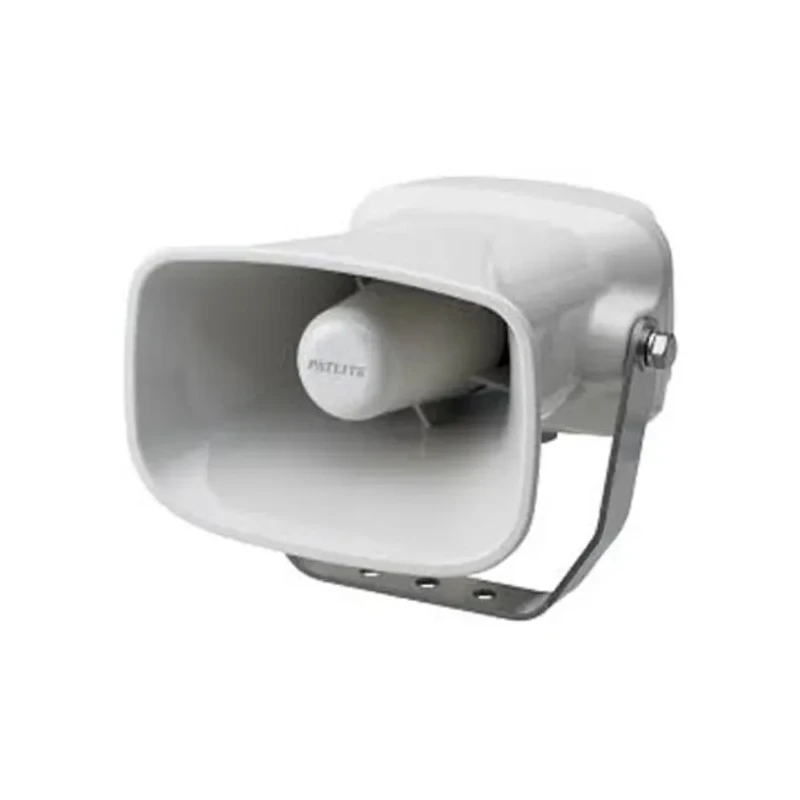

Patlite EHS Series Electronic Sounder Wall Mount IP65 AC/DC 24V DC 32-Tone 110 dB at 1m

Free Delivery in India | Lowest Global Shipping Charges

Patlite EHS Series Electronic Sounder Wall Mount IP65 AC/DC 24V DC 32-Tone 110 dB at 1m

Name: Patlite EHS Series Electronic Sounder Wall Mount IP65 AC/DC 24V DC 32-Tone 110 dB at 1m
Brand: PATLITE
SKU: 142535
Price: 475.51 USD
Availability: InStock



Category Electronic Sounder Brand PATLITE Condition New

Specifications

Country of Origin	Japan
Diameter	166.5mm
Brand	Patlite
Model	IP65
IP Rating	IP65
Mount Type	Wall
Housing Material	Polycarbonate
Series	EHS
Maximum Operating Temperature	50°C
Current Type	AC/DC
Current consumption	15mA
Minimum Operating Temperature	-20°C
Terminal type	Cable
Maximum Supply Voltage	24V dc
Housing Colour	White
Tone Type	Alarm
Sound Level at 1m	110dB
Maximum Sound Level	110dB
Number of Tones	32
Base Length	166.5mm
Base Width	198.2mm

Key Features

IP65 rated housing provides dust-tight and water-resistant protection for indoor and outdoor use.
Operates on AC/DC 24V supply with a current consumption of 15mA.
Produces up to 110 dB sound level at 1 meter distance with 32 selectable alarm tones.
Durable polycarbonate housing in white color with wall mount design for easy installation.
Operates reliably within temperature range of -20°C to 50°C.
Cable terminal type allows straightforward wiring.
Diameter of sounder is 166.5 mm with a base width of 198.2 mm for secure mounting.
Complies with international standards including CE, CSA-C22.2 No. 205-M1983, FCC Part 15 Subpart B Class 4, RoHS, and UL 464.

Product Description

Patlite EHS-M1TE Electronic Sounder Wall Mount is a robust industrial signaling device designed for high quality audio alarm and notification functions. Featuring an IP65 rated polycarbonate housing, it is fully protected against dust and water ingress, making it suitable for both indoor and outdoor applications.

This model operates on a 24V DC or AC power supply with efficient current consumption of only 15mA, ensuring low energy usage while delivering powerful sound output. The sounder provides 32 preloaded selectable tones with an alarm volume of 110 dB at a distance of 1 meter, making it audible across large industrial areas.

The sounder’s white polycarbonate housing is durable and designed for wall mounting, with overall dimensions including a diameter of 166.5 mm and base width of 198.2 mm. It operates reliably in temperatures ranging from -20°C to 50°C, supporting harsh industrial environments.

The device is equipped with cable terminals facilitating simple wiring connections. It is certified to meet various critical safety and performance standards including CE, CSA-C22.2 No. 205-M1983, FCC Part 15, RoHS compliance, and UL 464 certification.

Its reliable performance and wide tone selection make it ideal for diverse operational setups in manufacturing and processing plants. IP65 protection for dust and water resistance. AC/DC 24V operation with low current consumption.

32 selectable alarm tones with 110 dB volume at 1m. Durable white polycarbonate wall-mount housing. Wide operating temperature range from -20°C to 50°C. Cable terminal type wiring. Certified to CE, CSA, FCC, RoHS, and UL standards.

Suitable for industrial, automation, and process control use. Explore more electronic signaling solutions and industrial automation products on EnvMart for comprehensive application needs.
