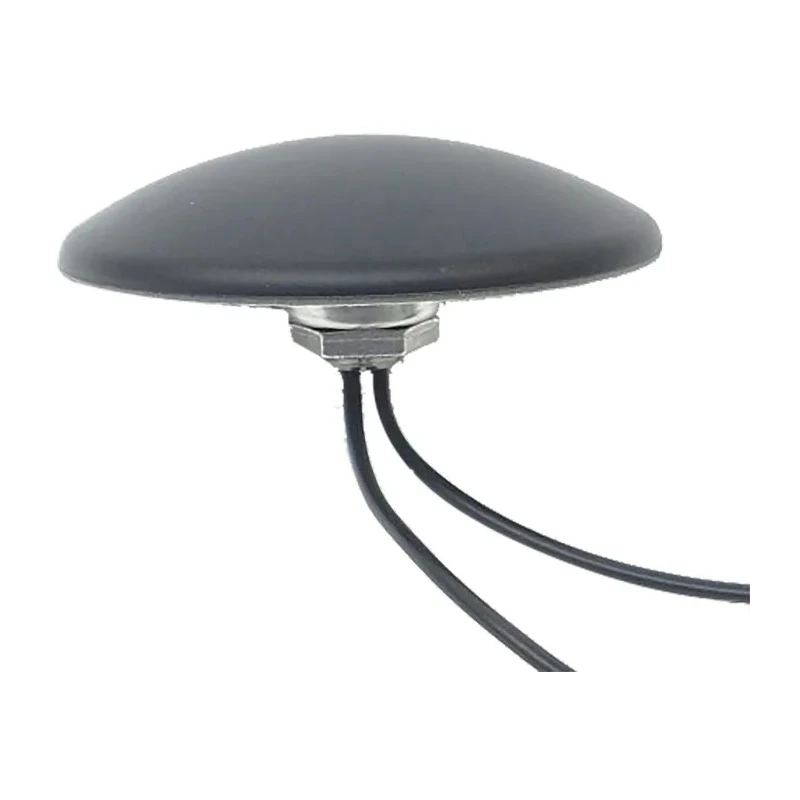

Siretta Dome Multi-Band Antenna with SMA Connector 890 MHz to 2.1 GHz, 2G GSM/GPRS, 3G UMTS TANGO15/3M/SMAM/SMAM/S/S/22

Free Delivery in India | Lowest Global Shipping Charges

Siretta Dome Multi-Band Antenna with SMA Connector 890 MHz to 2.1 GHz, 2G GSM/GPRS, 3G UMTS TANGO15/3M/SMAM/SMAM/S/S/22

Name: Siretta Dome Multi-Band Antenna with SMA Connector 890 MHz to 2.1 GHz, 2G GSM/GPRS, 3G UMTS TANGO15/3M/SMAM/SMAM/S/S/22
Brand: Siretta
SKU: 142507
Price: 20.22 USD
Availability: InStock



Category Multi-Band Antennas Brand Siretta Condition New

Specifications

Country of Origin	China
Diameter	94 mm
Brand	Siretta
Operating Temperature	-40 to +85°C
Height	15 mm
Model	TANGO15/3M/SMAM/SMAM/S/S/22
Cable	RG174 coaxial cable
Connector Type	SMA
Series	Tango 15
Gain	2.5dBi
Lead Length	3m
Protection	IP65 Rated
Impedance	50 ohm
Maximum Frequency	2.1GHz
Connector Gender	Male
Minimum Frequency	890MHz
Internal/External	External
RF Protocols	2G (GSM/GPRS), 3G (UTMS), GPS
Antenna Physical Form	Dome
Antenna Mount Type	Through Hole/Bolted
Directivity	Omni-Directional
Antenna Internal Construction	Active GPS Antenna with LNA
Number of Bands	4
GPS Gain	25dB
GSM Polarization	Vertical
GPS Polarization	RHCP

Key Features

The antenna supports multiple frequencies from 890 MHz to 2.1 GHz covering GSM, GPRS, UMTS, and GPS.
It features a durable dome physical form designed for external installation with an IP65 rating.
Includes a 3 meter RG174 coaxial cable with SMA male connectors for easy mounting and connection.
Offers omni-directional directivity with 2.5 dBi GSM gain and 25 dB GPS gain for enhanced signal reception.
The unit operates reliably between -40°C and +85°C, suitable for harsh environments.
Compact dimensions include 94 mm diameter and 15 mm height for low-profile applications.
Mounting is through hole or bolted using an M12 thread ensuring secure installation.
The antenna combines two separate antennas into one unit, simplifying installations especially in vehicle tracking applications.

Product Description

Siretta TANGO15/3M/SMAM/SMAM/S/S/22 Dome Multi-Band Antenna is a versatile external antenna designed for 2G GSM/GPRS, 3G UMTS, and GPS communication systems. Its compact dome form factor allows unobtrusive installation with a height of only 15 mm and a diameter of 94 mm. The antenna's omni-directional design and high gains of 2.5 dBi for GSM and 25 dB for GPS ensure effective signal transmission and reception in a variety of environments, including demanding outdoor and vehicular applications.

The antenna comes with a 3 meter RG174 coaxial cable terminated with SMA male connectors on both ends, providing reliable connectivity and easy integration. The robust construction includes an IP65 rating for protection against dust and water ingress, making it suitable for industrial, automotive, and telecommunications installations requiring durable multi-band antenna solutions.

Featuring through-hole and bolted mounting options including an M12 screw thread, this antenna offers flexible and secure attachment methods. The Tango 15 series antenna is renowned for integrating multiple frequency bands into a single compact device, simplifying deployment for applications such as vehicle tracking, asset monitoring, and GPS-based navigation systems.

The antenna supports four bands covering cellular and GPS protocols. Designed for low profile and external mounting in harsh environmental conditions. Includes SMA male connectors and a 3 meter coaxial cable for easy installation.

Omni-directional antenna with high gain facilitates superior signal quality. Operating temperature range from -40°C to +85°C ensures performance in diverse climates. IP65 rating provides strong environmental protection for outdoor usage.

Compact dimensions and mounting flexibility suit various industrial and automotive uses. Ideal for 2G and 3G cellular communications plus GPS applications.

This antenna model is manufactured in China and brings a robust, multi-band solution for modern communication requirements. Its combination of GSM, GPRS, UMTS, and GPS capabilities in one device makes it highly practical for integrated system designs needing reliable positioning and cellular connectivity.
