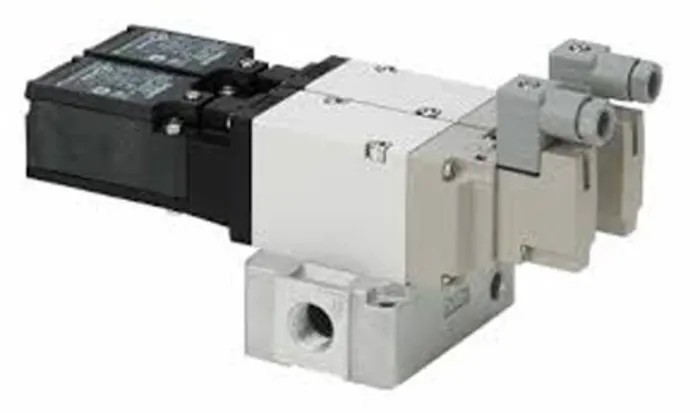

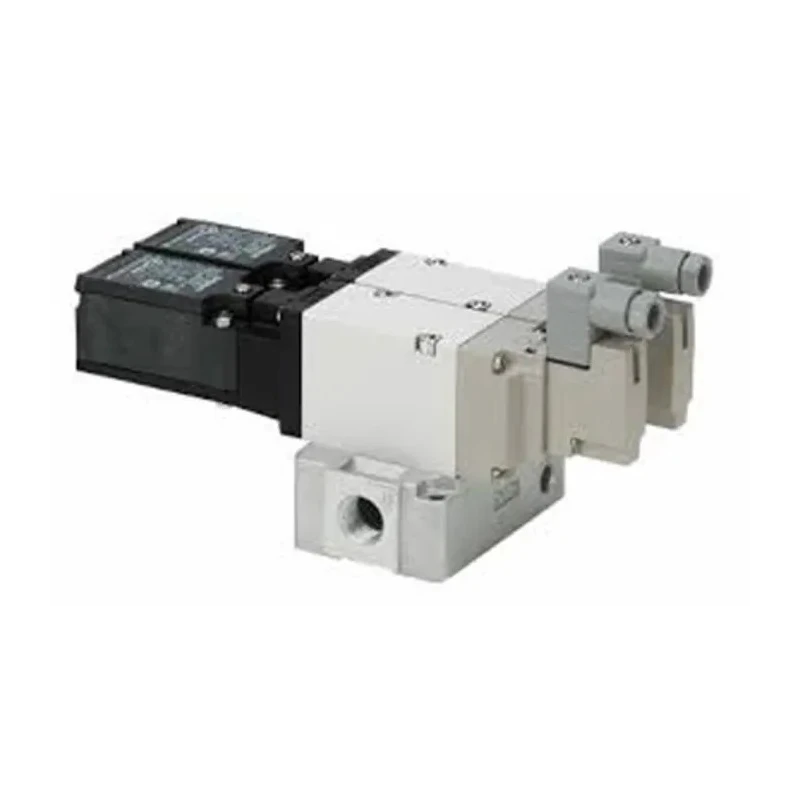

SMC Pneumatic Solenoid Valve 3/2 NC Single Solenoid G Threaded Port 3/8 in Die Cast Aluminium 24V VP500

SMC VP544-5DZ1-03F-X538 Pneumatic Solenoid Valve is a 3/2 NC type valve from the VP500 series, designed for industrial pneumatic fluid control systems. The valve utilizes a single solenoid actuation method operating at 24 volts with a low power consumption of 1.5 watts, ensuring energy-efficient operation.

Constructed with a robust die cast aluminium body and rubber seals, it provides durability and reliable sealing performance. The valve ports are threaded G standard female type with a size of 3/8 inch, incorporating three ports. This valve features a normally closed function with return spring operation, enabling safe and controlled fluid venting in compliance with ISO13849-1 Category 3 & 4 safety standards.

The valve design includes two positions and is equipped with a DIN electrical connector alongside a body ported mount type for ease of installation and integration. It supports maximum operating pressures up to 0.7 MPa and pilot pressures ranging from 0.2 to 0.7 MPa. The operational temperature ranges from -10°C to 50°C, suitable for various industrial environments.

Additional features include a limit switch and LED position indicator that continuously monitor the valve's energized or de-energized state, enhancing system safety by preventing operation during failures. The valve is modular and compatible with SMC FRL systems and is available with internal or external pilot options, designed for maximum reliability with a maximum operating frequency of 30 cycles per minute.

This pneumatic solenoid valve finds applications in industrial safety control systems such as tyre pressure testing machinery, moulding machines, and assembly machines. It complies with RoHS and CE approvals, ensuring adherence to environmental and safety requirements.

Operates at 24V with 1.5W solenoid power consumption. Durable die cast aluminium body with rubber seals for secure sealing. 3/2 normally closed valve function with return spring operation. Threaded G standard female ports sized 3/8 inch with 3 ports for fluid connections.

Equipped with a limit switch and LED position indicator for operational safety monitoring. Suitable for maximum operating pressure up to 0.7 MPa and pilot pressures between 0.2 to 0.7 MPa. Operates within temperature range of -10°C to 50°C.

Compact size: 112.9 mm length, 66.7 mm width, 106.7 mm height. Complies with RoHS and CE safety standards.

Available for use in safety control applications within pneumatic systems in industrial manufacturing, automotive testing, molding, and assembly industries. This valve enables compliance with ISO13849-1 safety regulations ensuring reliable and safe operation of compressed air systems.
