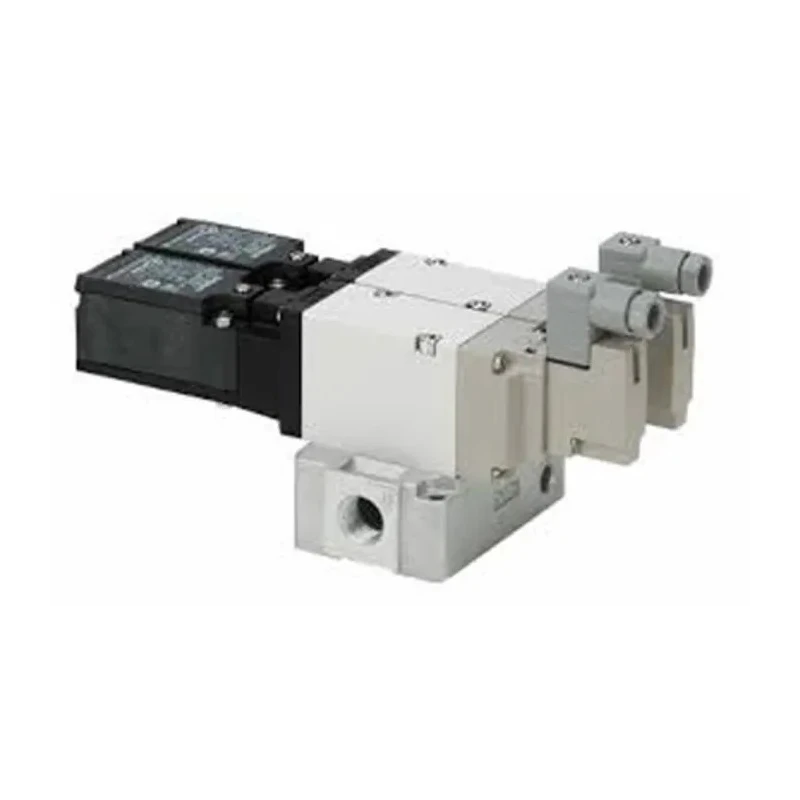

SMC Pneumatic Solenoid Valve 3/2 NC Solenoid G Threaded 3 Port Die Cast Aluminium 24V DC VP500

SMC VP544-5DZ1-03F-M-X538 Pneumatic Solenoid Valve 3/2 NC Solenoid G VP500 Series with 24V DC voltage is engineered for robust and reliable pneumatic control in industrial automation systems.

Manufactured with die cast aluminium body providing lightweight strength and resistance to industrial environments, this valve features a 3-port configuration with threaded G standard female ports measuring 3/8 inch suitable for diverse pneumatic fluid power applications.

Operating safely within temperatures from -10°C to +50°C and maximum pressure rating of 7 bar, this valve ensures dependable performance under varying operating conditions. The solenoid consumes a minimal 1.5W power, allowing for efficient continuous operation with low energy use.

Protected with an IP65 enclosure rating, it offers dust-tight and water-resistant qualities to ensure durability in harsh environments. Electrical connectivity is secured through a DIN connector, enabling seamless integration into pneumatic control panels and FRL units.

Designed according to ISO13849-1 Category 3 and 4 standards, it provides high operational safety, suitable for critical manufacturing processes, assembly lines, and safety-related applications in automated industrial settings.

This valve supports an operational frequency range from 1 cycle per week up to 30 cycles per minute, catering both to slow and fast-acting control requirements in complex pneumatic systems.

Compact dimensions (Length: 112.9 mm, Width: 66.7 mm, Height: 106.7 mm) facilitate installation in tight industrial spaces without compromising performance. Constructed from die cast aluminium for durability and corrosion resistance.

Operates on 24V DC with low power consumption of 1.5W for energy efficiency. Features a 3/2 NC valve function with 3 threaded female ports sized 3/8 inch. Suitable operating temperature range from -10°C to 50°C for versatile environmental use.

Maximum operating pressure up to 7 bar with pilot pressure range of 0.2 to 0.7 MPa. IP65 rated enclosure providing protection against dust and water ingress. Equipped with a DIN connector for secure electrical connection and modular integration.

Complies with ISO13849-1 safety standards for critical industrial applications. Designed for up to 30 cycles per minute operational frequency supporting dynamic automation processes. Compact dimensions with length 112.9mm, width 66.7mm, and height 106.7mm.

This pneumatic solenoid valve by SMC is ideal for automated manufacturing, controlling pneumatic actuators, industrial safety systems, assembly line operations, and centralised pneumatic control environments. Its reliable performance and international certifications make it suitable for demanding industrial and commercial pneumatic applications.
