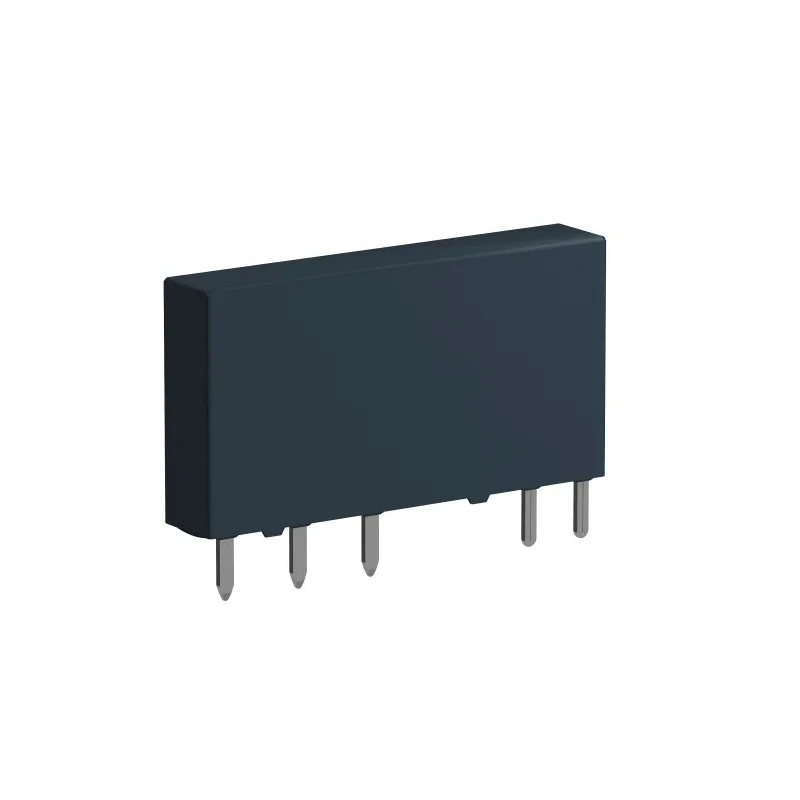

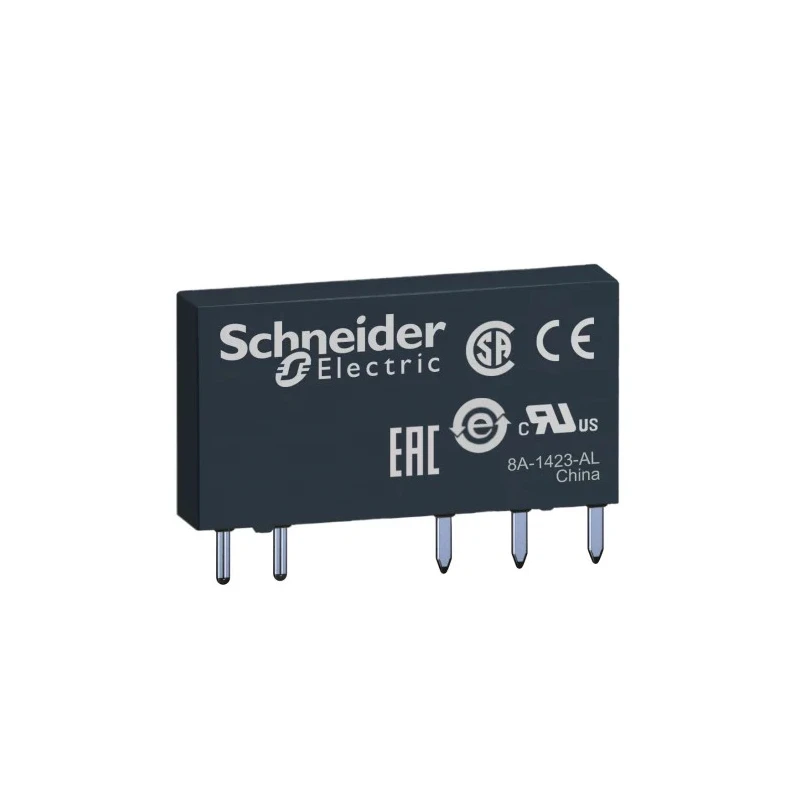

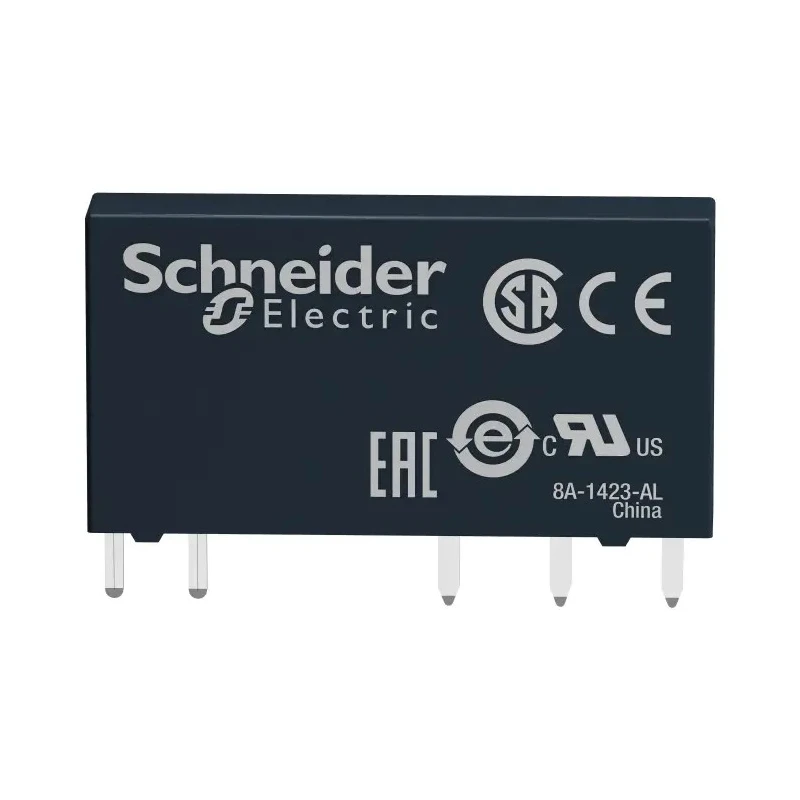

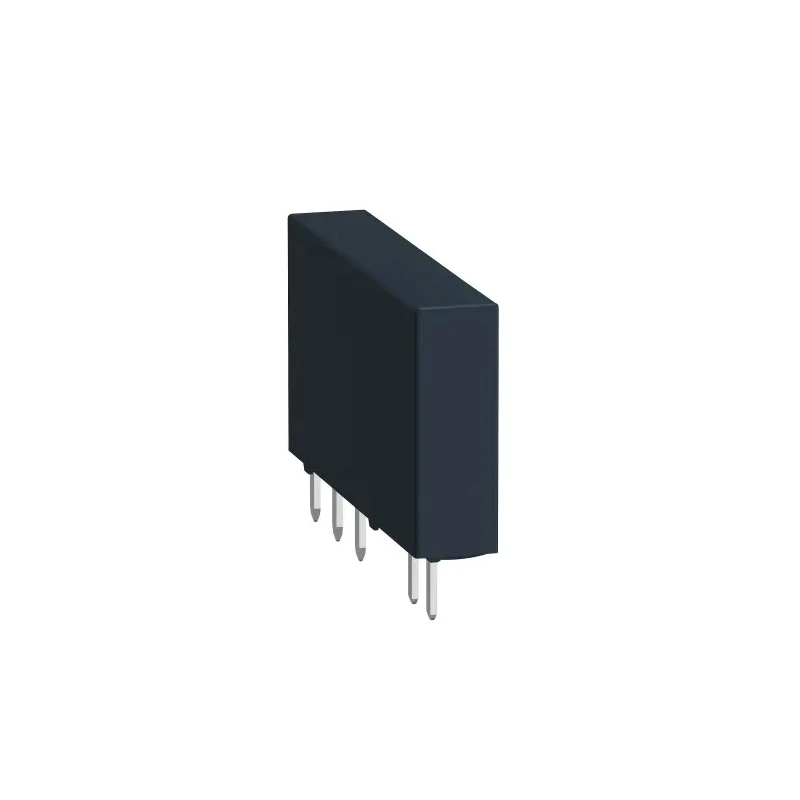

Schneider Electric PCB Power Relay 24V DC Coil 6A Switching Current SPDT RSL1GB4BD

Schneider Electric RSL1GB4BD PCB Power Relay is designed for industrial automation and control applications, featuring a coil voltage of 24V DC and a 6A switching current. This relay uses a Single Pole Double Throw (SPDT) contact configuration and is mountable on PCB, facilitating compact integration in control systems.

The RSL1GB4BD is part of the Harmony Relay RSL series, known for its slim 6mm width that maximizes space efficiency when mounted on DIN rails or directly on printed circuit boards. It features plug-in terminals enabling easy installation and reliable connections, suitable for hard-wired logic systems and programmable logic controllers (PLCs).

Operating reliably within -40°C to 55°C, the relay supports switching voltages up to 277V AC and DC. The silver alloy contact material enhances electrical performance and durability, making it suitable for high breaking capacity or low-level current applications.

This power relay is ideal for use in industrial machinery, HVAC controls, process automation, and manufacturing equipment requiring dependable electrical switching and space-saving design. It complies with CSA and EAC standards, ensuring quality and safety.

Compact 6mm width to save enclosure space. 24V DC coil voltage with 3.4kΩ coil resistance. 6A switching current with high AC/DC voltage handling. Silver alloy contacts for durability. Wide operating temperature range from -40°C to 55°C.

Plug-in terminal type for easy socket mounting. Compatible with industrial PLC and automation systems.

This Schneider Electric power relay enhances machine reliability and installation flexibility in industrial control panels and PCB applications. Explore more Power Relays and automation components suitable for your industrial requirements at EnvMart.
