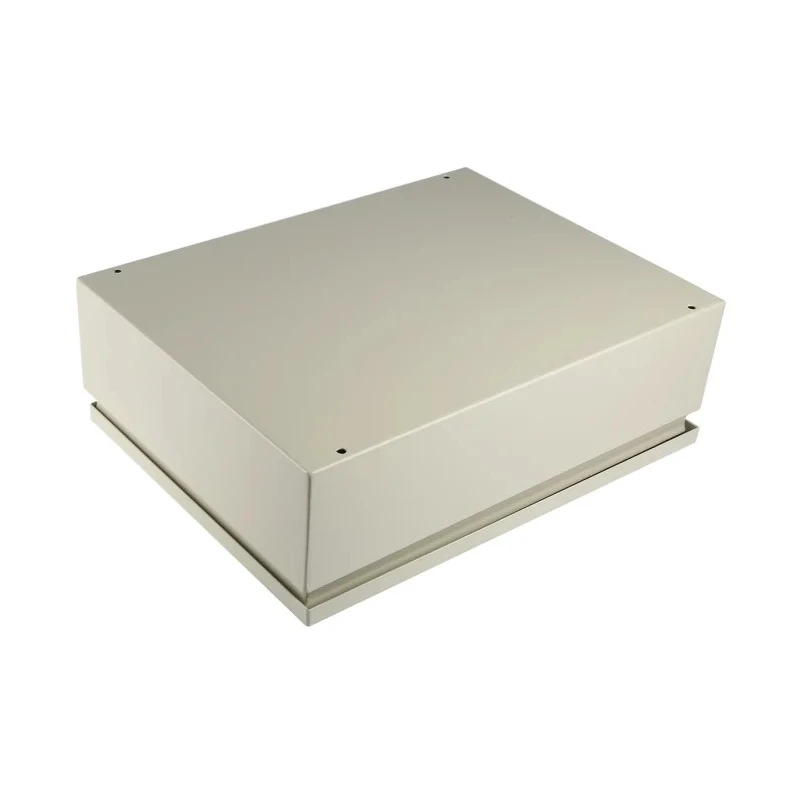

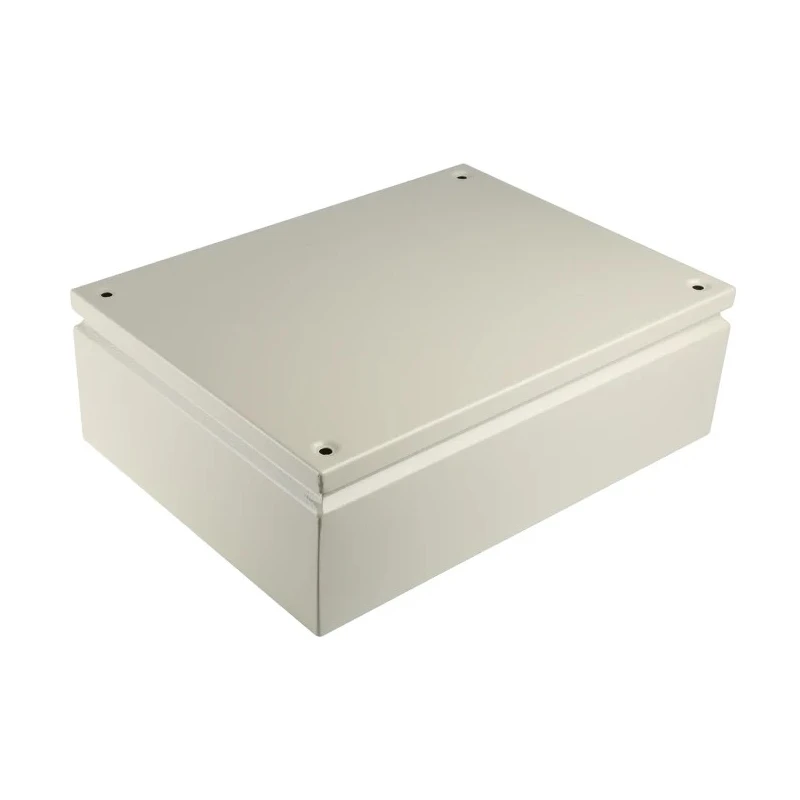

RS PRO Grey Steel IP66 Rated Junction Box IECEx Certified, 400 mm x 300 mm x 120 mm IP66

RS PRO IP66 Junction Box, model IP66, is a rugged grey steel enclosure designed for protecting electrical wiring and connections in industrial and hazardous environments. Measuring 400 mm in length, 300 mm in width, and 120 mm in height, this enclosure is made from 1.5 mm gauge steel and finished with a RAL 7032 grey coating suitable for a wide range of applications.

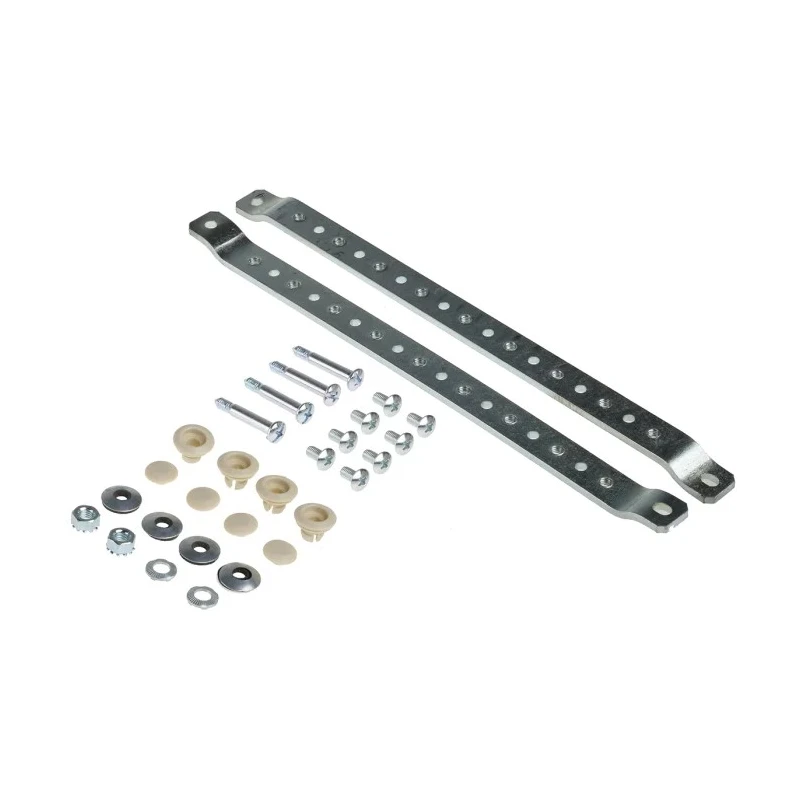

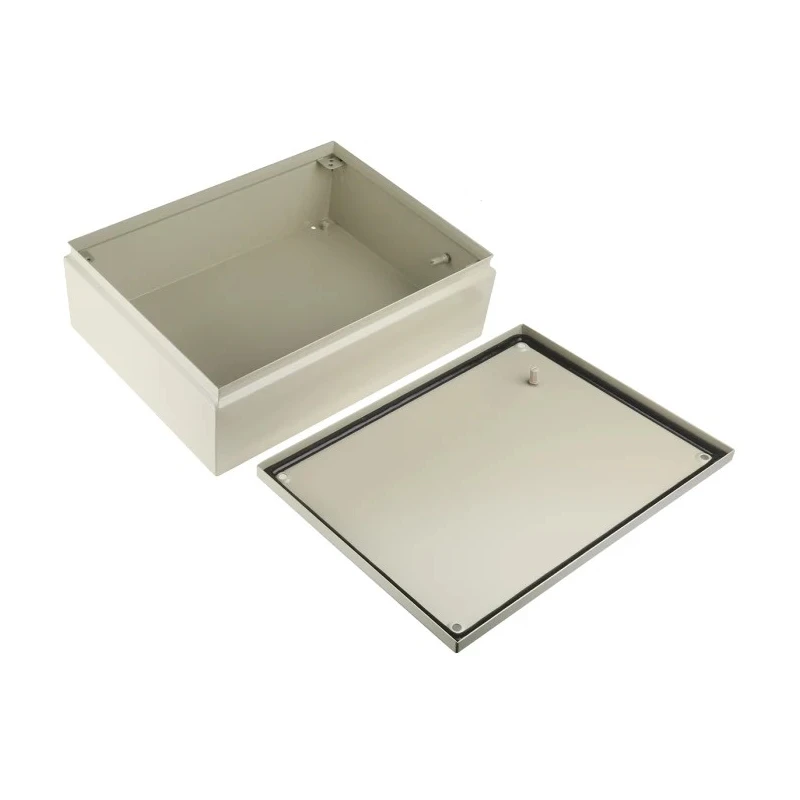

The junction box features an internal black polyurethane seal gasket fitted inside the lid to achieve an IP66 ingress protection rating, ensuring resistance to water ingress, dust, and debris. The robust welded basic body and 2.6 mm thick steel wall mounting brackets provide reliable structural integrity for demanding installations. This product is IECEx certified indicating it meets international safety standards for use in hazardous areas.

These terminal boxes are ideal for housing DIN rail terminals and accessories required for electrical and electro-mechanical jointing applications. Typical uses include building construction, industrial automation, outdoor electrical protection, and environments requiring sealed enclosures resistant to water and impact.

The junction box is designed for simple wall mounting without the inclusion of terminals, knockouts, flanges, DIN rails, or chassis plates, allowing customization as needed by the user. Its grey steel finish ensures corrosion resistance and professional appearance.

Constructed from 1.5 mm gauge steel with 2.6 mm gauge steel wall brackets. IP66 rating for dust and water ingress protection. Includes black polyurethane internal lid seal gasket. IECEx hazardous area certification. Dimensions: 400 mm x 300 mm x 120 mm (L x W x H).

RAL 7032 grey color for corrosion resistance. All welded basic body ensures robustness. Suitable for housing DIN rail terminals and accessories. Ideal for industrial, construction, and outdoor electrical protection. Does not include terminals, knockouts, flange, DIN rail, or chassis plates.

This RS PRO junction box is an essential component for electrical enclosures, providing reliable protection and compliance with international standards. It is suitable for a variety of industrial, commercial, and construction applications requiring IP66-rated electrical protection.

Explore our complete range of electrical enclosures and Junction Boxes for comprehensive protection solutions at EnvMart.
