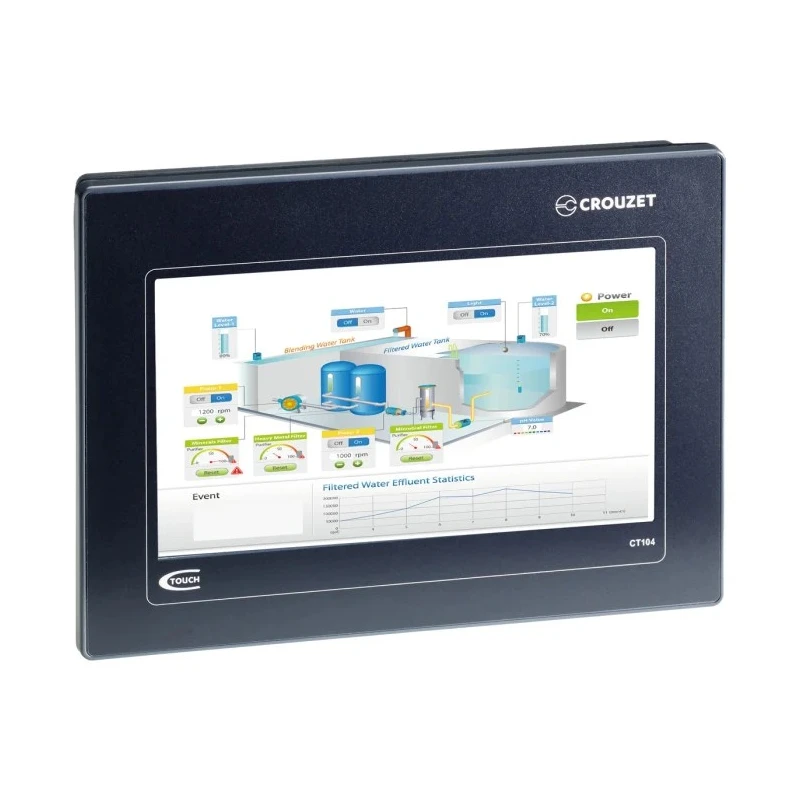

Crouzet Millenium 3 Series Touch Screen HMI 4.3 in TFT LCD Display 480 x 272 Pixel 88970524
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | TFT LCD |
| Brand | Crouzet |
| Length | 128mm |
| Model | 88970524 |
| Depth | 38.25mm |
| IP Rating | IP65 |
| Width | 102mm |
| Series | em4, Millenium 3 |
| Number Of Ports | 2 |
| Display Resolution | 480 x 272 pixel |
| Maximum Operating Temperature | 40°C |
| Port Type | USB 2.0 |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB 2 |
| Standards/Approvals | CE |
| Diagonal Display Size | 4.3in |
| Wide viewing angle | 70° horizontally and vertically |
| MTP6/50 | USB 2.0 port for programming |
| MTP8/50 | Ethernet port for programming and communication |
Key Features
- Compact resistive touch panel with LED backlight and 65536 colors.
- Wide viewing angle of 70 degrees both horizontally and vertically.
- Integrated fan-less cooling system for silent operation.
- 128 MB flash memory for storage of alarms, recipes, text, graphics, and animations.
- Multiple interfaces including USB 2.0 port and RS232/RS485 serial port for programming and communication.
- CE certified with IP65 rating for robust industrial use.
- Operating temperature range from 0°C to 40°C.
- Designed specifically for Millenium 3 micro-PLC integration.
Product Description
Crouzet 88970524 Millenium 3 Series Touch Screen HMI is a programmable touch panel designed for the Millenium 3 micro-PLC, featuring a 4.3 inch TFT LCD display with a resolution of 480 x 272 pixels. This compact resistive touch panel supports 65536 colors and includes an LED backlight for clear visibility.
The device offers a wide viewing angle of 70 degrees horizontally and vertically, ensuring excellent display visibility from different perspectives. It operates with a fan-less cooling system that guarantees silent and maintenance-free operation under industrial environmental conditions.
This HMI includes 128 MB of flash memory for storing texts, data, graphics, animations, alarms, and recipes, making it highly suitable for complex industrial automation tasks. Communication and programming interfaces include a USB 2.0 port (MTP6/50), RS232/RS485 serial ports, and optionally an Ethernet port (MTP8/50) for enhanced connectivity.

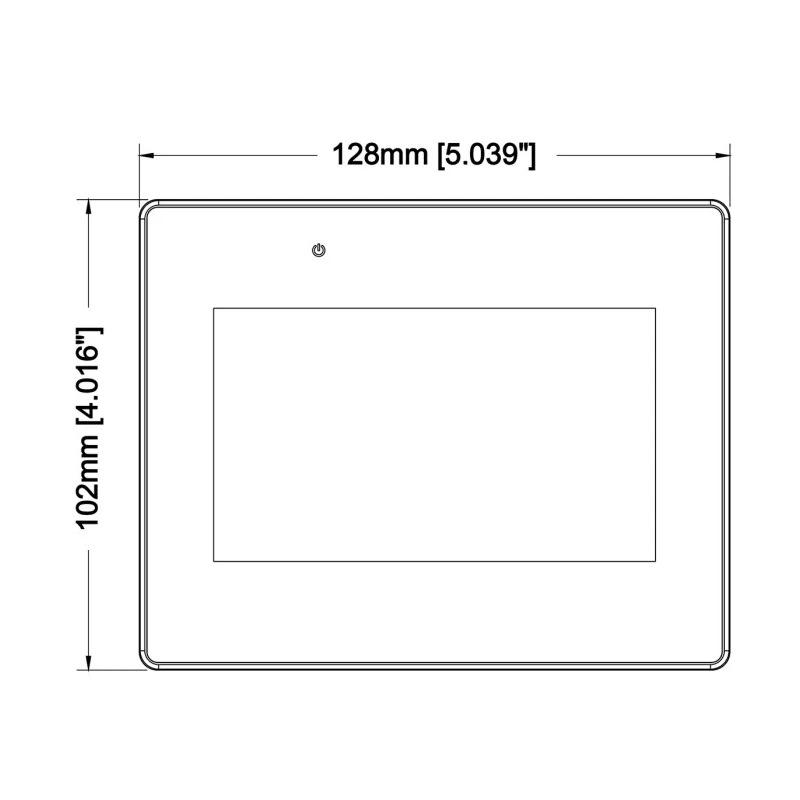

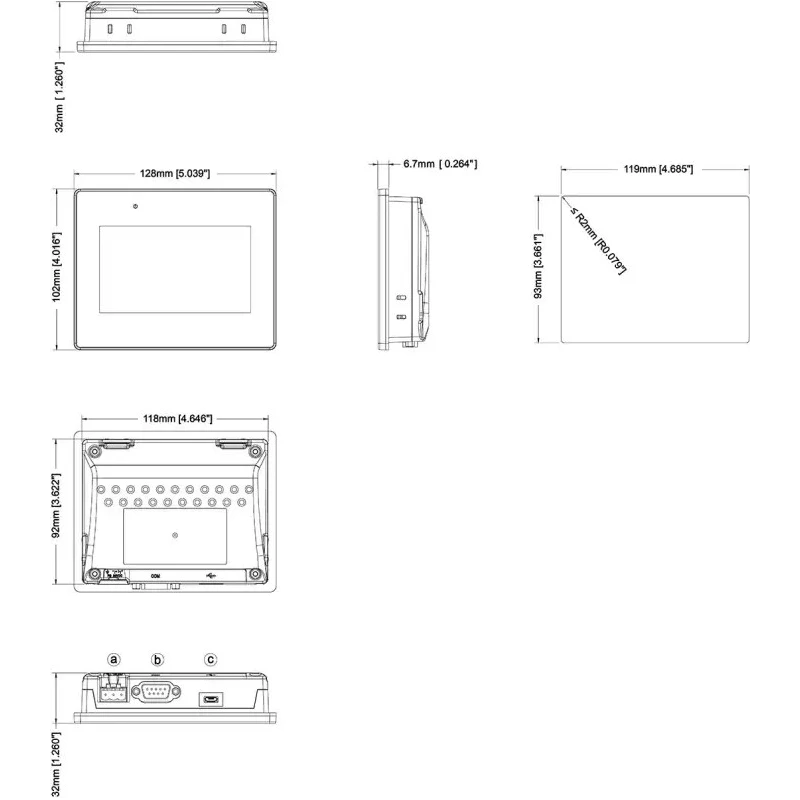

With CE certification and IP65 protection rating, the product is robust against dust and water, making it ideal for demanding industrial environments. It supports operation from 0°C up to 40°C, with compact dimensions of 128 mm length, 102 mm width, and 38.25 mm depth for easy integration within control panels and machinery.
The Millenium 3 series offers significant improvements over previous generations, including increased memory capacity, higher analogue input resolution, and improved display capabilities with ladder or function block programming options.
Compact 4.3 inch TFT LCD resistive touch panel with LED backlight. Wide viewing angle and fan-less cooling system for durability. 128 MB flash memory for extensive data storage. Multiple programming and communication ports including USB 2.0 and RS232/RS485.
Robust CE certified design with IP65 protection. Operating temperature range 0°C to 40°C. Compact dimensions suited for industrial automation systems.
This HMI display is designed for use in industrial automation, manufacturing, process control, and HVAC systems, providing a versatile and reliable human-machine interface solution. It integrates seamlessly with the Millenium 3 micro-PLC for efficient control and monitoring tasks.
