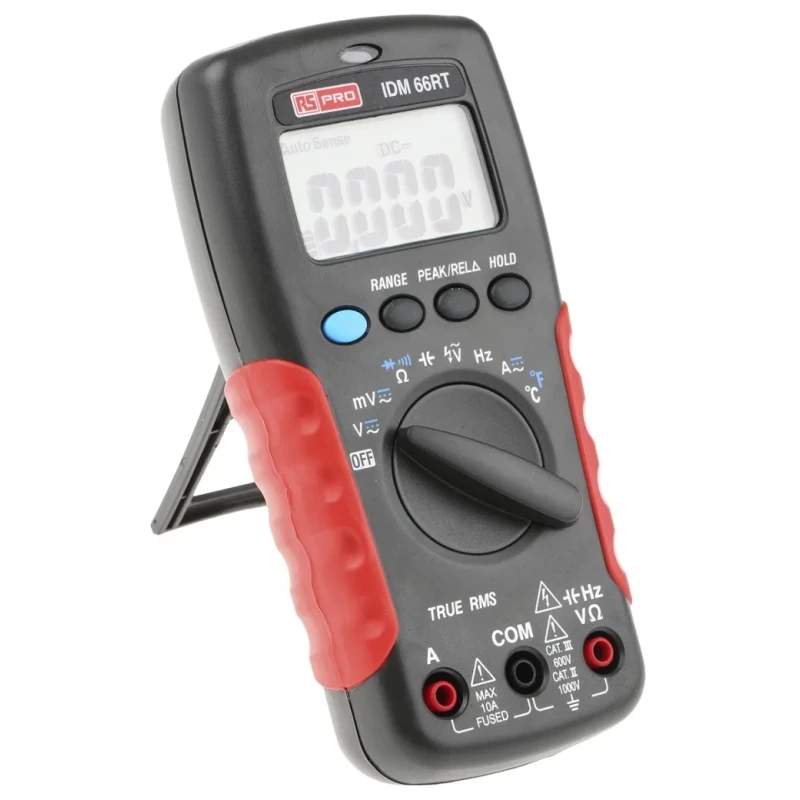

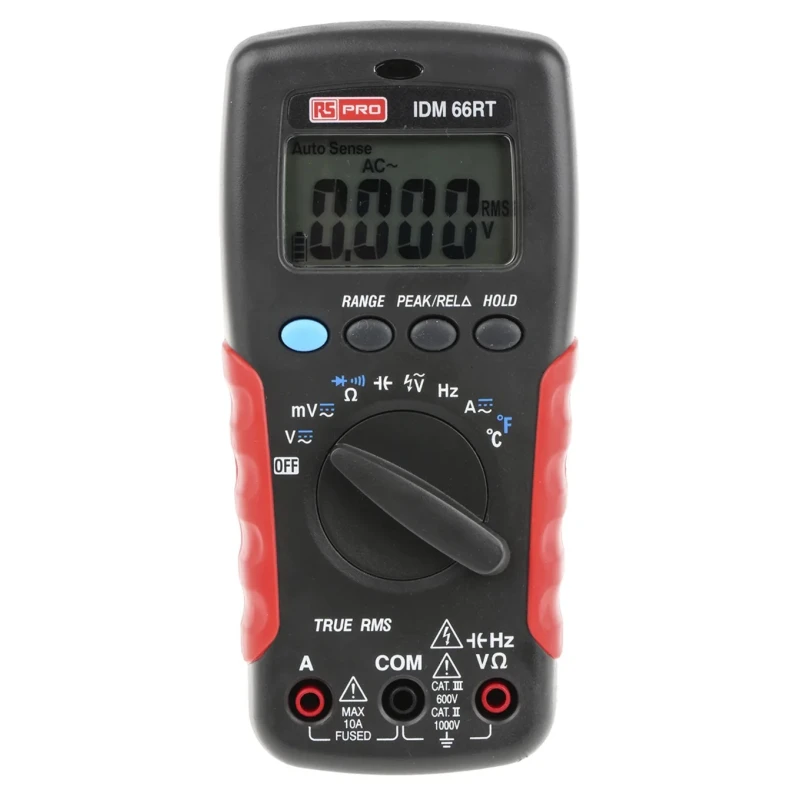

RS PRO Handheld Multimeter True RMS Model IDM66RT with 1kV DC Measurement, LCD Display, CAT III 600V Safety Level IDM66RT
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | LCD |
| Display | 6000 Counts |
| Brand | RS PRO |
| Battery Life | 300h |
| Battery type | AM4, AAA 1.5 V, IEC LR03 |
| Height | 156mm |
| Length | 74mm |
| Model | IDM66RT |
| Gross Weight | 250g |
| Width | 44mm |
| Maximum Operating Temperature | 50°C |
| AC Voltage Resolution | 1mV ac |
| Minimum Operating Temperature | -10°C |
| Dimensions (W x H x D) | 74 x 156 x 44 mm |
| DC Current Accuracy | ±1 % rdg + 2 Digits |
| Pollution Degree | 2 |
| DC Voltage Resolution | 0.01 mV dc |
| AC Current Accuracy | ±1.5 % rdg + 5 Digits |
| Resistance Resolution | 100mΩ |
| DC Current Resolution | 0.001A ac |
| Multimeter Type | Handheld |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature |
| Maximum DC Voltage Measurement | 1kV dc |
| Maximum Frequency | 500Hz |
| Safety Category Level | CAT III |
| Safety Category Voltage | 600V |
| AC Function | AC V and AC A specifications are ac coupled, true RMS |
| Amprobe 35XPA Digital Digital Multimeter, 400 mA, 400 mA, 600 VBrand | Amprobe |
| RS PRO IDM73 Handheld Multimeter True RMSBrand | RS PRO |
Key Features
- Measures AC and DC voltage up to 1000 V with high accuracy.
- True RMS technology ensures precise readings on irregular AC signals.
- Resistance measurement with 100mΩ resolution including diode and continuity checks.
- Capacitance measurement up to 10 mF and frequency measurement up to 500 Hz.
- Ergonomic design includes soft grips, smart tilt stand, nail hook, and test lead storage.
- Battery powered by AM4 AAA 1.5 V cells with approximately 300 hours of operation.
- CAT III 600 V safety category suitable for industrial electrical applications.
- Compact size of 74 x 156 x 44 mm and lightweight at 250 g enhances portability.
Product Description
RS PRO IDM66RT handheld multimeter True RMS is a high-quality measuring instrument designed for precise electrical testing in industrial and electronic systems. This handheld Digital Multimeter offers a wide range of electrical measurements including AC/DC voltage, current, resistance, capacitance, frequency, and temperature, all displayed on an easy-to-read LCD screen with 6000 counts.
Equipped with True RMS technology, the IDM66RT ensures accurate readings even on non-linear and distorted AC signals, making it ideal for troubleshooting electrical circuits with variable waveforms. It supports measurements up to 1 kV DC voltage and provides high-accuracy readings with ±0.5% DC voltage and ±1.5% AC current accuracy.
The instrument's resistance resolution is 100mΩ, allowing fine detection of circuit continuity and diode integrity. Capacitance measurement capability extends up to 10 mF, while frequency measurement is supported up to 500 Hz. Temperature measurement is available up to 400°C for comprehensive multi-functional use.

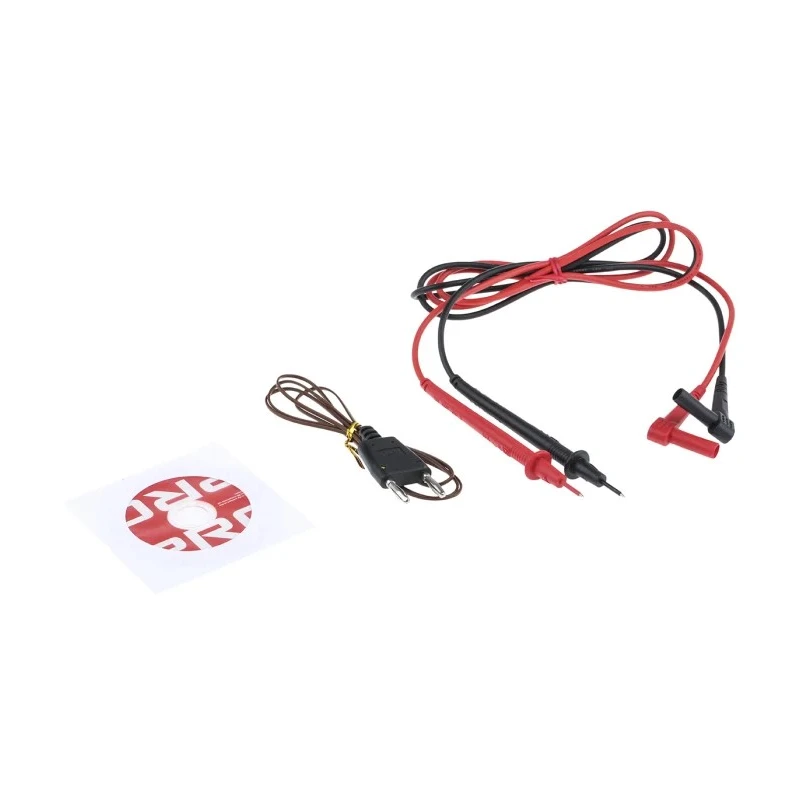

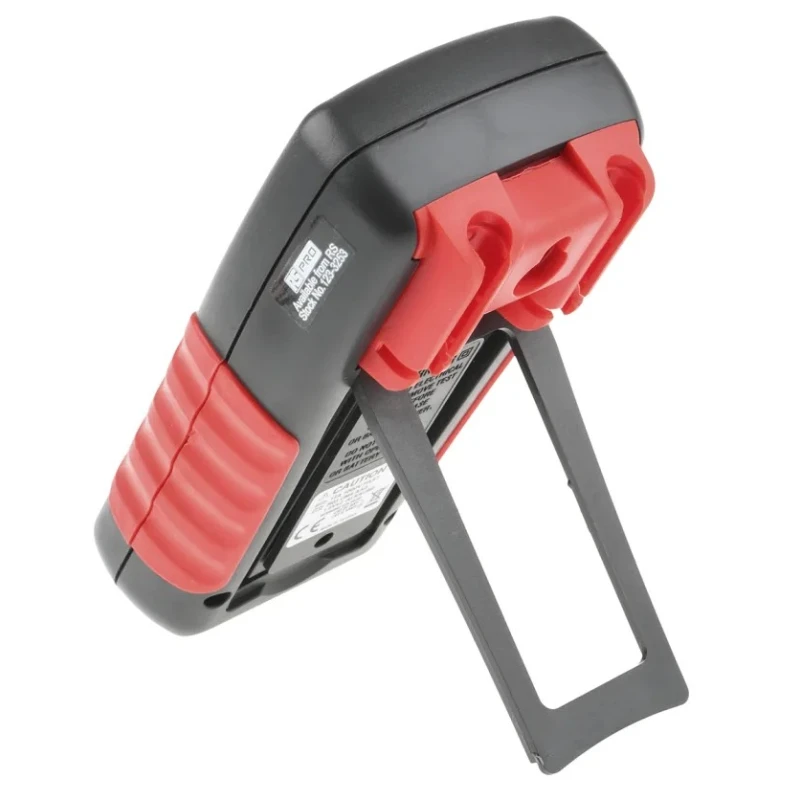

Designed with user convenience in mind, the IDM66RT features soft grips for comfortable handling, a built-in smart tilt stand for ergonomic operation, a nail hook, and integrated test lead storage to keep accessories organized. Operating within -10°C to 50°C, it is suited for a range of environments.
The device meets CAT III 600 V safety standards, making it suitable for industrial and commercial electrical testing tasks.
This RS PRO multimeter is an essential tool for electrical professionals, technicians, and engineers requiring reliable and accurate measurements for maintenance, testing, and repair across industrial, manufacturing, HVAC, and laboratory settings.
Measures AC and DC voltages up to 1000 V. True RMS for accuracy on irregular AC waveforms. Resistance, continuity, diode checking features. Capacitance and frequency measurements included. Ergonomic design with tilt stand and test lead storage.
Long battery life of approximately 300 hours. CAT III 600 V safety rating for electrical safety. Compact and lightweight for handheld use. Temperature measurement up to 400°C capabilities. Explore more measuring and testing instruments in the RS PRO brand collection at EnvMart for trusted industrial and laboratory solutions.
