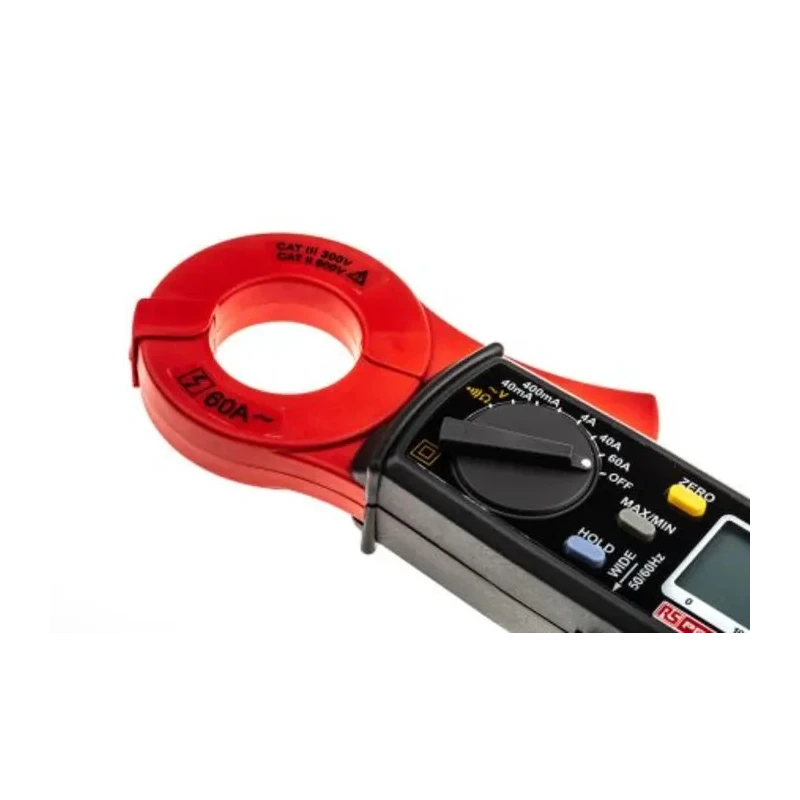

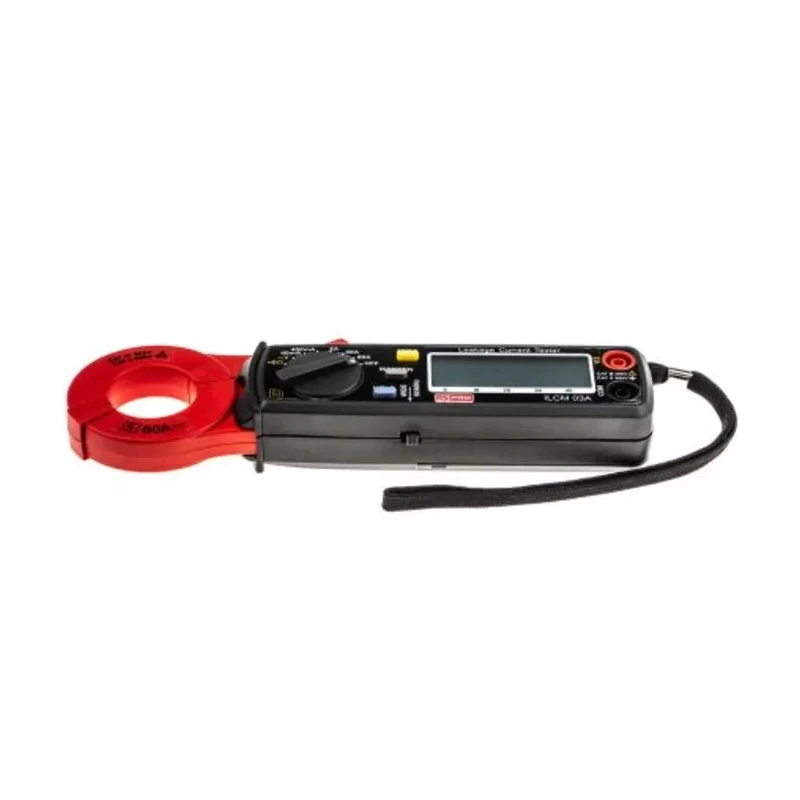

RS PRO Leakage Current Clamp Meter 60 A AC Voltage 400 V Resistance 400 Ω Model ILCM03A

RS PRO ILCM03A clamp meter is a new leakage current measurement device designed for non-intrusive and safe measurement of AC currents up to 60 A and voltages up to 400 V AC. It combines the functions of a digital multimeter with a clamp sensor, enabling electricians to clamp around conductors without direct contact, ensuring both safety and convenience during electrical testing tasks.

The clamp meter features a 30 mm jaw opening that accommodates a wide range of conductor sizes, making it versatile for service, maintenance, and installation work in electrical environments.

Its multi-range measurement capability includes 40 mA, 400 mA, 4 A, 40 A, and 60 A ranges, offering high resolution of 10 µA on the lowest range. The device’s accuracy is ±1 % for AC current measurements, with ±1.5 % for AC voltage readings, providing reliable data for professional use.

The meter includes a large 3-digit, 4000 count LCD display with an analog bar graph for fast visual feedback, updating up to 30 times per second. Additional functions such as max/min data hold, zero/relative value setting, continuity beeper under 40 Ω, and selectable auto power-off enhance usability and battery life.

The unit is battery-powered, ensuring portability and ease of operation in diverse application settings. It is manufactured under RoHS compliance in Taiwan, Province of China, ensuring quality and environmental standards are met. The compact form factor of 210 x 62 x 35.6 mm and lightweight design (200 g including battery) make it suitable for fieldwork and lab environments.

Typical use cases include electrical testing, maintenance, and installation for industrial, manufacturing, commercial, and HVAC sectors, where precise and safe AC current and voltage measurements are critical.

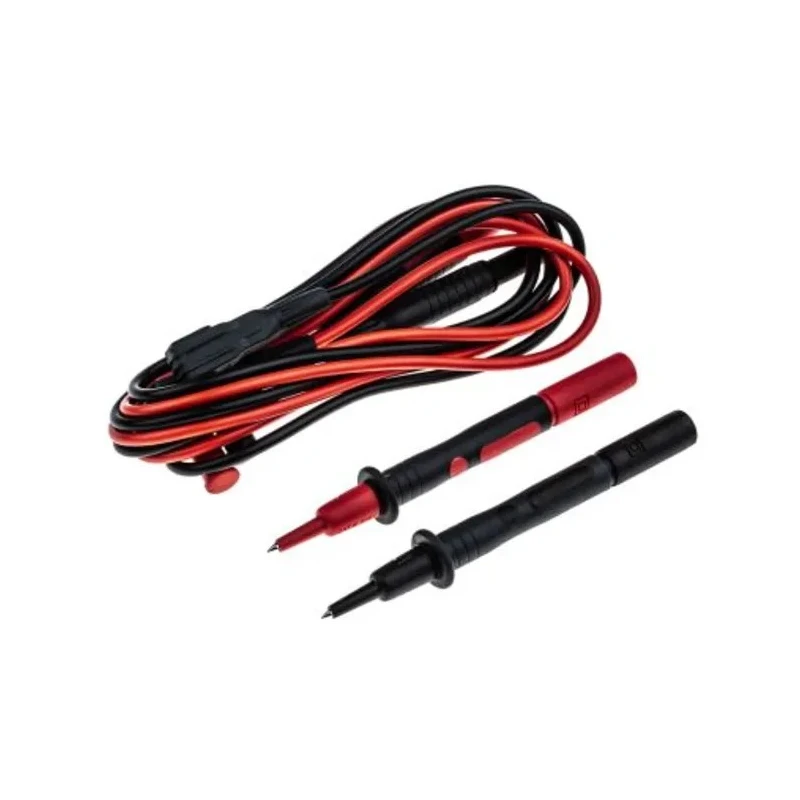

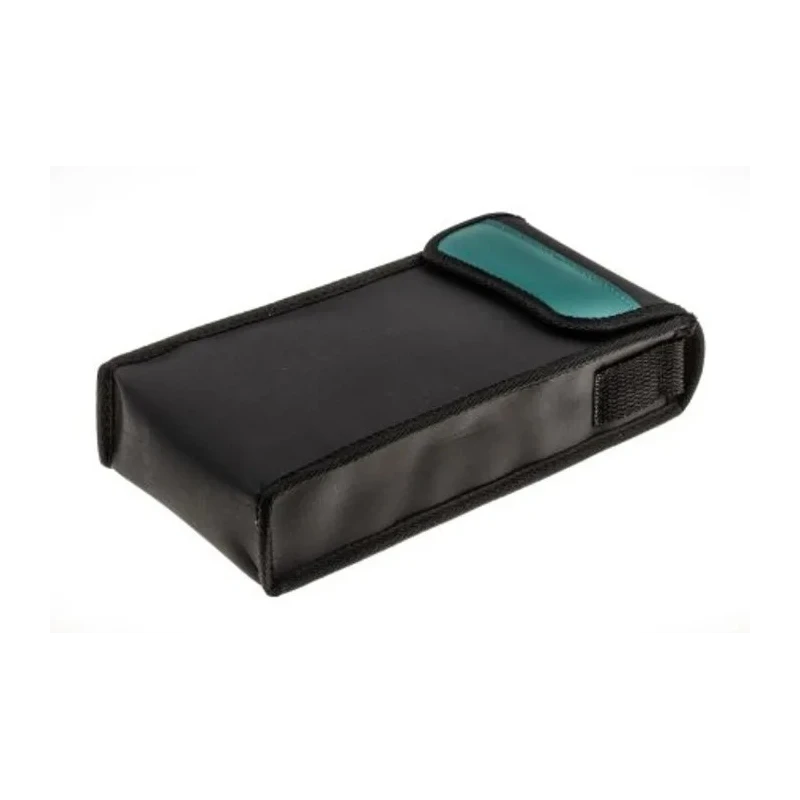

The package includes the clamp meter, carrying case for protection and transport, 1.5 V batteries, and user manual to facilitate immediate use and understanding of the instrument's features and operation.

RS PRO is known for reliability and quality in test and measurement instruments, offering cost-effective solutions that meet industrial standards. Measures AC current, AC voltage, and resistance with high precision. Features a 30 mm jaw opening suitable for various conductor sizes.

Offers up to five measuring ranges including 40 mA for fine resolution. Includes a large 4000 count LCD with analog bar graph display. Equipped with max/min data hold and auto power off functions. Supplied with carrying case, user manual, and batteries for immediate use.

Compact dimensions of 210 x 62 x 35.6 mm and lightweight at 200 g with battery. Compliant with RoHS standards and built for portable use in electrical testing. Explore RS PRO Clamp Meters in the EnvMart catalog to find the right instrument for your electrical measurement needs.
