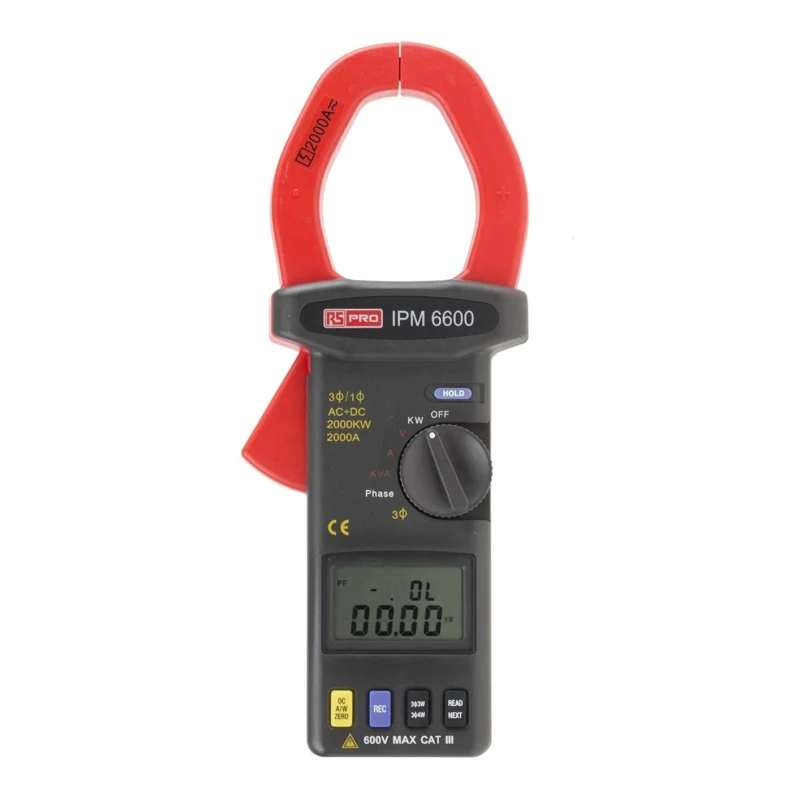

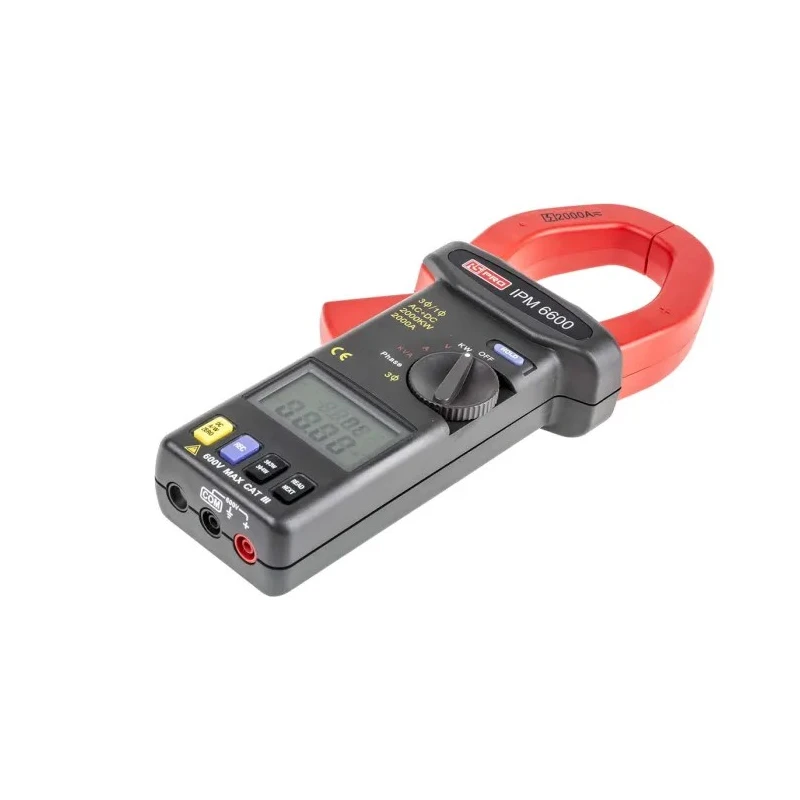

RS PRO IPM6600 Power Clamp Meter 2000 A dc 2 kA 600 V dc 600 V ac CAT III IPM6600

RS PRO IPM6600 Power Clamp Meter is a durable and precise clamp meter designed for industrial, electrical test, and measurement applications. It supports both AC and DC current up to 2000 A dc and AC current up to 2 kA with True RMS accuracy, ensuring reliable readings even under complex electrical conditions.

Equipped with a 40 mm maximum jaw opening, this power clamp meter can measure conductors up to 55 mm in diameter and busbars approximately 65 x 24 mm in size. Its versatile measurements include DC voltage, AC voltage, frequency, power factor, phase angle, and reactive power, making it suitable for three-phase systems and balanced or unbalanced loads.

The IPM6600 is powered by a 9 V alkaline PP3 battery for portability and convenience on the job site. Its robust safety rating of CAT III at 600 V protects users during measurement in demanding industrial environments. The dual 4-digit LCD display with 10,000 counts allows clear and detailed reading of measurements.

This clamp meter features auto zero, auto range, and auto detection functions for current and voltage types, enhancing ease of use and accuracy. The product conforms to RoHS standards, ensuring environmentally friendly manufacturing and compliance.

This current clamp meter is ideal for electricians and maintenance professionals conducting electrical testing, installing, and servicing electrical equipment safely without direct contact with conductors. The True RMS measurement capability compensates for distortions due to electronic loads, providing more precise readings than average RMS meters.

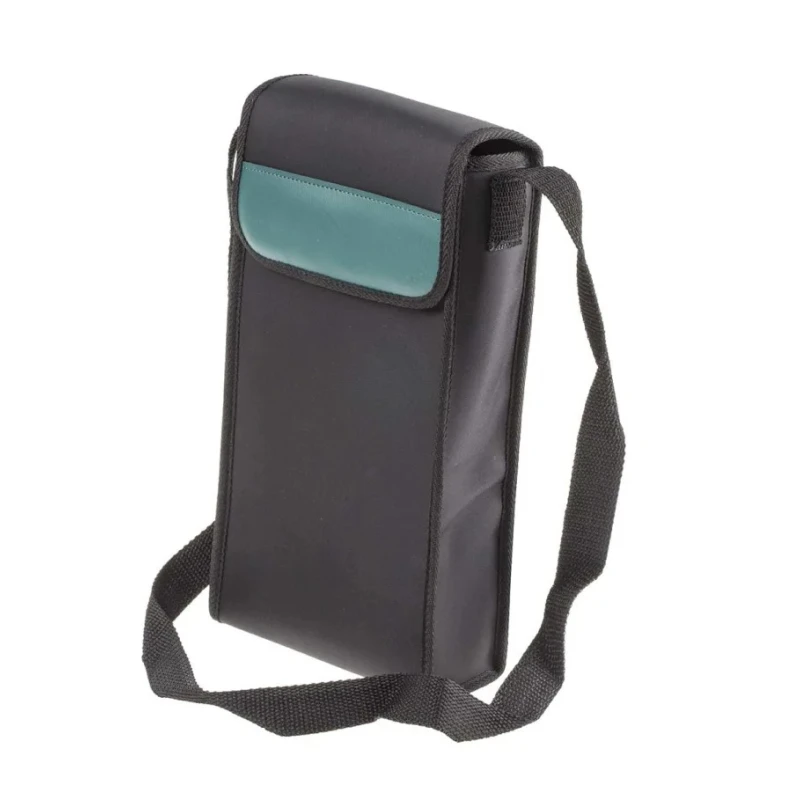

Dimensions are 271 mm in height, 112 mm in length, and 46 mm in width, with a weight of 647 g including batteries. The device is supplied with a protective carry case for secure transport.

Country of Origin: Taiwan, Province Of China. Measures AC and DC current up to 2000 A dc and 2 kA AC with True RMS accuracy. Supports voltage measurement up to 600 V for both AC and DC. Features CAT III safety rating compliant to 600 V applications.

Includes auto range and auto detection for AC/DC current and voltage. Equipped with a clear 4-digit dual LCD display with 10,000 counts. Clamp jaw opening of 40 mm suitable for conductors and busbars up to 55 mm. Powered by a 9 V alkaline PP3 battery ensuring portability.

Compact size of 271 x 112 x 46 mm and lightweight at 647 g including battery. Functions include power factor, frequency, phase angle, and reactive power measurement. Constructed to RoHS compliance with True RMS measurement for accurate reading on distorted waveforms.
