RS PRO RS330 Mini AC/DC Clamp Meter 400A 600V AC/DC True RMS LCD Display CAT III RS330

Free Delivery in India | Lowest Global Shipping Charges

RS PRO RS330 Mini AC/DC Clamp Meter 400A 600V AC/DC True RMS LCD Display CAT III RS330

Name: RS PRO RS330 Mini AC/DC Clamp Meter 400A 600V AC/DC True RMS LCD Display CAT III RS330
Brand: RS PRO
SKU: 141139
Price: 60.4 USD
Availability: InStock



Category Clamp Meter Brand RS PRO Condition New

Specifications

Country of Origin	China
Display Type	LCD
Brand	RS PRO
Battery type	AAA
Height	205mm
Length	70mm
Model	RS330
Gross Weight	200g
Width	37mm
Maximum Operating Temperature	50°C
AC Voltage Resolution	100V ac
Minimum Operating Temperature	-10°C
DC Voltage Resolution	100 V dc
Resistance Measurement Accuracy	±3 % rdg + 5 Digits
AC Current Accuracy	±3% + 4 Digits
AC Current Resolution	1mA
Maximum Jaw Opening	23mm
Standards/Approvals	RoHS
Functions Measured	DC Voltage, AC Voltage, Diode, Resistance, AC Current, Continuity
Maximum Resistance Measurement	20mΩ
Maximum AC Current Measurement	400A
Maximum DC Voltage Measurement	600V dc
Maximum AC Voltage Measurement	600V ac
Safety Category Level	CAT III
Safety Category Voltage	600V ac
Maximum Conductor Size	23mm
Clamp Meter Type	AC/DC Clamp Meter

Key Features

This clamp meter supports AC and DC voltage measurements up to 600V.
Measures AC current up to 400A with ±3% accuracy plus 4 digits.
Includes resistance measurement up to 20mΩ with ±3% reading accuracy.
Equipped with a 2000-count backlit LCD for clear visibility.
Compact design with a maximum jaw opening of 23mm for fitting conductors.
Battery-powered using AAA batteries for portability.
Features auto power off and display hold functions.
Safety rated to CAT III 600V with insulated input jacks.

Product Description

RS PRO RS330 Mini AC/DC Clamp Meter is designed for electrical testing and measurement in industrial, construction, and maintenance applications. It offers versatile functions including DC voltage, AC voltage, resistance, diode testing, continuity checking, and AC current measurement with high accuracy supported by True RMS technology. This model provides safe, quick, and non-intrusive current readings using a clamp sensor that fits conductors up to 23mm diameter.

The large backlit LCD display allows easy viewing in low light conditions. The compact and lightweight design ensures convenient handling and portability on the job. Powered by AAA batteries, this clamp meter ensures dependable field use with features like auto power off to conserve battery life.

It meets safety standards CAT III 600V and RoHS compliance, ensuring protection for users working on electrical equipment. Applications include electrical maintenance, troubleshooting, installation verification, and load current measurements in commercial and industrial environments.

This Clamp Meter supports AC and DC voltage measurements up to 600V. Measures AC current up to 400A with ±3% accuracy plus 4 digits. Includes resistance measurement up to 20mΩ with ±3% reading accuracy. Equipped with a 2000-count backlit LCD for clear visibility.

Compact design with a maximum jaw opening of 23mm for fitting conductors. Battery-powered using AAA batteries for portability. Features auto power off and display hold functions. Safety rated to CAT III 600V with insulated input jacks.

Operates in temperatures from -10°C to 50°C.

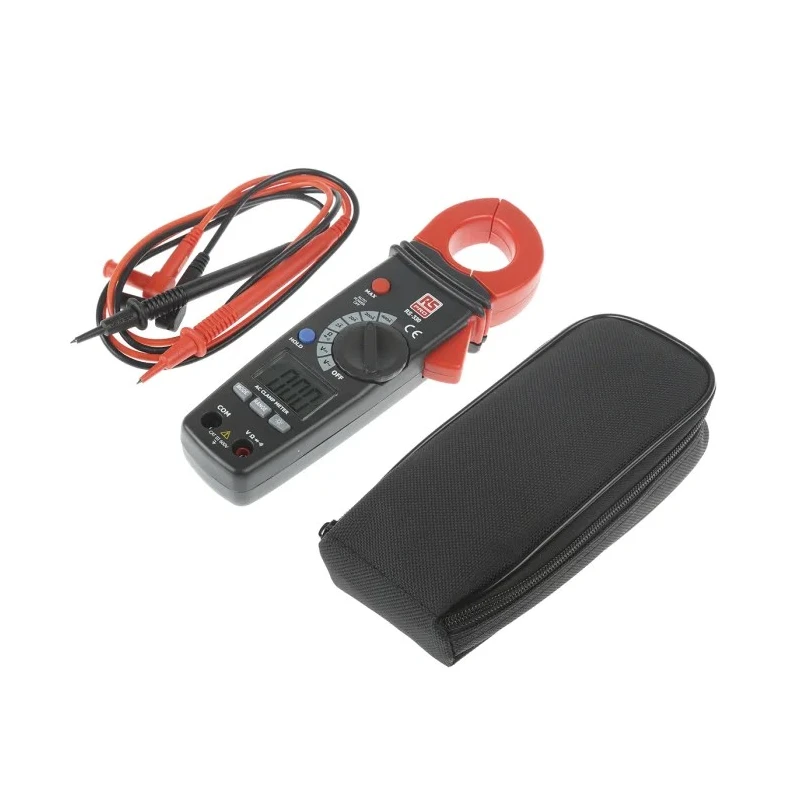

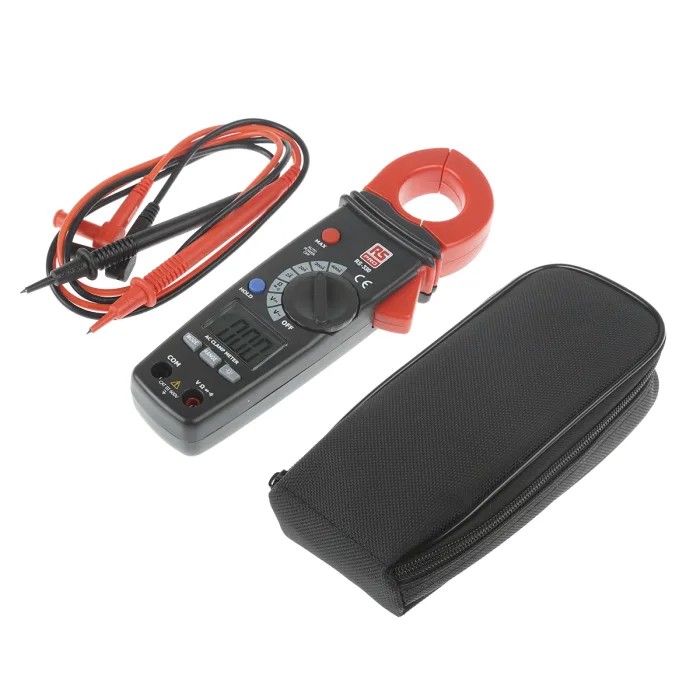

The RS PRO RS330 is a reliable tool for electricians, engineers, and maintenance personnel needing precise current and voltage measurements on the go. It is provided with a protective carrying case for safe transit and storage. As part of the RS PRO range, it combines quality, usability, and affordability for everyday electrical test and measurement tasks.
