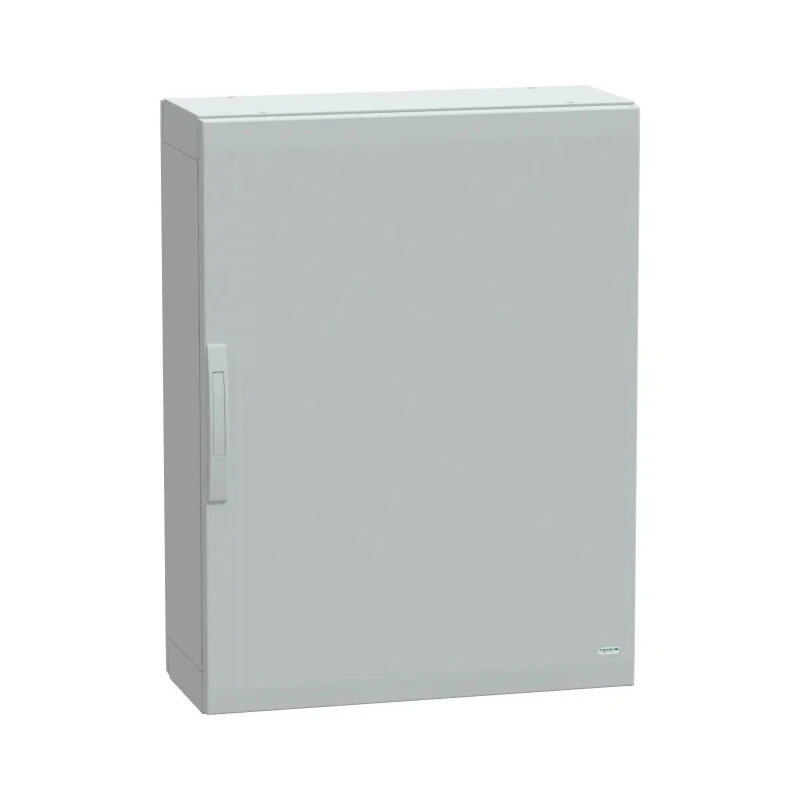

Schneider Electric PanelSeT Series Polyethylene Terephthalate 1-Door Floor Standing Enclosure IP65 320 mm NSYPLA1073G

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric PanelSeT Series Polyethylene Terephthalate 1-Door Floor Standing Enclosure IP65 320 mm NSYPLA1073G

Name: Schneider Electric PanelSeT Series Polyethylene Terephthalate 1-Door Floor Standing Enclosure IP65 320 mm NSYPLA1073G
Brand: Schneider Electric
SKU: 140995
Price: 1786.3 USD
Availability: InStock



Category Floor Standing Enclosures Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Colour	Grey
Body Material	Polyethylene Terephthalate
Model	NSYPLA1073G
IP Rating	IP65
Door Type	Opaque
Construction	Sealed
Series	PanelSeT
Number of Doors	1
External Width	750mm
External Depth	320mm
External Height	1000mm
Standards/Approvals	DNV Marine, IEC 60529, IEC 62208, IEC 62262, UL 508 A, UL/cUL Listed, Veritas

Key Features

Constructed from polyethylene terephthalate reinforced with fiberglass for high durability.
Features one opaque door with a 4-point lock and reversible 120° opening for access convenience.
Designed with sealed construction providing IP65 dustproof and water jet protection.
External dimensions are 1000 mm height, 750 mm width, and 320 mm depth for optimal floor space usage.
Rated fire resistance up to 960°C to protect sensitive components in extreme conditions.
Complies with multiple standards including IEC 60529, UL 508 A, and DNV Marine approvals.
Suitable for applications in medical devices, laboratory equipment, military facilities, and pharmaceutical industry.
Grey RAL 7035 color ensures professional and standardized appearance.

Product Description

Schneider Electric NSYPLA1073G PanelSeT Series is a floor standing enclosure constructed from polyethylene terephthalate reinforced with fiberglass, designed for industrial and commercial electrical installations. It features a robust sealed construction with one opaque door, providing IP65 ingress protection to safeguard electrical components from dust and low-pressure water jets.

The enclosure measures 1000 mm in height, 750 mm in width, and 320 mm in depth, offering ample space while maintaining a compact footprint suitable for various facility layouts. The door includes a 4-point locking system with a 5 mm double-bar insert lock mechanism for enhanced security and can be accessed from either the front or rear with a reversible 120° swing angle.

Its fire resistance rating up to 960°C elevates safety by protecting internal components during high-temperature events. Certified according to standards such as IEC 60529, IEC 62208, IEC 62262, UL 508 A, UL/cUL Listing, and DNV Marine, this enclosure meets rigorous industrial and marine requirements.

The enclosure's grey RAL 7035 color provides a neutral and professional look, ideal for environments such as medical device facilities, laboratories, military installations, and pharmaceutical production units. The sealed construction also minimizes environmental impact on sensitive internal equipment.

Durable polyethylene terephthalate reinforced with fiberglass body. Sealed construction with IP65 rating for dust and water resistance. Opaque single door with secure 4-point lock mechanism. Accessible from front and rear with reversible 120° door opening.

Fire resistance up to 960°C for enhanced safety. Complies with IEC, UL, and DNV Marine standards and approvals. Ideal for demanding industrial, laboratory, and military applications. Compact dimensions optimize floor space usage.

Explore the wide range of Schneider Electric electrical enclosures and components at EnvMart for reliable and certified industrial solutions.
