Schaffner IEC Power Entry Module Snap-in IEC Filter 250V AC 6A 2 Pole 2 Fuse Faston FN286-6-06

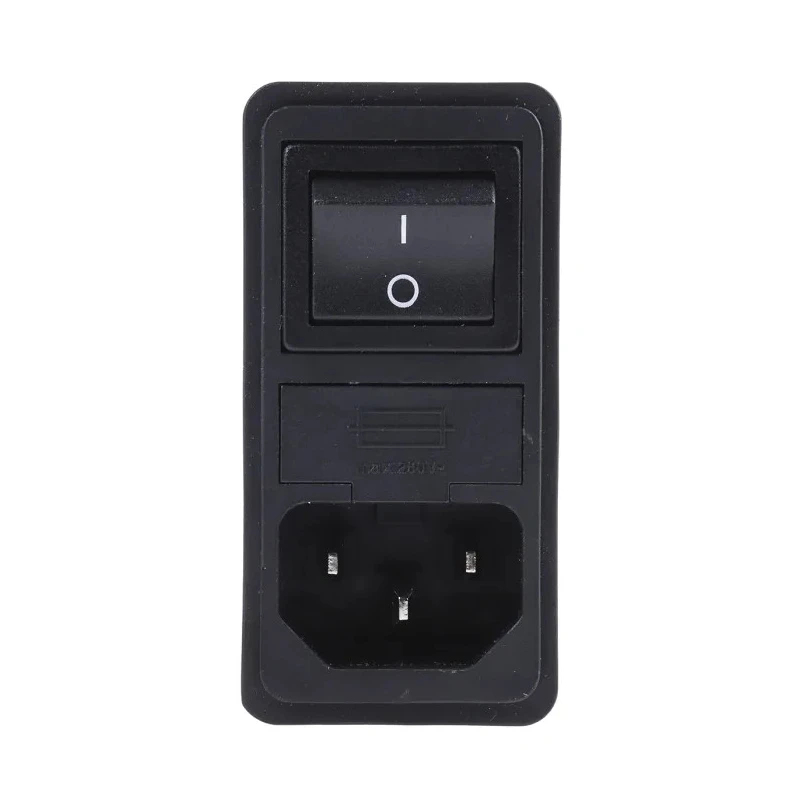

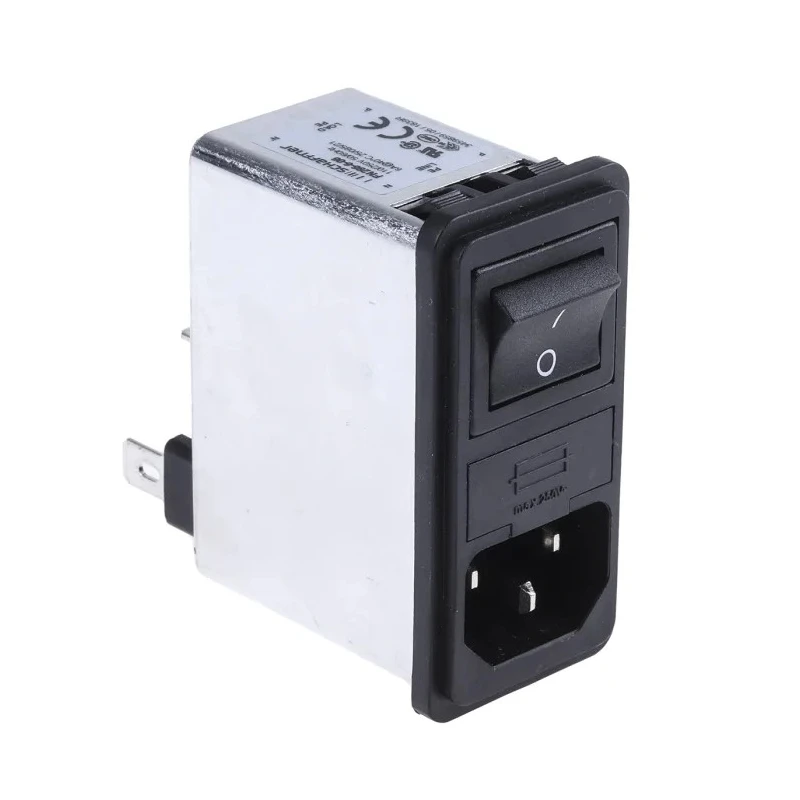

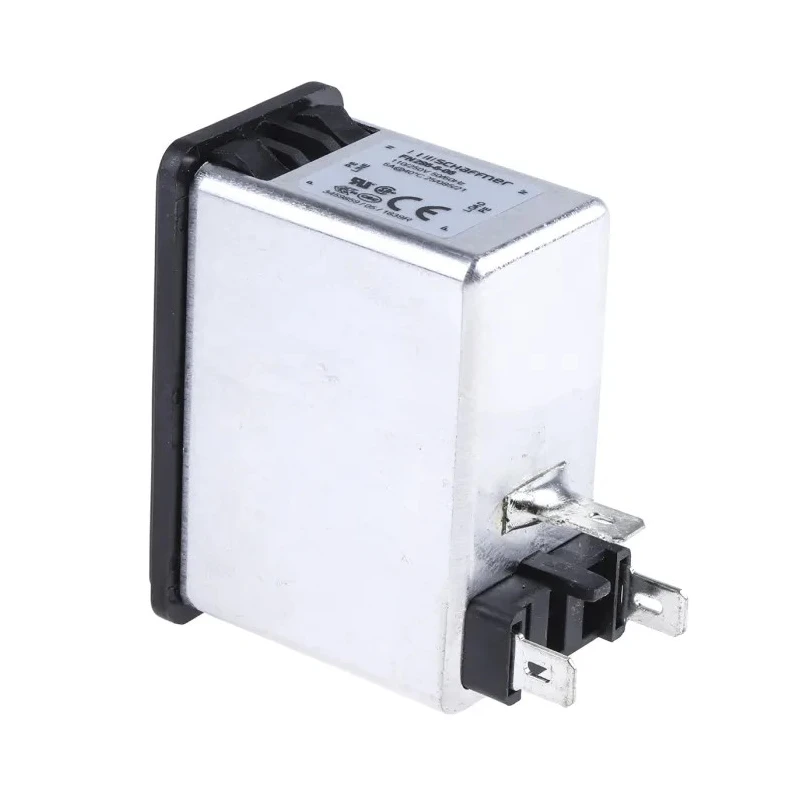

Schaffner FN286-6-06 is a snap-in IEC power entry module filter designed for industrial and electronic equipment operating at 250V AC and 6 amps. This compact module integrates a 2 pole rocker switch, male IEC C14 connector, and dual fuse holder supporting two 5 x 20 mm fuses (not included). Its faston termination ensures secure, quick connections, ideal for applications requiring reliable power entry and EMI suppression.

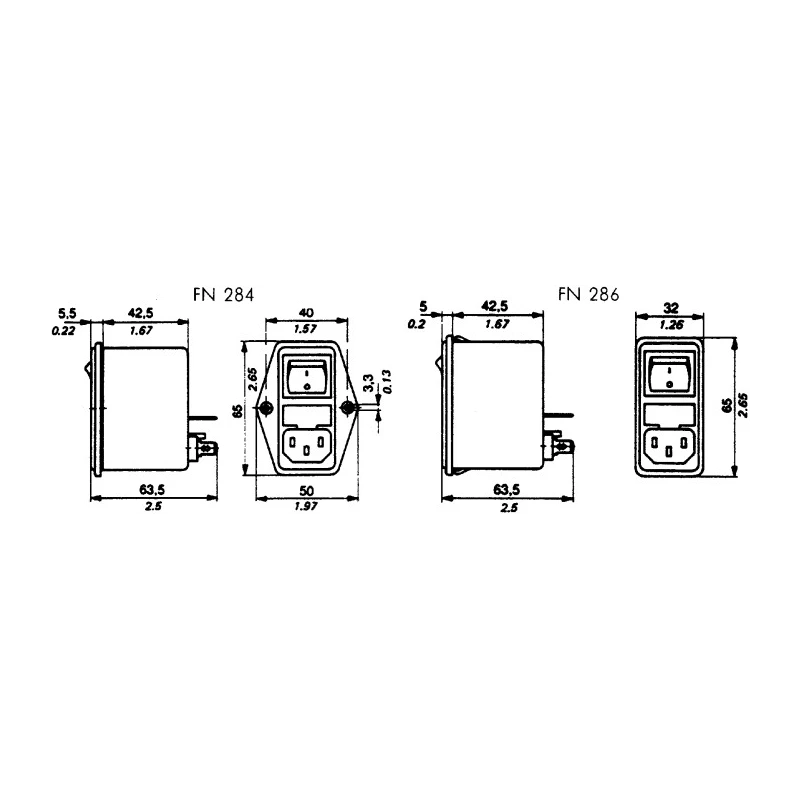

The filter dimensions measure 65 mm in height, 32 mm in width, and 65.3 mm in depth, making it suitable for space-constrained installations. It operates over a broad temperature range from -25°C to 85°C and is effective across frequencies from 50 to 400 Hz, providing excellent attenuation of conducted noise emissions and high saturation resistance. The mechanical life expectancy exceeds 50,000 cycles, ensuring durable performance in demanding environments.

Typical use cases include medical devices, test and measurement equipment, consumer electronics, portable electrical and electronic instruments, and switch-mode power supplies. Schaffner's FN280 series, including this model, is valued for passing EMI system approvals quickly with standard filter and safety options.

The filter’s snap-in mounting and compact design facilitate easy integration into panels and enclosures. It is manufactured in Thailand under stringent quality controls to maintain consistent electrical performance and mechanical reliability.

This IEC filter features a robust snap-in mount type for easy installation. Designed with a 2 pole rocker switch and male C14 connector with faston contacts. Includes two 5 x 20 mm fuses (not included) for reliable circuit protection.

Compact dimensions of 65mm height, 32mm width, and 65.3mm depth optimize panel space. Operates efficiently over a temperature range of -25°C to 85°C and frequencies from 50/60 Hz up to 400 Hz. Offers excellent EMI filtering performance with high saturation resistance.

Widely used in medical, test and measurement, consumer goods, and portable electrical equipment. Manufactured in Thailand ensuring consistent quality and durability. Explore Schaffner filters and power entry modules in EnvMart’s Electronics Components category for reliable EMI filtering solutions.
